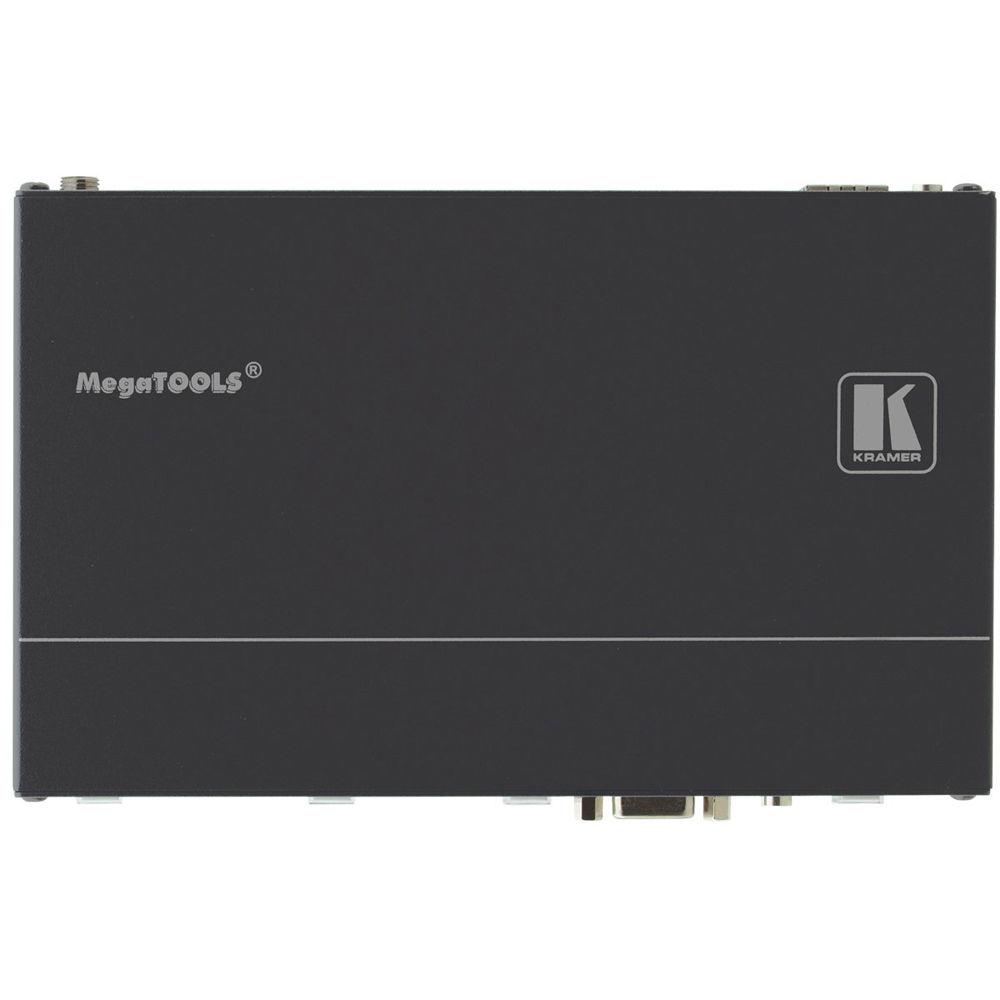

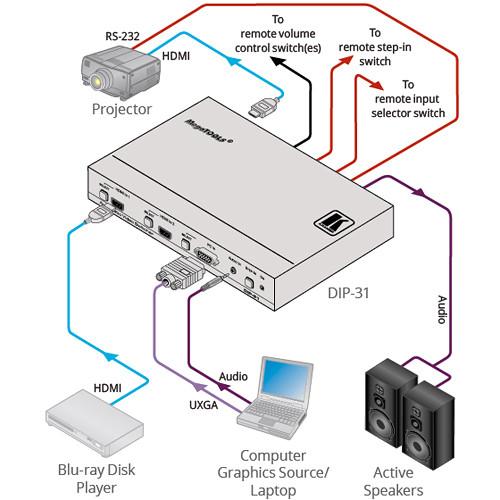

Product description The DIP-31 Automatic Video Switcher from Kramer is 4K UHD automatic switcher for HDMI, VGA, Ethernet, data, and unbalanced audio signals. The unit supports resolutions up to 4K at 60 Hz (4:2:0) UHD. It also supports various modes of input selection and transmits the signal via HDMI cable to a compatible receiver. DIP-31 is a step-in commander when connected to a matrix switcher that supports step−in over HDMI, such as the VS-62H. -
- 4K UHD and WUXGA resolution support
- Maximum data rate of up to 10.2 Gbps (3.4 Gbps per graphic channel)
- HDTV support
- HDCP compliancy, works with sources that support HDCP repeater mode
- HDMI with deep color, x.v.Color, and 3D
- I-EDIDPro Kramer Intelligent EDID Processing
- Plug-and-play operation for HDMI systems
- Automatic live input detection based on video clock presence
- Automatic input selection based on priority selection or last connected input
- Manual input selection
- Step-in control when connected to a device that provides step-in support
- Automatic analog audio detection and embedding
- Control via Kramer Protocol 3000 and embedded Web pages over a LAN
- Lockable EDID
- Remote control via contact-closure switches
- Equalization and re-clocking of the data
- Support for digital audio formats
- RS-232 data port for controlling external devices
In the Box Kramer DIP-31 Automatic Video Switcher DisplayPort Male to HDMI Female Adapter Cable (1 ft) Power Adapter Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer DIP-31 Automatic Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

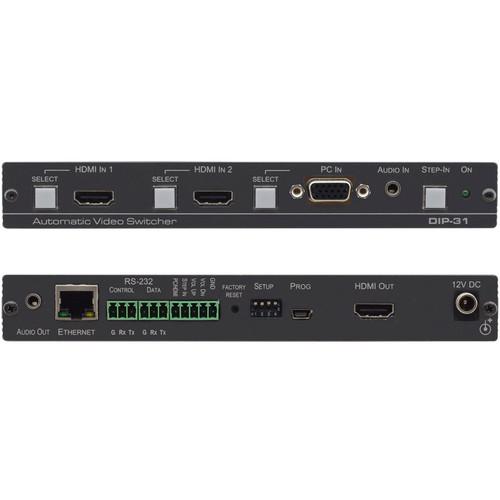

Technical parametersKramer DIP-31 Specs | Video In | 2 x HDMI
1 x VGA | | Audio In | 1 x 1/8" (3.5 mm) Unbalanced stereo audio 1 V RMS (nominal) | | Video Out | 1 x HDMI | | Audio Out | 1 x 1/8" (3.5 mm) Unbalanced stereo audio 1 V RMS (nominal) | | Ports | 1 x RJ45 Ethernet r
1 x RS-232 3-pin terminal block control port
1 x RS-232 3-pin terminal block data port
1 x mini-USB | | Controls | Remote switches for input switching, step-in, volume control, and device reset switch | | Standards | HDMI with Deep Color, x.v.Color and 3D
HDCP works with sources that support HDCP repeater mode | | Maximum Analog | 3.1 V p-p | | THD | 0.013% | | SNR | 75 dB | | Supported Web Browsers | Windows 7 and higher:
Internet Explorer (32/64 bit) version 11
Firefox version 30
Chrome version 35
MAC:
Chrome version 35
Firefox version 27
Safari version 7
Android OS:
Chrome version 35
iOS:
Chrome version 35
Safari version 7 | | Power Consumption | 12 VDC, 600 mA | | Operating Temperature | 32 to 104°F (0° to 40°C) | | Storage Temperature | -40 to 158°F (-40 to +70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Cooling | Convection | | Enclosure Type | Aluminum | | Dimensions | 7.38 x 4.53 x 1.0" (18.75 x 11.5 x 2.54 cm) | | Weight | 0.95 lb (0.43 kg) approximately | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 13.75 x 7.15 x 2.2" |
