User Manual for Kramer Dual Link Detachable DVI Optical Transmitter and Receiver Kit Click to enlarge the picture
Contents of the user manual for the Kramer Dual Link Detachable DVI Optical
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
 |
User manual for the Kramer Dual Link Detachable DVI Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

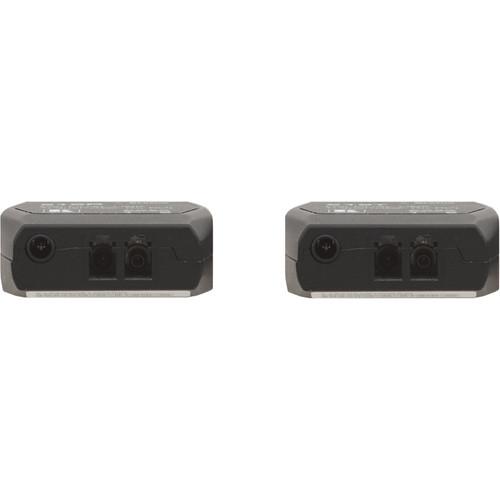

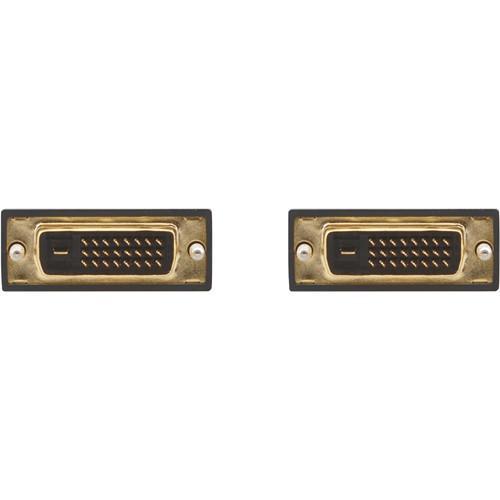

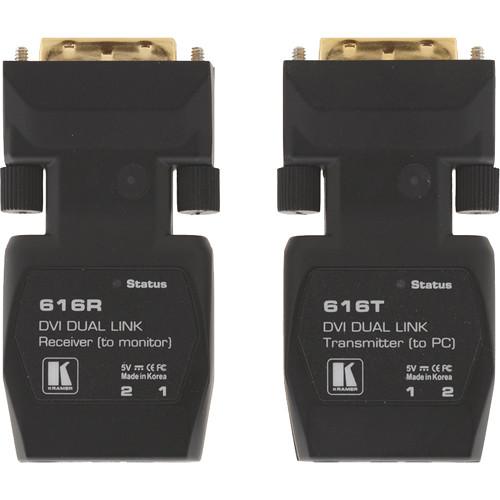

Product description The Dual Link Detachable DVI Optical Transmitter and Receiver Kit from Kramer consists of the 616T transmitter and 616R receiver detachable optic transmitter units. The 616T transmits uncompressed resolutions of up to 2560 x 1600 or 3840 x 2400 over dual link DVI to a range of up to 1640' away using duplex multimode fiber optic cable with two LC connectors. The 616T converts dual link DVI signals to optical signals that it transmits to the 616R. The 616R decodes the optical signals back to a dual link DVI signal. - 13.5 Gb/s (2.25 Gb/s per graphic channel) maximum data rate
- Maximum resolution up to HDTV: 480p, 720p, 1080p; Vesa: VGA to WQUXGA @ 33Hz (XGA not supported)
- HDTV compatible, non-HDCP compliant
- Up to 1,640' (multimode) system range
- Standards Compliance: Supports DVI1.0, fully implemented by fiber optic communication and DDC2B by virtual DDC; Class A digital device, pursuant to part 15 and 2 of FCC and CE
- EDID Capture: Copies and stores the EDID from a display device (614T)
- EMI / RFI free for connected cables
- Duplex multimode fiber optic cable with two LC connectors
- External power adapters (included) or 5VDC from source (auto detect)
In the Box Kramer Dual Link Detachable DVI Optical Transmitter and Receiver Kit 2 x 5VDC/1A Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Dual Link Detachable DVI Optical Transmitter and Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 616R/T Specs | Connectors | Transmitter:
1 x DVI, input
1 x multimode fiber optic with SC connector, output
1 x barrel power
Receiver:
1 x DVI, output
1 x multimode fiber optic with SC connector, input
1 x barrel power | | Maximum Data Rate | 13.5 Gb/s (2.25 Gb/s per graphic channel
Up to WUXGA, 2K or 1080p @ 36-bit color depth (does not support XGA) | | Maximum Range | 1,640' (500 m) for WQUXGA (3840 x 2400) @ 33 Hz refresh rate | | Power Source | Transmitter: 5 VDC, 430 mA maximum
Receiver:
350 mA maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 85%, RHL non-condensing | | Dimensions (W x D x H) | 1.54 x 2.76 x 0.57" (3.90 x 7.00 x 1.46 cm) | | Weight | Approximately 0.31 lb (0.14 kg) |
