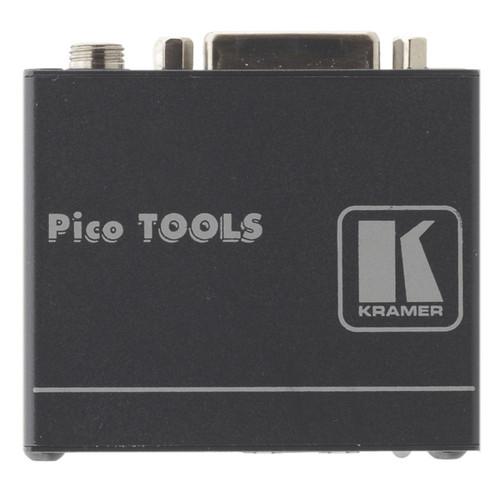

User Manual for Kramer DVI over Twisted Pair Receiver Click to enlarge the picture
Contents of the user manual for the Kramer DVI over Twisted Pair Receiver
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer DVI over Twisted Pair Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer DVI over Twisted Pair Receiver is used to receive DVI signals sent over a twisted pair cable. Supporting a maximum data rate of up to 1.65Gbps, the receiver accepts input signals up to UXGA resolutions. Converting the twisted pair signal back to DVI, the receiver offers a maximum range of up to 330’ (100m) for SXGA or up to 256’ (80m) for UXGA resolutions using the shielded BC-DGKat723 cable.
With EDID PassThru, the Twisted Pair Receiver passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display. The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270’ (90m) of each other. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor. - Receives DVI signals sent over a twisted pair cable
- Supports a maximum data rate of up to 1.65Gbps
- Supports input signals up to UXGA resolutions
- Converts the twisted pair signal to DVI
- Maximum range of up to 330' (100m) for SXGA or up to 256' (80m) for UXGA resolutions using the shielded BC-DGKat723 cable
- Passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display
- Requires a 12V DC power supply (included) for operation
- Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270' (90m) of each other
- 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
In the Box Kramer DVI over Twisted Pair Receiver Power Supply Mounting Bracket 7-year Limited Warranty User Manual PDF 1.3mbewyawqqzzwwvuavwrrsxdvytzduuurecbrads Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer DVI over Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PT-572HDCP+ Specs | Input | 1 RJ-45 connector | | Output | 1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector, DDC signal 5Vpp (TTL). | | Bandwidth | Supports up to 1.65Gbps | | Power Source | 12V DC, 250mA | | Dimensions (WxDxH) | 2.4 x 2.1 x 1" (6.2 x 5.2 x 2.4 cm) | | Weight | 0.3 lb (0.14 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.8 x 4.8 x 3.5" |
