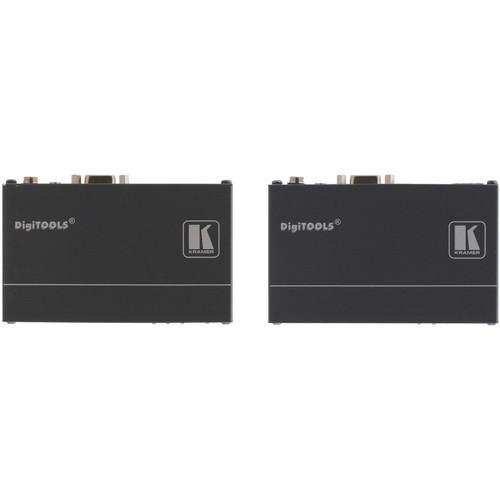

Product description This Kit includes the Kramer TP-580TXR Extended Range HDBaseT Transmitter and matching TP-580RXR Receiver. Route any 4K or 2K HDMI signal up to 430 ft, or any 1080p signal up to 590 ft, over a single twisted-pair cable, sold separately. At the same time route bidirectional RS-232 and IR control signals. The set also supports 3D pass-through, EDID pass-through, and HDCP compliance. - Kramer TP-580RXR Extended Range HDBaseT Twisted Pair Receiver The Kramer Electronics TP-580RXR Extended Range HDBaseT Twisted Pair Receiver for HDMI, bidirectional RS−232, and IR signals receives an HDBaseT twisted pair signal from the TP-580TXR (sold separately) and converts it back into HDMI, RS−232, and IR signals. It supports transmission of 2K and 4K video signals over a distance of up to 430 feet and 1080p up to 590 feet.
- Maximum data rate 10.2 Gb/s (3.4 Gb/s per graphic channel)
- HDMI supports deep color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS−HD, and CEC
- EDID pass-through passes EDID signals between the source and display
- Bidirectional RS-232 & IR interface commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit
- System range up to 430' (130m) Normal mode (2K / 4K); up to 590' (180m) Ultra mode (1080p @ 60Hz @ 24 bpp) when using BC−DGKat623 cables
- Cable for optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables (sold separately) 1
Please Note: The transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges close - Status LEDs for input, output, link and power
- Compact DigiTOOLS 3 units can be rack mounted side−by−side in a 1U rack space with the RK−3T universal rack adapter (sold separately)
- Kramer TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter The Kramer Electronics TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter for HDMI, bidirectional RS-232 and IR signals has inputs for HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580RXR receiver (sold separately). It supports transmission of 2K and 4K video signals over a distance of up to 430 feet and 1080p up to 590 feet.
- Maximum data rate 10.2 Gb/s (3.4 Gb/s per graphic channel)
- HDMI supports deep color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS−HD, and CEC
- EDID pass-through passes EDID signals between the source and display
- Bidirectional RS-232 & IR interface commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit
- System range up to 430' (130m) Normal mode (2K / 4K); up to 590' (180m) Ultra mode (1080p @ 60 Hz @24bpp) when using BC−DGKat623 cables.
- Cable for optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables (sold separately) 1
Please Note: The transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer Cat 5, Cat 6, and Cat 7 cables may not reach these ranges. close - Status LEDs for input, output, link and power
- Compact DigiTOOLS 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter (sold separately)
In the Box - TP-580RXR Extended Range HDBaseT Twisted Pair Receiver fewrqrwbyyaeytvwtbsftstcswsxzxqwy
- Power Supply
- Limited 7-Year Warranty
- TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Extended Range HDBaseT Twisted Pair Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Kramer TP-580RXR Extended Range HDBaseT Twisted Pair Receiver
| Input | 1 HDBaseT twisted pair RJ−45 connector | | Output | 1 HDMI connector | | Ports | 1 IR on a 3.5 mm mini jack, 1 RS−232 on a 9−pin D−sub connector | | Bandwidth | 10.2 Gb/s (3.4 Gb/s per graphic channel) | | Transmission Range | Normal Mode: 2K and 4K @ up to 430' (131m)
Ultra Mode: 1080p @ up to 590' (180m) | | RS-232 | Baud Rate: 115200 | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Consumption | 12 VDC, 380 mA | | Dimensions (W x D x H) | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 9.213 x 4.803 x 3.465" | - Kramer TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter
| Input | 1 HDMI connector | | Output | 1 HDBaseT twisted pair RJ−45 connector | | Ports | 1 IR on a 3.5 mm mini jack, 1 RS−232 on a 9−pin D−sub connector | | Bandwidth | 10.2 Gb/s (3.4 Gb/s per graphic channel) | | Transmission Range | Normal Mode: 2K and 4K @ up to 430' (130m)
Ultra Mode: 1080p @ up to 590' (180m) | | RS-232 | Baud Rate: 115200 | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Consumption | 12 VDC, 210 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (W x D x H) | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 9.2 x 4.8 x 3.3" |
