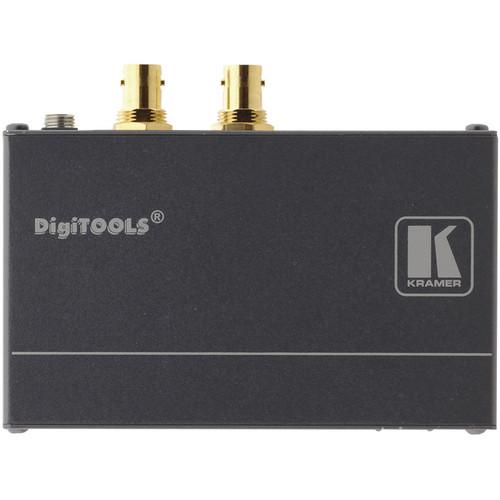

User Manual for Kramer FC-113 HDMI to 3G HD-SDI Format Converter Click to enlarge the picture
Contents of the user manual for the Kramer FC-113 HDMI to 3G HD-SDI
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
|
User manual for the Kramer FC-113 HDMI to 3G HD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The FC-113 HDMI to 3G HD-SDI Format Converter from Kramer is a video format converter which converts a single HDMI input signal to two identical 3G HD-SDI video signals with embedded audio, but does not perform frame rate or resolution conversion. The maximum data rate of the FC-113 is 3 Gb/s, which means it can perform single-cable 3G-SDI (SMPTE 424M) output on both BNC connectors. The device can also handle SDI (SMPTE 259M) and HD-SDI (SMPTE 292M) on both outputs.
Part of Kramer's DigiTOOLS line, the compact FC-113 fits into a third of a single rack unit on a standard 19" rack, which means that three similar-sized devices can be installed side-by-side using the optional RK-3T adapter (sold separately).
Two LED indicators denote the input signal type. The SD/HD LED illuminates green to indicate standard definition and blue to indicate high definition. The IN LED illuminates green to indicate an HDMI signal. - Maximum Data Rate of 3Gb/s
- No frame-rate or resolution conversion
- Three units can be rack mounted side by side in a 1RU rack space
In the Box Kramer FC-113 HDMI to 3G/HD-SDI Format Converter 5 VDC Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer FC-113 HDMI to 3G HD-SDI Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer FC-113 Specs | Input | 1 x HDMI | | Outputs | 2 x BNC, SD/HD/3G-SDI | | Power Input | 1 x DC barrel connector, 5 VDC | | Maximum Data Rate | 3 Gb/s | | Input Formats | 525i; 625i
1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i @ 50, 59.94, 60; 720p @ 50, 59.94, 60 | | Standard | HDMI | | LED Indicators | 1 x LED (green/blue): SDI/HD-SDI
1 x LED (green): power ON
1 x LED (green): IN | | Power Source | 5 VDC, 470 mA | | Dimensions | 1.0 x 4.7 x 2.8" (2.4 x 12.0 x 7.2 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.4" |
