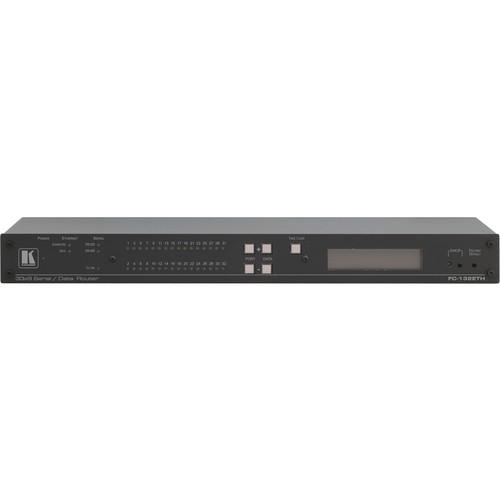

User Manual for Kramer FC-132ETH Advanced Serial Communication Matrix Click to enlarge the picture
Contents of the user manual for the Kramer FC-132ETH Advanced Serial Communication Matrix
- Product category: Networking Accessories Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Networking Accessories
|
User manual for the Kramer FC-132ETH Advanced Serial Communication Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The 1RU FC-132ETH Advanced Serial Communication Matrix from Kramer is an advanced converter for RS-232 serial control signals to and from the Ethernet. It has 33 RS-232 ports (one of them can be used as RS-485) to which serial data can be injected from eight RS-232 ports or from a configured ETH connection. Depending on the routing of the matrix, one-to-one bidirectional communication or one-to-many unidirectional communication is supported. The FC-132ETH is setup via easy-to-use, feature-loaded Web pages that are supported on all major browsers, making it possible to access it from mobile devices, PCs and MACs. - Ports - RS-232, RS-485, and Ethernet
- Companion Devices - Used as a data handling companion for the VS−1616D and VS−3232DN routers
- Baud Rates - All common baud rates up to 115200 are supported
- Communications - Unidirectional and bidirectional are supported, dependent on the routing state
- Built-In Web Page Server - For easy configuration
- Control - Front panel, RS−232, ETH, Web pages
- Suitable for conference room presentations and advertising applications
In the Box Kramer FC-132ETH Advanced Serial Communication Matrix (1 RU) Power Cord Rack Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer FC-132ETH Advanced Serial Communication Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer FC-132ETH Specs | Ports | 8 x 3−pin terminal block, RS−232 serial data
1 x RJ−45, Ethernet
1 x 3−pin terminal block, RS−232 control | | Data | 32 x 3−pin terminal block, RS−232 serial
1 x 3−pin terminal block, RS−232/RS−485 dual−use | | RS-232 | Communication: Transparent up to 115200 bps | | Supported Web Browsers | Microsoft IE V9.0 and higher, Google Chrome, Firefox V3.0 and higher | | Baudrate | Overall Device Baud Rate Support: 310 kbps | | Power Consumption | 100 - 240 VAC, 50/60 Hz, 17 VA | | Controls | Front panel buttons, RS−232, RS−485, Ethernet | | Operating Temperature | 32° to 104° F (0° to 40° C) | | Storage Temperature | -40° to 158° F (-40° to 70° C) | | Humidity | 10% to 90%, RHL non-condensing | | Dimensions | 19.00 x 7.24 x 1.75" (48.26 x 18.39 x 4.45 cm) | | Weight | 3.26 lb (1.48 kg) approx. | | | | Box Dimensions (LxWxH) | 55.0 x 27.6 x 10.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
