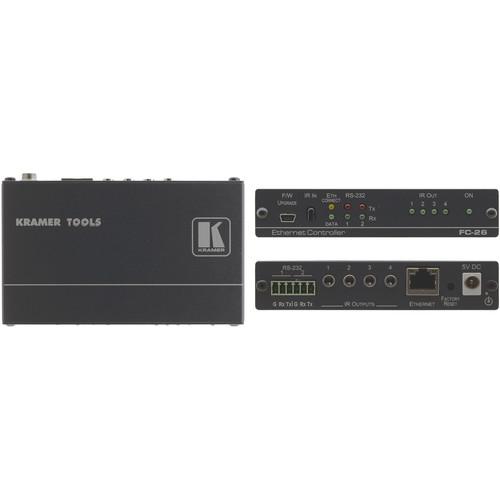

User Manual for Kramer FC-26 Ethernet to Serial Port and IR Controller Click to enlarge the picture
Contents of the user manual for the Kramer FC-26 Ethernet to Serial Port
- Product category: Serial RS-422/RS-232 Cards Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Serial RS-422/RS-232 Cards
|
User manual for the Kramer FC-26 Ethernet to Serial Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The FC−26 Ethernet to Serial Port and IR Controller from Kramer is a bidirectional RS-232 to Ethernet signal converter. It allows two RS-232 and four IR controllable devices to be controlled via an Ethernet or LAN connection. - Ports 2x RS-232, 1x Ethernet, 4x IR
- Simultaneous communication with up to 40 PC clients
- USB port for firmware upgrades
- Safety Regulatory Compliance: CE
- Complies with appropriate requirements of RoHs and WEEE
In the Box Kramer FC-26 Ethernet to Serial Port and IR Controller 3.5mm to Single IR Emitter Cable (10') rabryvedbcvxywtbrsyvx Power Adapter Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer FC-26 Ethernet to Serial Port and IR Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer FC-26 Specs | Outputs | 4 x IR on 3.5 mm mini jacks | | Ports | 2 RS-232 serial on 3-pin terminal blocks, 1 Ethernet RJ-45 connector, 1 mini USB connector for programming | | Supported Serial Port Baud Rates | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200 b/s | | RS-232 | Transparent up to 115200 b/s | | Range | IR Emitter Cable: 260' (79 m) | | IR Frequency Range | 20 kHz to 1.2 MHz | | Data | Maximum Data Handling: Up to 150 kb/s summed on all ports | | Supported Web Browsers | Windows 7 and Higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35
MAC: Chrome version 35, Firefox version 27, Safari version 7
Android OS: Chrome version 35
iOS: Chrome version 35, Safari version 7 | | Power Consumption | 5 VDC, 230 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Cooling | Convection | | Enclosure Type | Aluminum | | Dimensions (W x D x H) | 4.7 x 2.8 x 1" (12 x 7.2 x 2.4 cm) | | Weight | Approximately 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 7.15 x 2.44" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
