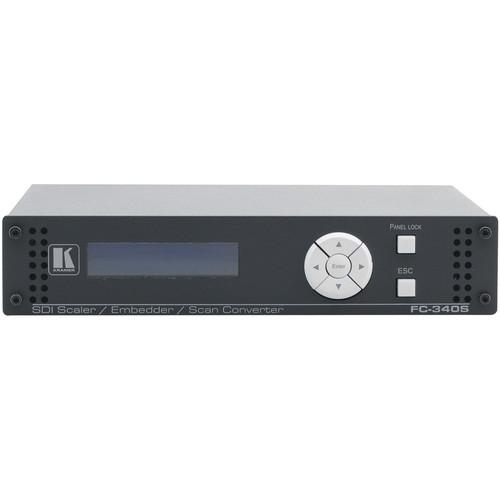

Product description The FC-340S 3G HD-SDI Scaler/Embedder/Scan Converter from Kramer is a broadcast-quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI. The unit inputs SDI and AES-3id signals and simultaneously outputs two SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES-3id and balanced stereo audio outputs. - Maximum Data Rate - 3 Gbps
- Multi-Standard Operation - SDI (SMPTE 259M), HD−SDI (SMPTE 292M), and 3G HD−SDI (SMPTE 424M)
- Kramer Equalization & Re-clocking Technology - Rebuilds the digital signal to travel longer distances
- Embedding Options - Selects embedded audio or embeds two independent audio groups
- Flexible Control Options - Front panel with 2-row LCD, Ethernet, & RS-232
- Compact Desktop - 2 units can be rack-mounted side-by-side in a 1U rack space with the optional RK-1 adapter
- Suitable for Broadcast and production studios
- Digital/analog AV authoring
In the Box Kramer FC-340S 3G HD-SDI Scaler/Embedder/Scan Converter Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer FC-340S 3G HD-SDI Scaler Embedder Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer FC-340S Specs | Digital Inputs | 1 x BNC 75 ohms, SD/HD/3G HD−SDI with loop
2 x BNC, AES−3id audio | | Digital Outputs | 2 x BNC 75 ohms, SD/HD/3G HD−SDI
2 x BNC, AES−3id audio | | Analog Outputs | 1 x BNC, PAL/NTSC composite video
2 x 5−pin terminal block, balanced stereo audio | | Maximum Digital Video Level | 48 kHz (digital audio) | | Bandwidth | 20 kHz (analog audio) | | Input Resolutions | 480i @ 59.94, 576i @ 50, 720p @ 59.94/60/50, 1080i @ 59.94/60/50, 1080p @ 29.97/30/23.98/24, 23.98sF/24sF, 59.94/60/50 | | Output Resolutions | 480i @ 59.94, 576i @ 50, 72p @ 59.94/60/50, 1080i @ 59.94/60/50 | | Video Standards | SDI (SMPTE 259M), HD−SDI (SMPTE 292M), and 3G HD−SDI (SMPTE 424M) | | Power Consumption | 12 VDC, 1 A | | Operating Temperature | 32° to 104° F (0° to 40° C) | | Storage Temperature | -40° to 158° F (-40° to 70° C) | | Humidity | 10% to 90%, RHL non−condensing | | Dimensions | 8.46 x 6.57 x 1.73" (21.49 x 16.69 x 4.39 cm) | | Weight | 3.53 lb (1.60 kg) approx. |
