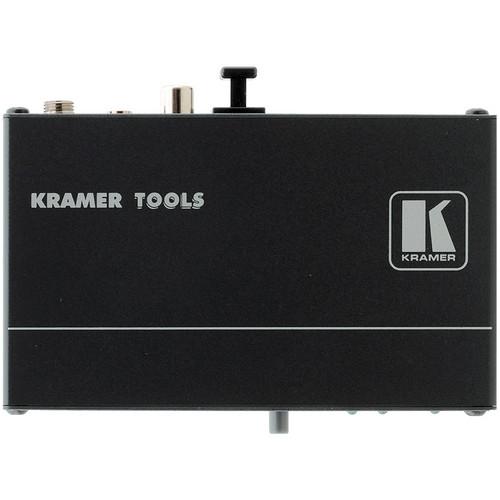

User Manual for Kramer FC-46XL HDMI Audio DeEmbedder Click to enlarge the picture
Contents of the user manual for the Kramer FC-46XL HDMI Audio DeEmbedder
- Product category: Embedders & De-Embedders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Embedders & De-Embedders
 |
User manual for the Kramer FC-46XL HDMI Audio DeEmbedder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

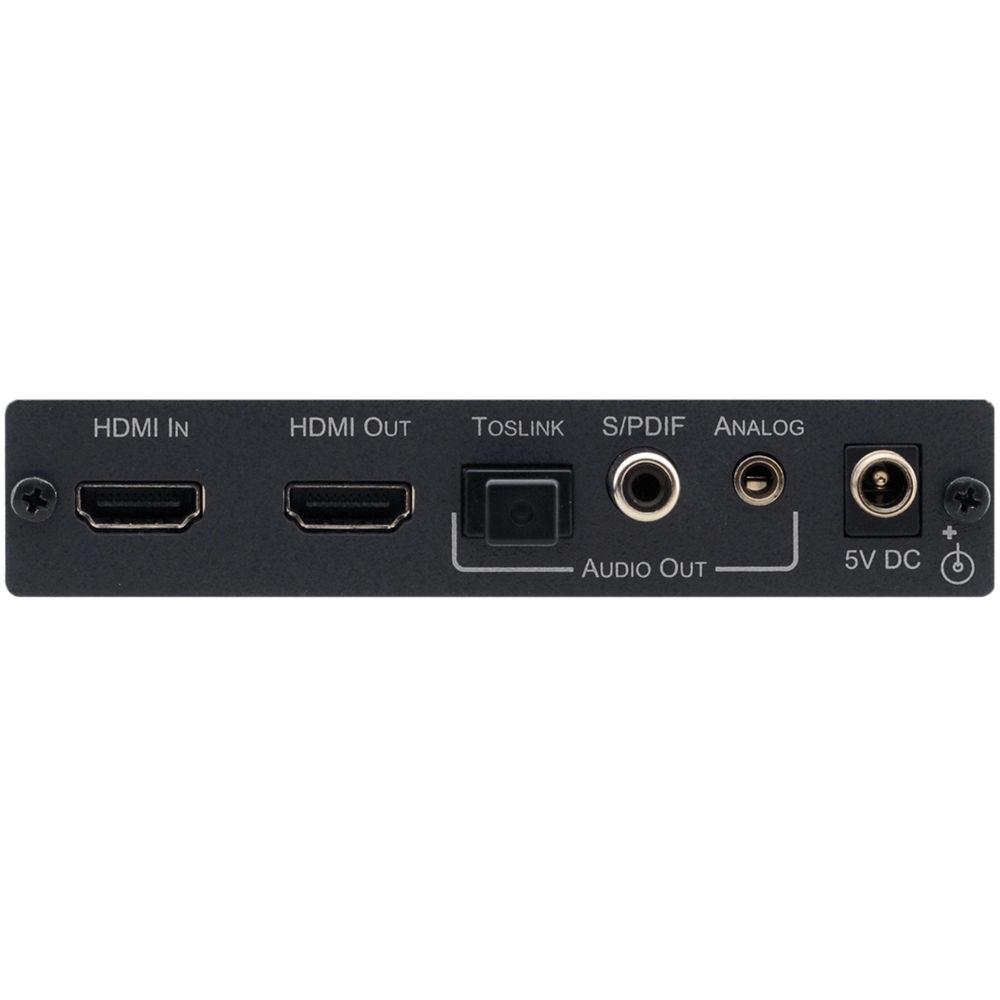

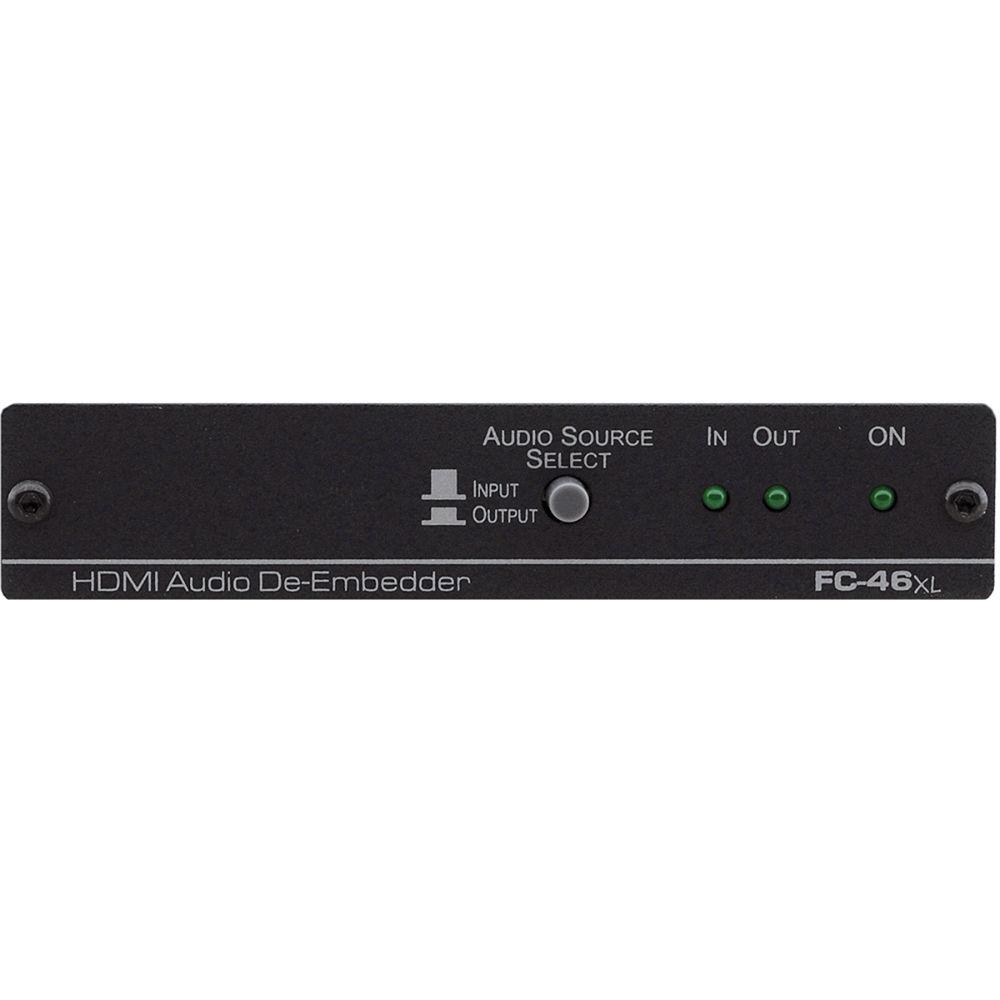

Product description The Kramer Electronics FC-46XL HDMI Audio De−Embedder de-embeds the audio signal from its HDMI input or from the HDMI output audio return channel and outputs the audio to S/PDIF, TOSLINK and stereo 3.5mm simultaneously. - I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures plug and play operation for HDMI systems
- HDMI Support: ARC and HDMI Uncompressed Audio Channels
- Auto Format Detection: Digital RGB or YPbPr.
- 3 units can be rack mounted side−by−side in a 1U rack space with the RK−3T rack adapter (sold separately).
In the Box Kramer FC-46XL HDMI Audio DeEmbedder Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer FC-46XL HDMI Audio DeEmbedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer FC?46xl Specs | Inputs | 1x HDMI connector | | Outputs | 1x HDMI connector
1x TOSLINK digital audio
1x S/PDIF digital audio on an RCA connector
1x 3.5mm unbalanced stereo analog audio | | Maximum Data Rate | Supports up to 6.75 Gb/s (2.25 Gb/s per graphic channel), 1080p @60Hz, 36−bit deep color | | Compliance With HDMI Standard | Supports HDMI and HDCP 1.4 | | Controls | Audio source select button | | Indicators | ON, Input, Output | | Power Consumption | 5 VDC, 600 mA | | Dimensions (W x D x H) | 4.90 x 2.80 x 0.94" (12.40 x 7.00 x 2.40 cm) | | Weight | 0.88 lb (0.4 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.4 x 4.9 x 3.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
