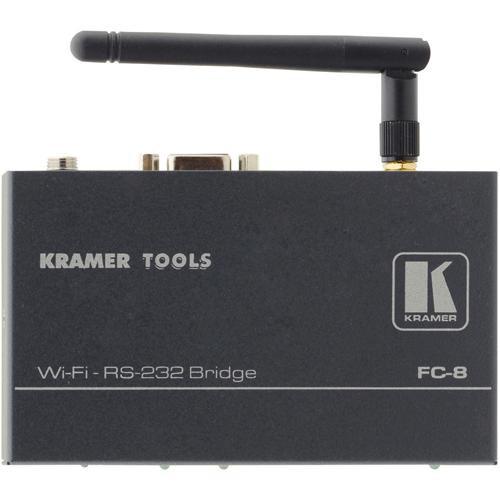

Product description The FC-8 RS-232 to Wireless LAN Controller from Kramer is a bi-directional RS-232 to 802.11b/g WiFi interface. It allows any RS-232 control device to be managed through a wireless LAN connection. - This unit offers an interface between RS-232 (9-pin D-sub) and 802.11b/g WiFi
- It supports multiple TCP/UDP sockets
- Standard encryption includes WEP, WPA and WPA2
- Remote control and IP Settings offer master & slave routing modes
- Its embedded web server serves web pages & applets

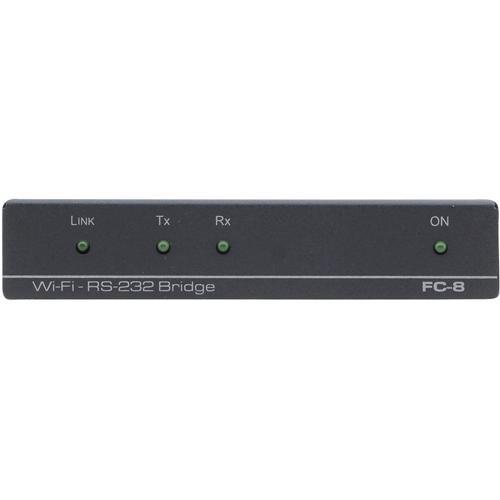

- LED indicators provide a visual reference for signal status
- The unit can be configured and managed via a web interface or Windows-based software
- This device belongs to the Compact Kramer TOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space using the separately available RK-3T Rack Adapter
In the Box Kramer FC-8 RS-232 to Wireless LAN Controller 12VDC Power Supply Antenna Null-Modem Adapter Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer FC-8 RS-232 to Wireless LAN Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

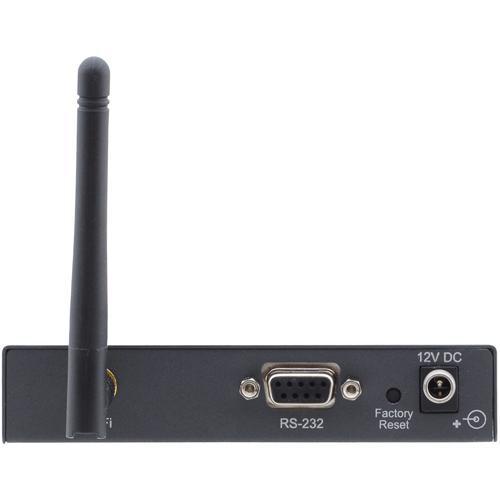

Technical parametersKramer FC-8 Specs | Inputs | RS-232 9-pin D-sub (female) connector | | Outputs | Antenna HW: Core CPU: 32-bit RISC ARM7TDMI, low-leakage, 0.13 micron, running at 48MHz | | Performance | Operating Voltage (input): 12VDC, 70mA, RoHS-compliant lead-free
Performance Specifications:
RS-232: Asynchronous character; binary; 7 or 8 data bits; odd, even, or no parity; 1 stop bit; Flow Control: Hardware (RTSH, CTSH) and software flow control
Standards Supported: IEEE 802.11b, IEEE 802.11g
Frequency: 2.412 to 2.462GHz
Channels: 11 channels
Transmit Power Levels: 802.11b: 17dBu, 802.11g: 17dBu
Receive Minimum Input Level Sensitivity:
11Mbps: -86dBu; 54Mbps: -72dBu
Internet Protocols: ARP, ICMP, IP, UDP, TCP, DHCP, DNS, NTP, SMTP
Security Protocols: WEP, WPA and WPA2
Protocols Accelerated in Hardware: AES, 3DES and SHA
Application Program Interface: Kramer configuration progra | | Power | 12VDC | | Dimensions (HxWxD) | 1 x 4.7 x 3" (2.5 x 12 x 7.5cm) | | Weight | 0.7 lbs (0.3kg) |
