User Manual for Kramer Field Assembly Shielded RJ-45 Connector for CAT Cable Click to enlarge the picture
Contents of the user manual for the Kramer Field Assembly Shielded RJ-45 Connector
- Product category: RJ45 Network & RJ11 Telecom Connectors Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer RJ45 Network & RJ11 Telecom Connectors
 |
User manual for the Kramer Field Assembly Shielded RJ-45 Connector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

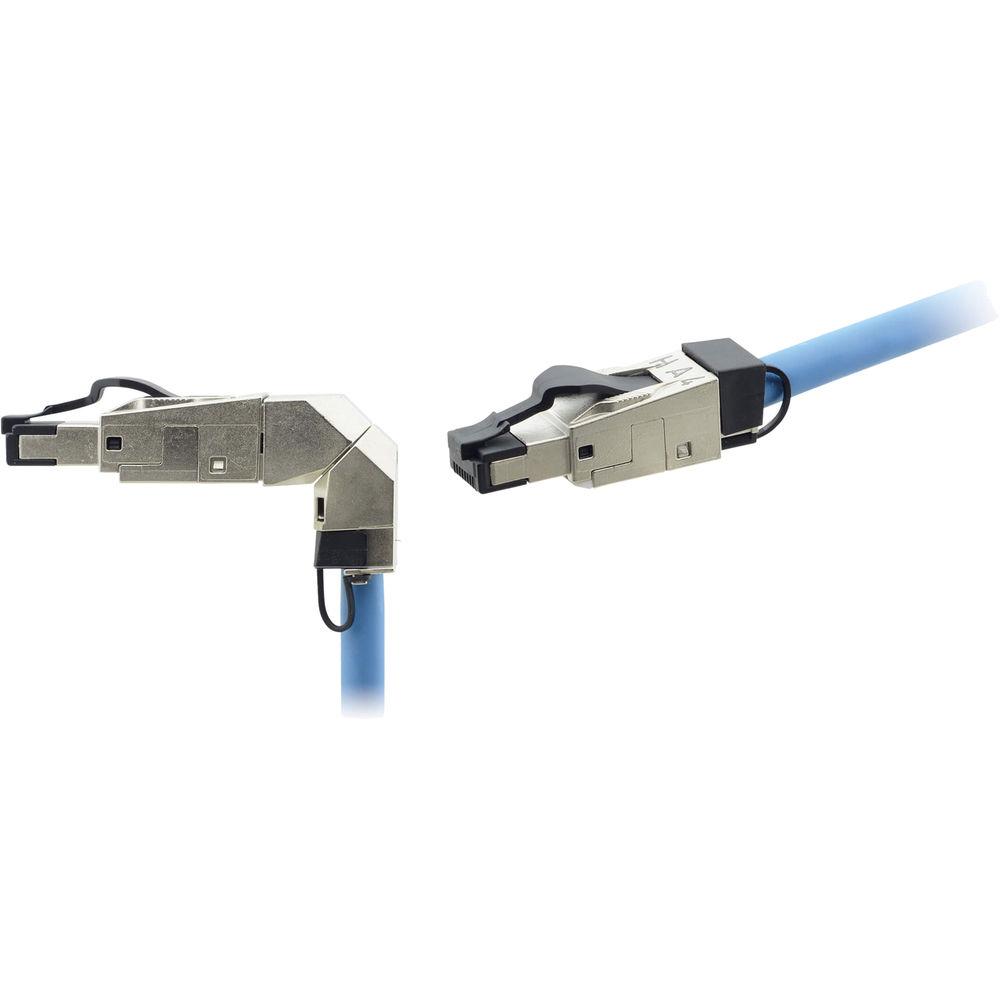

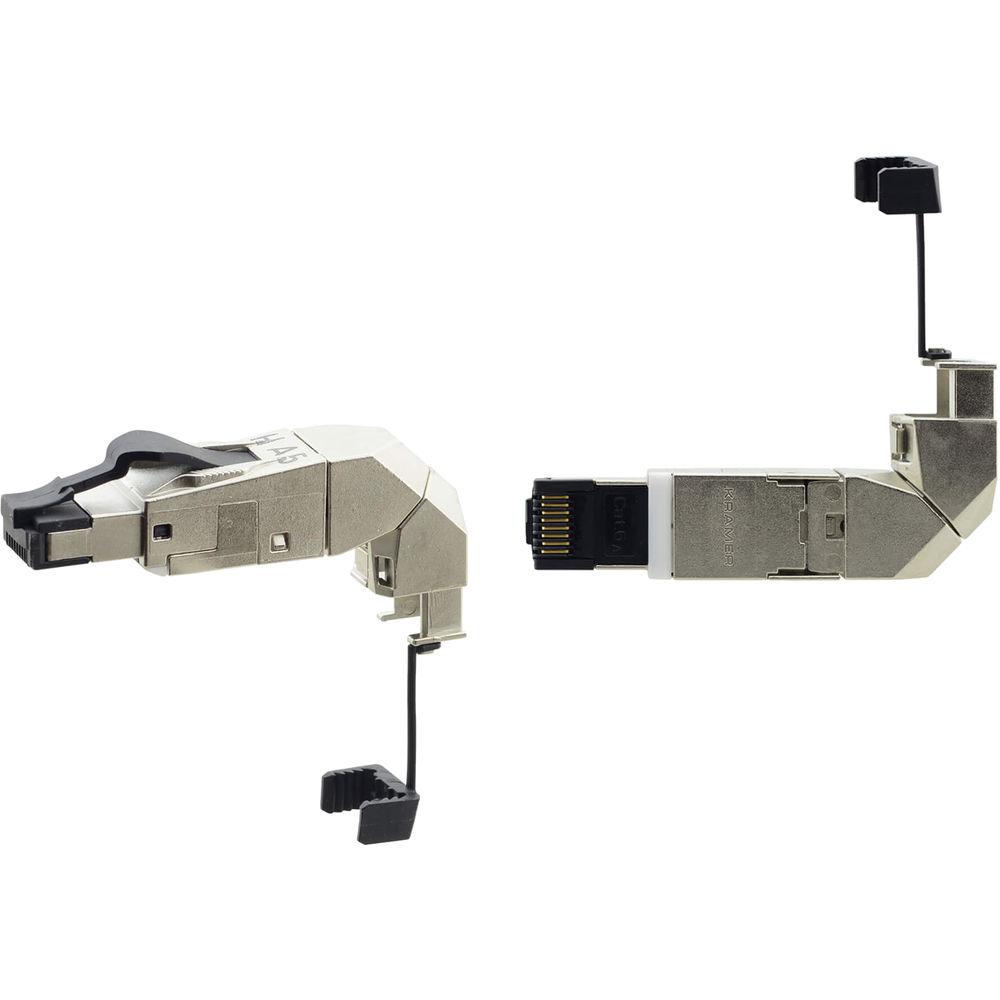

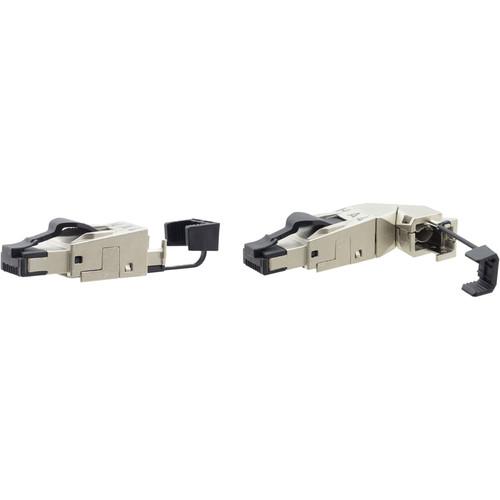

Product description With a zinc die-cast housing and compact design, the Field Assembly Shielded RJ-45 Connector for CAT Cable from Kramer can be used to easily terminate LAN cables without the need for a crimping tool. Additionally, this connector is suitable for CAT 6A cabling and supports both 10Gb Ethernet as well as PoE, PoE plus, and UPoE standards. - Robust zinc die-cast housing
- Multi-port capability while being fully shielded
- Strain relief snapped on directly to stuffer cap and protected catch requiring no crimping tool
- CAT 6A per ISO/IEC 11801 Ed.2.2:201106 transmission characteristics
- Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT
In the Box Kramer Field Assembly Shielded RJ-45 Connector for CAT Cable Limited 7-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Field Assembly Shielded RJ-45 Connector for CAT Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer CON-FIELD Specs | Shielding | Shielded | | Transmission Technology | Copper | | Color | Black | | Capabilities | Multi-port capable | | Access | Cable Access/Outlet
CONFIELD360: Variable, 8 positions, CONFIELD: 180° | | Category | TIA: 6A | | Class | ISO/IEC
EA | | Contacts | Contacts
CuSn (tinned bronze)
Contact Finish
Ni + Au (nickel gold) | | Latches | Plastic | | Building Platform | Office Buildings
ISO/IEC 11801 Ed. 2.2:201106; DIN EN 501732:201109; TIA/EIA 568C
Industrial Area
ISO/IEC 24702; DIN EN 501733:201109; TIA/EIA 1005
Living Units
ISO/IEC 15018; DIN EN 501734: 201109; TIA/EIA 570B | | CE | Compliant | | RoHS | Compliant | | PoE Compatibility | IEEE 802.3af
IEEE 802.3at | | UPoE Ready | Yes | | HDBaseT | Yes | | Transmission Rate | IEEE 802.3an (up to 10 Gbit) | | Termination | Termination Stranded Wire
Conductor Cross Section AWG: AWG 27/722/7
Conductor Cross Section: 0.004 x 0.013" / 0.111 x 0.355 mm2
Conductor Diameter: 0.018 x 0.030" / 0.457 x 0.762 mm | | Sheath | Cable Sheath Diameter
0.217 x 0.413" / 5.5 x 10.5 mm | | Electrical | Rated Voltage
50 V (max.)
Contact Resistance
65.6' / 20 m (max.)
Insulation Resistance
1,640.4' / 500 m (min.) | | Dielectric Strength | Conductor Shield
1500 VDC | | Mating Cycles | Life-Number of Mating Cycles
750 min. | | Strain Relief | Latching clip | | Temperature | Operating: 40 to 158°F / 40 to 70°C
Storage: 40 to 158°F / 40 to 70°C | | Dimensions | 1.960 x 0.543 x 0.650" / 49.8 x 13.8 x 16.5 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 1.3 x 1.0 x 0.6" |
