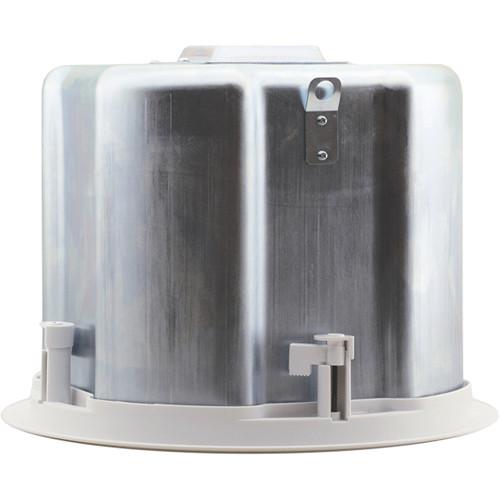

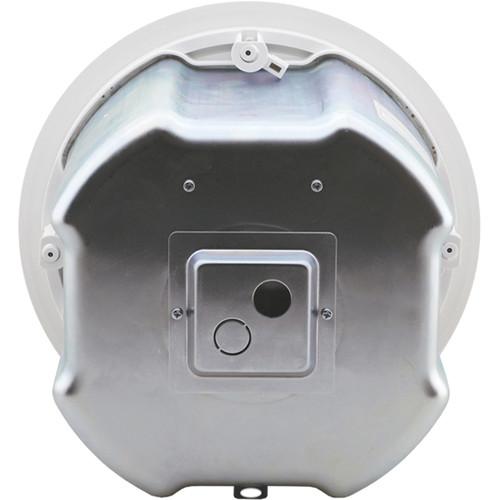

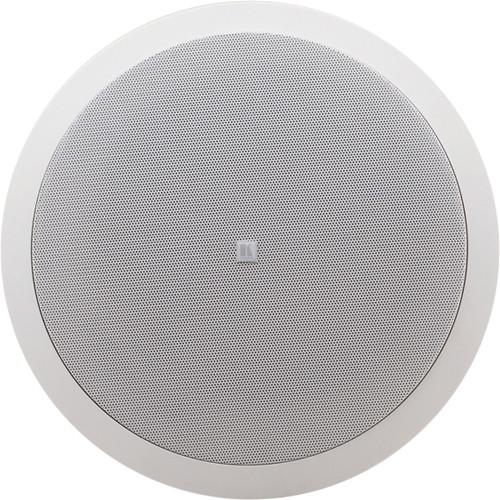

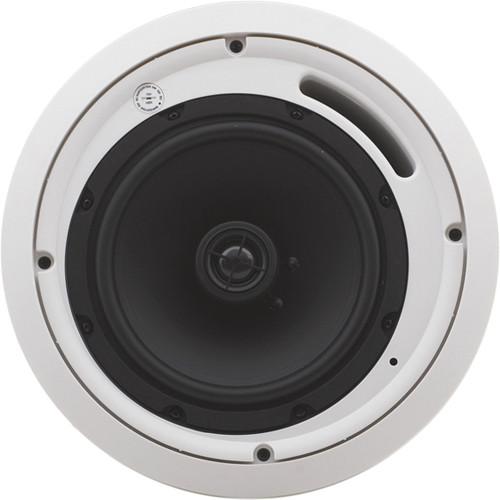

User Manual for Kramer Galil 8-C 8" 2-Way Closed-Back Compact Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Kramer Galil 8-C 8" 2-Way Closed-Back
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
 |
User manual for the Kramer Galil 8-C 8" 2-Way Closed-Back contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The pair of white Galil 8-C Closed−Back Compact Ceiling Speakers from Kramer is a 2-way, 8" coaxial ceiling speaker set, which features a 1" silk dome tweeter and a multi−tap power transformer. The user has the option of selecting between 8Ω usage (bypassing the transformer) and 70V/100V power settings that are suitable for an array installation. The package includes: 2 speakers (1 pair), accessories, including a ceiling mounting kit, a template, and the user manual. - Can be used in conference rooms, boardrooms, classrooms, hotels, restaurants
- UL 1480 and UL 2043 approved
- Ships with ceiling mounting kit
- Switchable between 8Ω usage (bypassing the transformer) and 70V/100V power settings
- Suitable for array installations
In the Box Kramer Galil 8-C 8" 2-Way Closed-Back Compact Ceiling Speaker (Pair,White) Installation Bracket Safety Cord Attached to Grille Ceiling Mounting Kit Template User Manual Limited 1-Year Warranty Guides & Manuals ccwxaadyrbze Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Galil 8-C 8" 2-Way Closed-Back Compact Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Galil 8-C 8" 2-Way Closed-Back Compact Ceiling Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKramer GALIL 8-C(W) Specs | Speaker Type | 2-Way, coaxial, closed-back | | Woofer | 8" (20.3 cm) polypropylene with rubber surround | | Tweeter | 1" silk dome (2.5 cm) | | Frequency Response | 65 Hz to 20 kHz @ −10 dB, 85 Hz to 20 kHz @ ±3 dB | | Sensitivity | 89 dB SPL, 1W@ 1m | | Maximum SPL | Continuous: 104 dB, peak: 107 dB | | Impedance | 8 ohms (transformer tap in off position) | | Transformer Taps | 70 V: 64 W /32 W /16 W /8 W /4W / Off (Lo−Z)
100 V : 64 W /32 W /16 W /8 W /Off (Lo-Z) | | Power Handling | 64 W RMS, 180 W continuous program | | Crossover Frequency | 6.3 kHz | | Coverage Angle | 110° | | Directivity Factor | 4.6 averaged 1 kHz to 10 kHz | | Directivity Index | 6.5 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal block | | Material of Construction | ABS bezel, aluminum grill, metal back can | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Storage Temperature | −40 to 158°F (−40 to +70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (Diam. x Depth) | 12" (30.5 cm) external, 8.9" (22.6 cm) mounting depth | | Cutout Diameter | 10.75" (27.3 cm) | | Speaker Weight | 10.8 lb (4.9 kg) (approximate, single speaker) |
