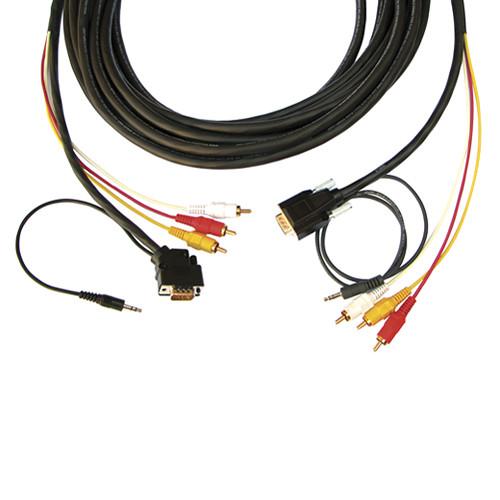

Product description Kramer's HD15 Male with 3.5mm Audio and 3 RCA Hydra to 45° HD15 Male with 3.5mm Audio and 3 RCA Hydra Plenum Cable is a 50' cable that offers high-performance and many features. The Hydra MH1 configuration is great for any application requiring a cost−effective one piece cable solution for the signals most often found in AV equipped rooms today.
Use the 15−pin HD, 3.5mm stereo, and 3 RCAs for any combination of VGA, video and audio signals. The mini connector may also support remote control in some cases. The RCAs are typically used for composite video and L/R audio, but can be used for analog component video.
This cable features slim connectors with a shallow depth profile and elegant molded connectors at one end where it is typically connected to a projector. At the other end, there is an extra shallow 45º VGA connector with removable metal shells, in order to provide many possible options for installation in tight quarters.
Note: For best results, keep plenum cable at room temperature for 24 hours before use. - Plenum Rating
- Constructed from CL2P and CMP rated cables
- Quality Construction
- Molded and back shell connectors
- Flexible Applications
- RGBHV signals are all assigned to coaxes so it's easy to cut and convert one end to 5 BNC in the field if needed, since the audio travels on an independent shielded pair.
- Companion Wall Plates
- Compatible with Kramer wall plates
In the Box Kramer HD15 Male with 3.5mm Audio and 3 RCA Hydra to 45° HD15 Male with 3.5mm Audio and 3 RCA Hydra Plenum Cable (50') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer HD15 Male with 3.5mm Audio and 3 RCA Hydra to 45° HD15 Male with 3.5mm Audio and 3 RCA Hydra Plenum Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer CP-MH1/MH1/XL-50 Specs | Attenuation | dB/100':
−3.6dB @50 MHz
−4.3dB @75 MHz
−5.1dB @100 MHz
−7.4dB @200 MHz
−11.8dB @400 MHz
−21.4dB @1000 MHz | | Wire Gauge | Coaxial: 26 AWG
Shielded Pair: 22 AWG | | Conductor | Coaxial: 7/34 tinned copper
Shielded Pair: 7/30 tinned copper | | Dielectric | Foam FEP | | Shielding | Coaxial:(A) 38 AWG tinned copper 95% spiral
(B) 100% aluminum Mylar foil
Shielded Pair: 100% aluminum/poly foil | | Jacket Material | Outer: lead-free Plenum rated PVC | | Diameter | Center Conductor: 0.01" (0.48 mm)
Dielectric: 0.07" (1.83 mm)
Individual Coaxial: 0.1" (2.59 mm)
Jacketed Pair: 0.1" (2.59 mm)
Overall: 0.37" (9.4 mm) | | Impedance | 75 Ω | | DC Resistance | Coaxial: 41 Ω/1000ft (134 Ω/km)
Shielded Pair: 15.3 Ω/1000ft (50.2 Ω/km) | | Capacitance | 16 pF/ft | | Velocity of Propagation | 83% | | Voltage | 150 V RMS | | Temperature | 21-167°F (-6-75°C) | | Regulatory | UL: CL2P
CSA: CMP, FT6
NEC: in accordance with article 725
RoHS: in compliance with European directive 2002/95/IEC, issue 13.2.2003 | | Connector 1 | HD15 Male
3.5mm Male
3 x RCA Male | | Connector 2 | 45° HD15 Male
3.5mm Male
3 x RCA Male | | Length | 50' (15.24 m) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 11.0 x 10.6 x 2.7" |
