User Manual for Kramer HDMI 2.0 4K 1x4 Distribution Amplifier with HDCP EDID Support Click to enlarge the picture
Contents of the user manual for the Kramer HDMI 2.0 4K 1x4 Distribution
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer HDMI 2.0 4K 1x4 Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

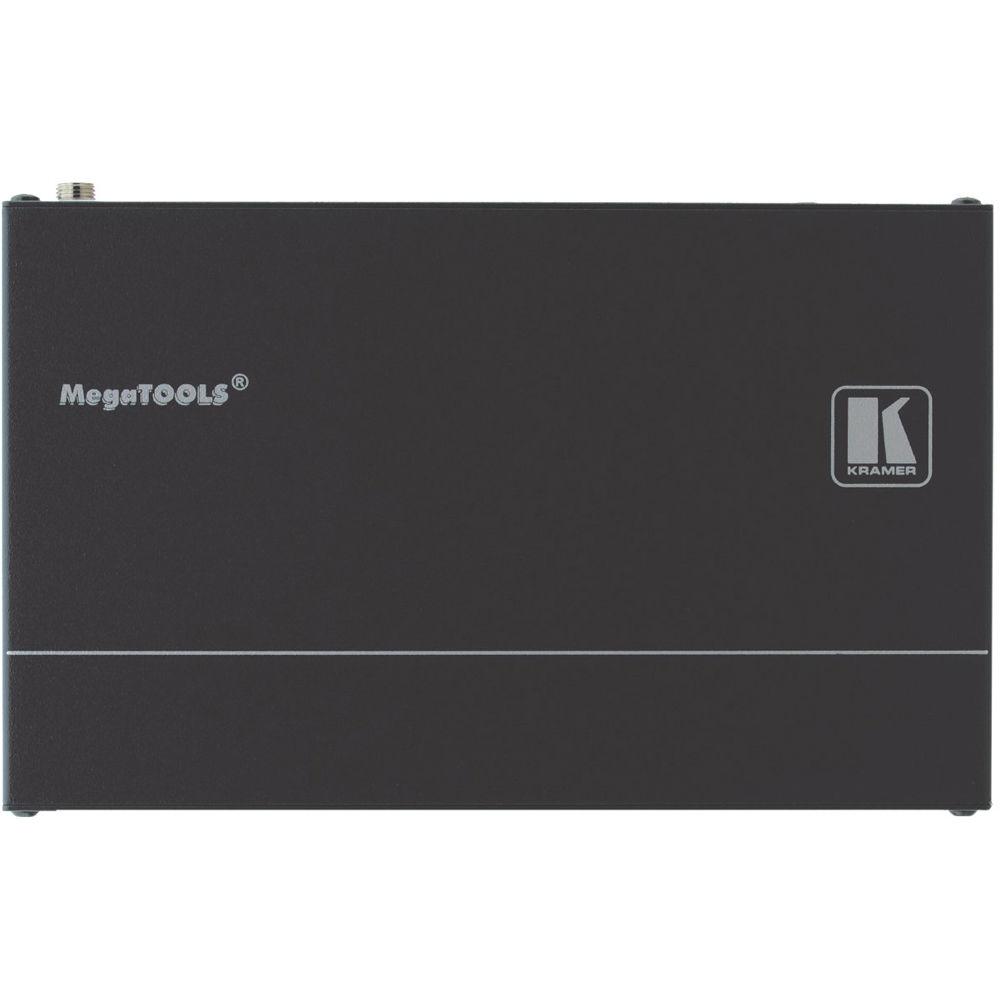

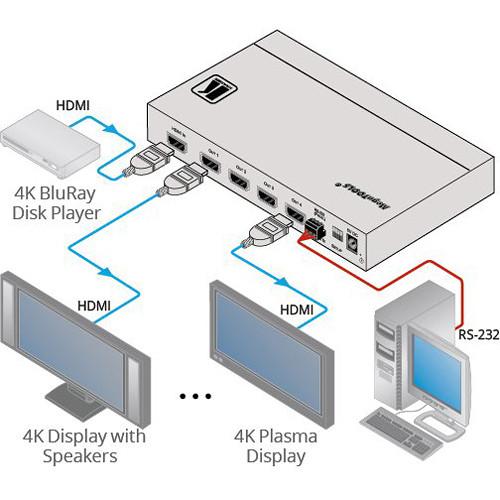

Product description Provided by third party: The VM-4H2 is a 1:4 distribution amplifier for up to 4K@60Hz (4:4:4) HDMI 2.0 signals, complying with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical outputs.
- Key Features
-
- HDMI signal transmission
- I - EDIDPro Kramer Intelligent EDID processing
- Kramer equalization & re - Klocking technology
- Force RGB
- Selectable HDCP authorization
- Field maintenance
- Easy installation
- HDMI signal transmission
- HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS - HD, CEC (OUT 1 only), 2K, 4K, and 3D.
- I - EDIDPro Kramer Intelligent EDID processing
- An intelligent EDID handling, locking, processing and pass - through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer equalization & re - Klocking technology
- Rebuilds the digital signal to travel longer distances.
- Force RGB
- When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
- Selectable HDCP authorization
- Allows the user to control the appearance of an HDCP or non - HDCP input to the source to permit delivery of protection - free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non - HDCP mode.
- Field maintenance
- RS - 232 connection for simple field firmware upgrade with Kramer K - Upload tool, easy EDID handling with Kramer EDID - Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
- Easy installation
- Compact Mega TOOLS fan - less enclosure for over - ceiling mounting, or side - by - side mounting of 2 units in a 1U rack space with the optional RK - T2B rack adapter.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer HDMI 2.0 4K 1x4 Distribution Amplifier with HDCP EDID Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-4H2 Specs | | | Device Type | Video/audio splitter - 4 ports | | Enclosure Type | Desktop 1U | | Subtype | HDMI | | Ports | 4 x HDMI | | Performance | Bandwidth: 17.82 Gbps | | Features | Firmware upgradable, HDTV Compatible, HDCP compliant, 4K resolution support, 3D Pass-Through, I-EDIDPro Kramer Intelligent EDID Processing, Kramer Equalization & re-Klocking Technology | | Compliant Standards | HDCP 2.2 | | Status Indicators | Port status | | | | Interfaces | 4 x HDMI output
1 x HDMI input
1 x serial (RS-232) terminal block | | | | Power Device | External power adapter | | | | Rack Mounting Kit | Optional | | | | Width | 7.4 in | | Depth | 4.5 in | | Height | 1 in | | Weight | 14.11 oz | | | | Min Operating Temperature | 32
