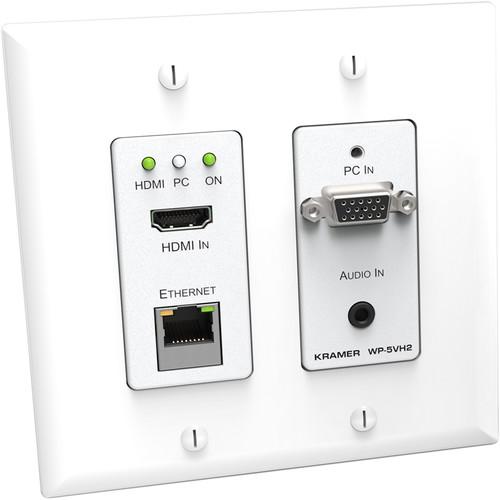

User Manual for Kramer HDMI & Computer Graphics with Ethernet, Bidirectional RS232 & Stereo Audio HDBaseT Wall Plate Transmitter Click to enlarge the picture
Contents of the user manual for the Kramer HDMI & Computer Graphics with
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer HDMI & Computer Graphics with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Provided by third party: The WP-5VH2 ultra HD HDBaseT active wall plate auto switcher is the first of its kind to offer 4K resolution with EDID management, HDMI, VGA, analog audio, and HDMI audio embedding and de-embedding. This product offers the versatility of a fully featured auto-switcher with the convenience and simplicity of a wall plate. The WP-5VH2 is easy to configure, can be powered remotely over Ethernet (PoE) and is designed for any size room.
- Key Features
-
- Automatic live input detection, based on video clock presence
- Automatic input selection, based on manual selection or last connected input
- Automatic analog audio detection & embedding
- Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- Kramer equalization & re-Klocking technology
- Rebuilds the digital signal to travel longer distances
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer HDMI & Computer Graphics with Ethernet, Bidirectional RS232 & Stereo Audio HDBaseT Wall Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-5VH2 Specs | | | Device Type | Video/audio extender | | Form Factor | In-wall mountable | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Data Transfer Rate | 10.2 Gbps | | Max Transfer Distance | 590 ft | | Features | HDTV Compatible, HDCP compliant, HDBaseT technology, 3D Pass-Through, I-EDIDPro Kramer Intelligent EDID Processing, Kramer Equalization & re-Klocking Technology | | | | Interfaces | 1 x HDMI (input)
1 x HDBaseT (output) - RJ-45
1 x VGA (input) - HD-15
1 x audio (input) - mini jack
1 x audio (output) - terminal block
1 x RS-232 - terminal block
1 x network - RJ-45 | | | | Compliant Standards | FCC Class A certified, VCCI, C-Tick, RoHS, KCC, WEEE, ICES | | | | Power Device | External power adapter | | | | Width | 4.5 in | | Depth | 1.5 in | | Height | 4.5 in | | Weight | 13.76 oz | | | | Service & Support | Limited warranty - 7 years | | | | Min Operating Temperature | 32
