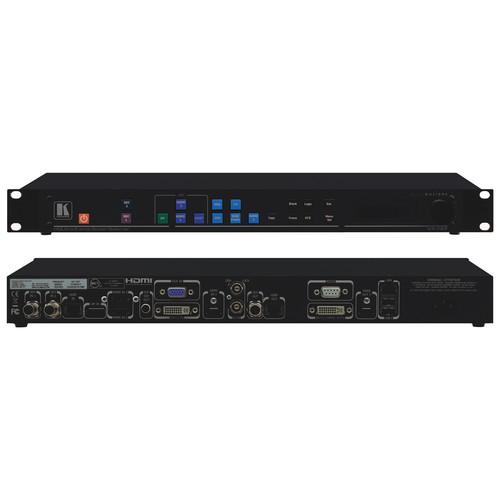

Product description The HQUltra 11-Input 4K60 4:2:0 HDBaseT and Legacy Presentation Switcher / Scaler from Kramer is a universal 4K @ 60 Hz (4:2:0) presentation scaler−switcher for HDMI, DisplayPort, HDBaseT, VGA, composite, DVI-U and 3G HD-SDI signals, and analog audio. The switcher comes with a genlock input for live events and professional broadcast installations. In addition, it also features built-in test patterns for easy projector setup. - Features
-
- Low-latency, 4K UHD scaling algorithms
- Typical 0.25 second input channel switching
- HDCP compliant
- Resolution support up to 4K @ 60 Hz (4:2:0) UHD
- Front panel jog-wheel and LCD display for easy set-up on the field
- Genlock input for live events and professional broadcast installations
- Color calibration for all source types including RGB controls, saturation, and hue
- Pan/tilt/zoom control
- Built-in test patterns for easy projector setup
- Supports customized video logo
- Flexible aspect ratio conversion
- Audio de-embed from 3G HD-SDI, HDMI, DisplayPort, and HDBaseT inputs to analog and S/PDIF and re-embed to 3G HD-SDI, HDMI, and HDBaseT outputs
- Up to eight unbalanced stereo inputs, two microphone inputs with phantom power, and an audio mixer
- Stereo audio power amplifier supporting 15W + 15W RMS loudspeaker outputs and separate stereo balanced line-level audio outputs for external amplifier systems
- Picture-in-Picture function
- Multiple outputs for local monitoring of live output feed
- Front panel buttons and jog-wheel with LCD
- RS-232
- Ethernet with built-in Web pages and via API
- USB connectors for upgrading firmware
- Applications
-
- Lecture halls
- Classrooms
- Corporate meeting spaces
- Medical and healthcare
- Houses of worship
- Hotel conference venues
- Live events
In the Box Kramer HQUltra 11-Input 4K60 4:2:0 HDBaseT and Legacy Presentation Switcher / Scaler Power Cord Rack Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer HQUltra 11-Input 4K60 4:2:0 HDBaseT and Legacy Presentation Switcher Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-797A Specs | Video Inputs | 1 x HDBT (RJ45)
1 x DisplayPort
2 x HDMI (4K UHD)
1 x HDMI (HD)
1 x DVI-U (DVI/HDMI and VGA/RGBS/YPbPr)
1 x VGA
1 x CV (RCA)
2 x 3G HD-SDI (BNC)
1 x Genlock sync | | Audio Inputs | 2 x 1/4" (6.3 mm) microphone jacks
1 x CV stereo RCA (R, L)
7 x 1/8" (3.5 mm) unbalanced stereo jacks | | Outputs | 1 x HDBT (RJ45)
1 x HDMI
1 x DVI/HDMI (DVI-I)
1 x 3G HD-SDI (BNC) | | Audio Outputs | Speaker on a 4-pin terminal block, line out on a 5-pin terminal block, S/PDIF on an RCA connector | | Ports | 1 x RS-232 (9-pin D-sub)
1 x LAN (RJ45)
2 x USB-A | | Component Video Input | 484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i @ 50, 59.94 and 60 Hz and 1080p @ 23.98, 24, 25, 29.97 and 30 Hz | | Signal Formats | 1280 x 720p
1920 x 1080i, 1920 x 1080psf, 1920 x 1080p
2048 x 1080p
3840 x 2160p
4096 x 2160p | | Output Resolutions | 640 x 480
800 x 600
1024 x 768
1280 x 768, 1280 x 800, 1280 x 1024
1400 x 1050
1600 x 1200
1920 x 1200
2024 x 1080
2560 x 1080, 2560 x 1440, 2560 x 1600
3860 x 2160
4096 x 2160 | | Frame Rate | 60, 59.94, 50, 48, 25, 24, 23.97 Hz, auto | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to +70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Power Consumption | 100 to 264 VAC, 50/60 Hz, 65 W | | Compliance | CE: 2004/108/EC electromagnetic compatibility directive, and 2006/95/EC low voltage directive
Compliance is to EN55022 class A | | Dimensions | 19 x 7.20 x 1.7" (43.6 x 18.30 x 4.36 cm) | | Weight | 6.0 lb (2.7 kg) approximately |
