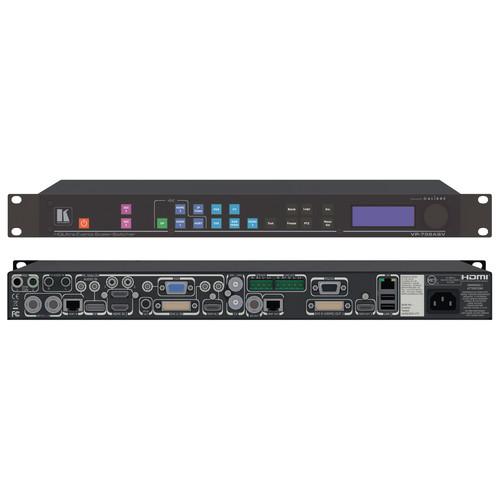

Product description The HQUltra 12-Input 4K HDBaseT and Legacy Presentation Switcher and Scaler from Kramer is a universal 4K presentation scaler-switcher for HDMI, DisplayPort, HDBaseT, VGA, composite, DVI-U, 3G HD-SDI, H.264 streaming input signals, and analog audio. Its HQUltraFast technology switches in typically a quarter of a second. - Features
-
- Kramers HQUltraFast switching technology for typical 0.25 second input channel switching
- H.264 1080p streaming video input via network port
- HDCP compliant
- Up to 4K @ 60 Hz (4:2:0) resolution, supports custom output resolutions
- Genlock input for live events and professional broadcast installations
- Front panel jog-wheel and LCD display for fast easy set-up in the field
- Color calibration for all source types including RGB controls, saturation, and hue
- Pan/tilt/zoom control
- LED video-wall scaling
- Built-in test patterns for easy projector setup
- Supports customized video logo
- Flexible aspect ratio conversion
- Audio de-embed from H.264 streaming, 3G HD-SDI, HDMI, DisplayPort, and HDBaseT inputs to analog and S/PDIF; re-embed to 3G HD-SDI, HDMI and HDBaseT outputs
- Up to eight unbalanced stereo inputs, two microphone inputs with phantom power and an audio mixer
- Stereo power amplifier supporting 15W+15W RMS loudspeaker outputs, separate stereo balanced line-level audio outputs for external amplifier systems
- Picture-in-picture mode
- Multiple outputs for local monitoring of live output feed
- Can be controlled via RS-232, over Ethernet with built-in Web pages, or via API
- USB connectors for firmware upgrading
- Applications
-
- Lecture halls
- Classrooms
- Corporate meeting spaces
- Houses of worship
- Hotel conference venues
- Medical and healthcare
- Live events
- Networked video
- LED videowalls
In the Box Kramer HQUltra 12-Input 4K HDBaseT and Legacy Presentation Switcher and Scaler 19" Rack Ears Power Cord Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer HQUltra 12-Input 4K HDBaseT and Legacy Presentation Switcher and Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-798ASV Specs | Video Inputs | 1 x HDBT (RJ45)
1 x DisplayPort
2 x HDMI (4K UHD)
1 x HDMI (HD)
1 x DVI-U (DVI/HDMI & VGA/RGBS/YPbPr)
1 x VGA
1 x CV (RCA)
2 x 3G HD-SDI (BNC)
1 x genlock sync
1 x H.264 1080p streaming video | | Audio Inputs | 2 x 1/4" (6.3 mm) mic in
1 x CV stereo on RCA (R, L)
7 x 1/8" (3.5 mm) Unbalanced stereo | | Outputs | 1 x HDBT (RJ45)
1 x HDMI
1 x DVI/HDMI
1 x 3G HD-SDI (BNC) | | Audio Outputs | Speaker on a 4-pin terminal block, line out on a 5-pin terminal block, S/PDIF on an RCA | | Ports | 1 x RS-232 (9-pin D-sub)
1 x LAN (RJ45)
2 x USB-A | | Component Video Input | 484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i @ 50, 59.94 and 60 Hz and 1080p @ 23.98, 24, 25, 29.97, and 30 Hz | | HDMI / DVI-D Input | SD:
625i (576i) and 525i (480i) in double-rate formats
ED: 480p, 576p
HD: 1280 x 720p, 1920 x 1080i, 1920 x 1080psf
1920 x 1080p 23.97, 24, 25, 29.94, 30, 50, 59.94, and 60 Hz
2048 x 1080p 23.97, 24, 25, 29.94, 30, 50, 59.94, and 60 Hz | | Output Resolutions | 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1920 x 1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024 x 1080, 2560 x 1080, 2560 x 1440, 2560 x 1600, 3860 x 2160, 4096 x 2160, custom resolutions | | Frame Rate | 60/59.94/50/48/25/24/23.97 Hz, auto | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Power Consumption | 100 to 264 VAC, 50/60 Hz, 65 W | | Dimensions | 19 x 7 x 1.7" (43.60 x 17.07 4.36 cm) | | Weight | 6.0 lb (2.7 kg) approximately |
