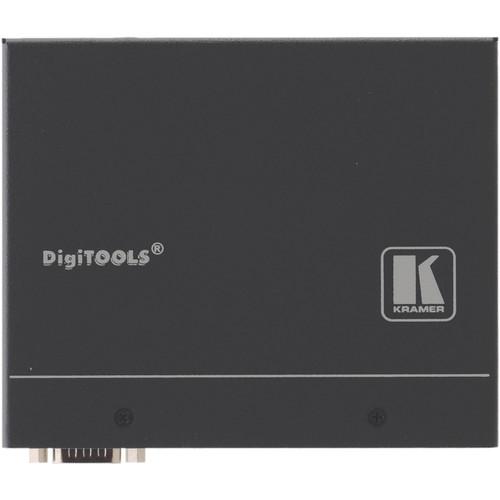

User Manual for Kramer KDS-DEC3 H.264 to HD HDMI Audio Video Decoder with RS-232 Port Click to enlarge the picture
Contents of the user manual for the Kramer KDS-DEC3 H.264 to HD HDMI
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
|
User manual for the Kramer KDS-DEC3 H.264 to HD HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The KDS-DEC3 H.264 Decoder from Kramer is an H.264 decoder for HDMI encoded signals up to 1080p60 at a maximum bitrate of 25 Mb/s. It is designed to work with the KDS-EN3 H.264 encoder to provide a high-quality and fully-featured end-to-end video and audio over IP solution. The decoder features one HDMI output, as well as an unbalanced stereo audio output, and an RS-232 control port. KDS-EN3 manager software allows remote management of the KDS-EN3 network, including auto-detection and discovery of KDS-EN3/KDS-DEC3 units on a sub-net. - Supports MPEG-4 AVC using H.264 & AAC codecs
- Scaling & cropping features for flexible display of source content on the decoder output
- 10/100/1000Mb standard Ethernet network operation
- Decoder-integrated network switch allows for KDS-DEC3 daisy chaining and network extension
- HDMI video support, and HDMI or analog audio support
- Unicast and multicast streaming support through RTSP (Real Time Streaming Protocol)
- Local downscale streaming
- Fail-safe video playback when a decoder loses connection to an encoder
- RS-232 virtualization from encoder to decoder
- Enable open software decoding through VLC player software (not included)
In the Box Kramer KDS-DEC3 H.264 to HD HDMI Audio/Video Decoder with RS-232 Port Power Supply Power Cord Set of Plastic Brackets Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer KDS-DEC3 H.264 to HD HDMI Audio Video Decoder with RS-232 Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer KDS-DEC3 Specs | Outputs | 1 x HDMI
1 x 3.5 mm mini phone jack, unbalanced audio | | Ports | 2 x RJ45, Ethernet fully switched
1 x 9-pin Sub-D, RS-232 | | Supported HD Resolution | Video Single Channel: Up to 1920 x 1080p60 and 1920 x 1200 (60 Hz) | | Output Resolutions | 1920×1200, 1920×1080, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, 640×480 | | Compression | H.264/MPEG-4 (AVC)
MPEG-4 AAC-LC, audio | | Supported Profiles | Baseline, Main, High | | Levels | Up to 4.2 | | Bit Rates | 100 kb/s to 25 Mb/s
96, 128, 192, and 256 Kb/s, analog | | Rate Control | CBR, VBR, adjustable GOP (Group Of Pictures) size | | Channels | 2 stereo, HDMI with digital L-PCM audio | | Sample Frequency | Analog: 32, 44.1, and 48 kHz | | Temperature | Operating: 32° to 104°F (0° to 40°C)
Storage: -40° to 158°F (-40° to 70°C) | | Humidity | 10 - 90%, RHL non-condensing | | Power Consumption | 5 VDC, 3 A maximum | | Dimensions | 5.04 x 1.02 x 4.29" (12.8 x 2.6 x 10.9 cm) | | Weight | 9.2 oz (260 g) | | | | Box Dimensions (LxWxH) | 23.2 x 13.6 x 10.0" |
