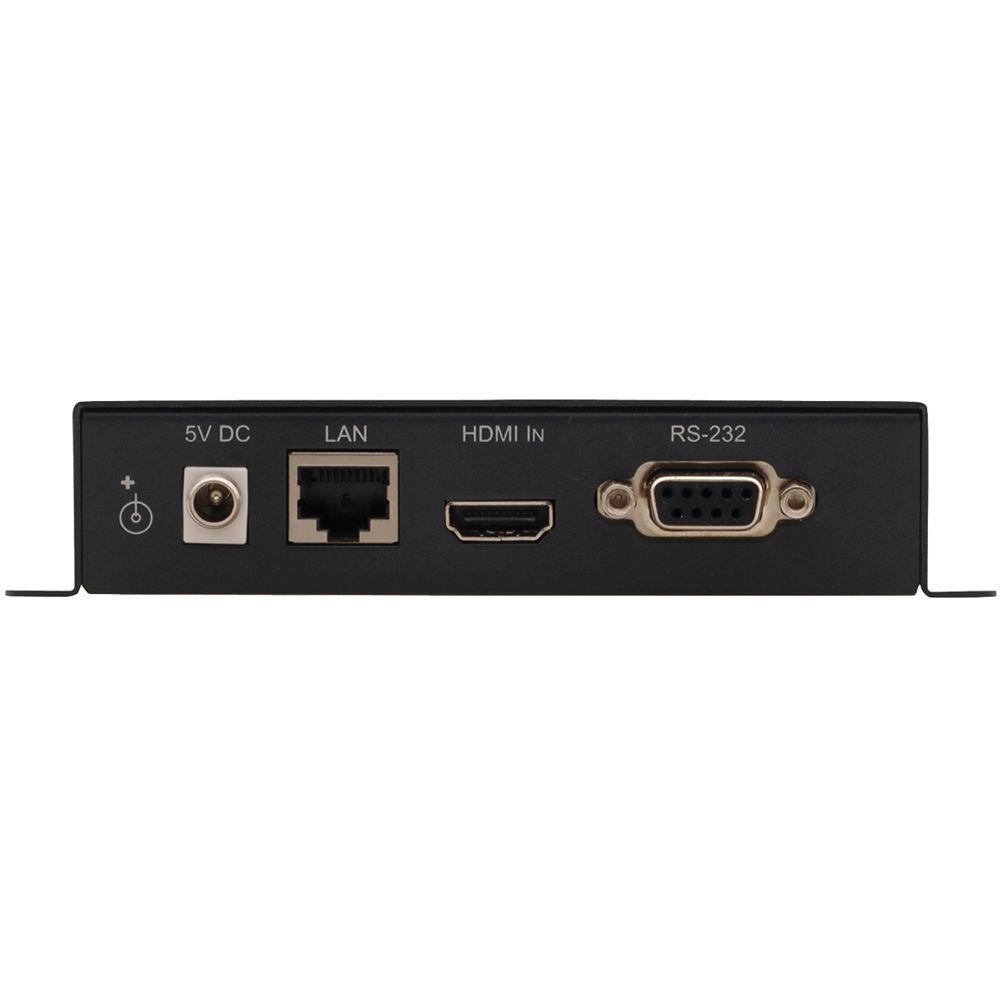

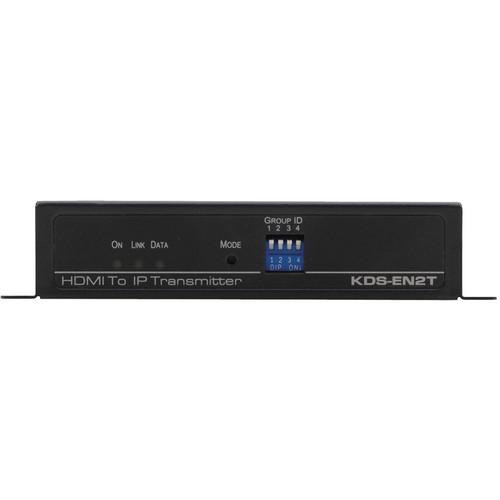

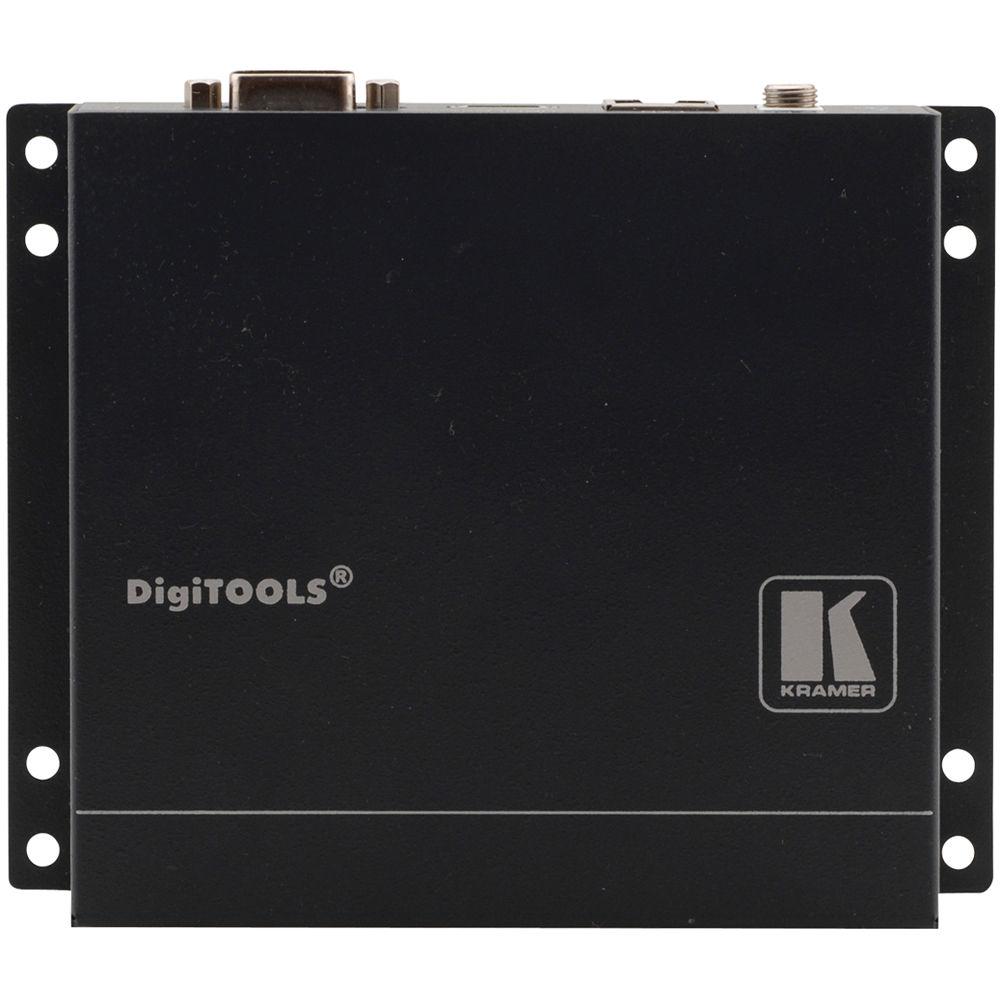

User Manual for Kramer KDS-EN2T HDMI to IP Transmitter Click to enlarge the picture
Contents of the user manual for the Kramer KDS-EN2T HDMI to IP Transmitter
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer KDS-EN2T HDMI to IP Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer KDS-EN2T HDMI to IP Transmitter along with the KDS-EN2R HDMI to IP Receiver (sold separately) creates an IP transmitter (host) and receiver (client) system for HDMI and bidirectional RS-232 signals. The KDS-EN2T encodes the input signals to an IP stream and the KDS-EN2R (sold separately) decodes it back to HDMI and RS-232 signals. The host-client system lets you simultaneously stream HD content to 1 or more HDMI accepters.This system can be used to distribute full HD digital content from multiple sources to more than 200 remote displays on a LAN without distance limitations from the 1080p source devices, while sustaining picture and sound quality. It is well-suited for digital signage, retail centers, leisure facilities, transportation hubs, educational facilities, and corporate environments. - Flexible and scalable HDMI 1080p video broadcasting with Gigabit Ethernet LAN and no distance limitations
- JPEG 2000 compression technology to send a visually lossless HD image and digital audio over IP
- Point-to-point, multicasting, and broadcasting architecture, with limited bandwidth load (each channel requires about 55 Mb/s)
- Up to 9 transmitters and eighty-one receivers that can be included in a video wall system
- HDMI signal transmissions over a CAT5e, CAT6, or CAT7 cable
- Group ID setup via DIP-switches or PC application
- Bidirectional RS-232 control pass-through to control HDMI display from the host (transmitter) side
- Multicasting groups with Gigabit Ethernet switch (requires IEEE 802.1Q, VLAN, and IGMP functions)
- System setup via the IP-HDMI PC application and the Web pages
- A compact DigiTOOLS enclosure with a built-in mounting plate for versatile installation 1
Please Note: The KDS-EN2T is not HDCP compliant and will not stream HDCP encrypted content and the screen will appear black. close In the Box Kramer KDS-EN2T HDMI to IP Transmitter 2 x Power Supply (5VDC) RS-232 Cable Limited 7-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer KDS-EN2T HDMI to IP Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer KDS-EN2T Specs | Input | 1 x HDMI connector | | Output | 1 x LAN connector | | Ports | Ethernet, RS-232 | | Maximum Resolution | 1080p | | Standards Compliance | HDMI | | Power Source | 5 VDC, 900 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 4.70 x 3.50 x 1.10" (11.94 x 8.89 x 2.79 cm) | | Weight | 1.76 lb (0.80 kg) approximately | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 9.2 x 5.6 x 3.9" |
