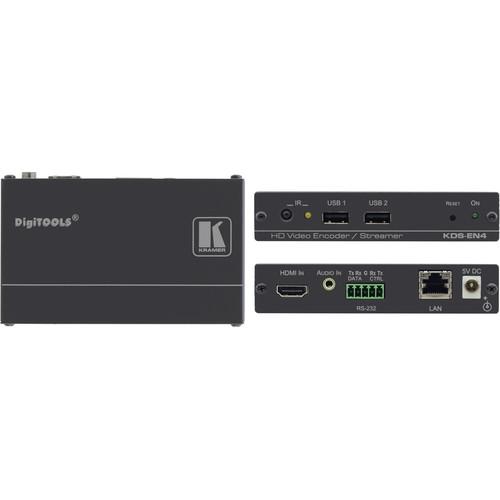

User Manual for Kramer KDS-EN4 H.264 Video Streamer & Encoder Click to enlarge the picture
Contents of the user manual for the Kramer KDS-EN4 H.264 Video Streamer &
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer KDS-EN4 H.264 Video Streamer & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The KDS-EN4 H.264 Video Streamer & Encoder from Kramer provides real-time 1920 x 1080 resolution video and audio over standard 100/1000 Mb/s network. The encoder includes AVC support for H.264/MPEG-4 and AAC codecs. It also offers open encoding that enables decoding through VLC player software and supports unicast streaming through RTSP (Real Time Streaming Protocol). - AVC support for H.264/MPEG-4 and AAC codecs
- Video support via HDMI 1080p60 (4:4:4) port
- Audio support via embedded HDMI and unbalanced stereo line in
- 10/100/1000 Mb/s Ethernet interface
- Unicast streaming through RTSP (Real Time Streaming Protocol)
- Managed via Open API, Kramer Network AV services, or Web UI
- Open encoding enables software decoding through VLC player software
- Up to three units can be mounted side-by-side in a 1 RU rack space using an optional RK-3T rack adapter
- Applications
- AV distribution systems with one or more sources and multiple displays in schools, universities, and public venues
Long-distance transmission of signals using existing wires and infrastructure in corporate offices, and government applications In the Box Kramer KDS-EN4 H.264 Video Streamer & Encoder Power Supply Power Cord Plastic Bracket Set Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer KDS-EN4 H.264 Video Streamer & Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer KDS-EN4 Specs | Inputs | 1 x HDMI
1 x unbalanced stereo audio on a 3.5 mm mini jack (line in) | | Ports | 1 x RJ45 Ethernet connector | | Resolutions | 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, and 640 x 480 | | Unicast Users | Maximum: 8 | | Video Channels | 1 channel, up to 1920 x 1080p 60 (4:4:4), 720p 60 | | Video Compression Format | H.264 Baseline, Main, High / MPEG-4 Part 10 (AVC) | | Video Level | Up to 4.2 | | Video Bit Rates | 100 kb/s to 25 Mb/s | | Bit Rate Control | CBR | | Audio Channels | 2 stereo channels, HDMI with digital L-PCM audio | | Audio Compression Format | MPEG-4 AAC-LC | | Audio Bit Rates | 128 kb/s | | Sample Frequency | Analog Audio: 32, 44.1, and 48 kHz | | Power Consumption | 5 VDC, 800 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions | 5.47 x 5.08 x 1.22" (13.9 x 12.9 x 3.1 cm) | | Weight | 1.1 lb (0.5 kg) approximately |
