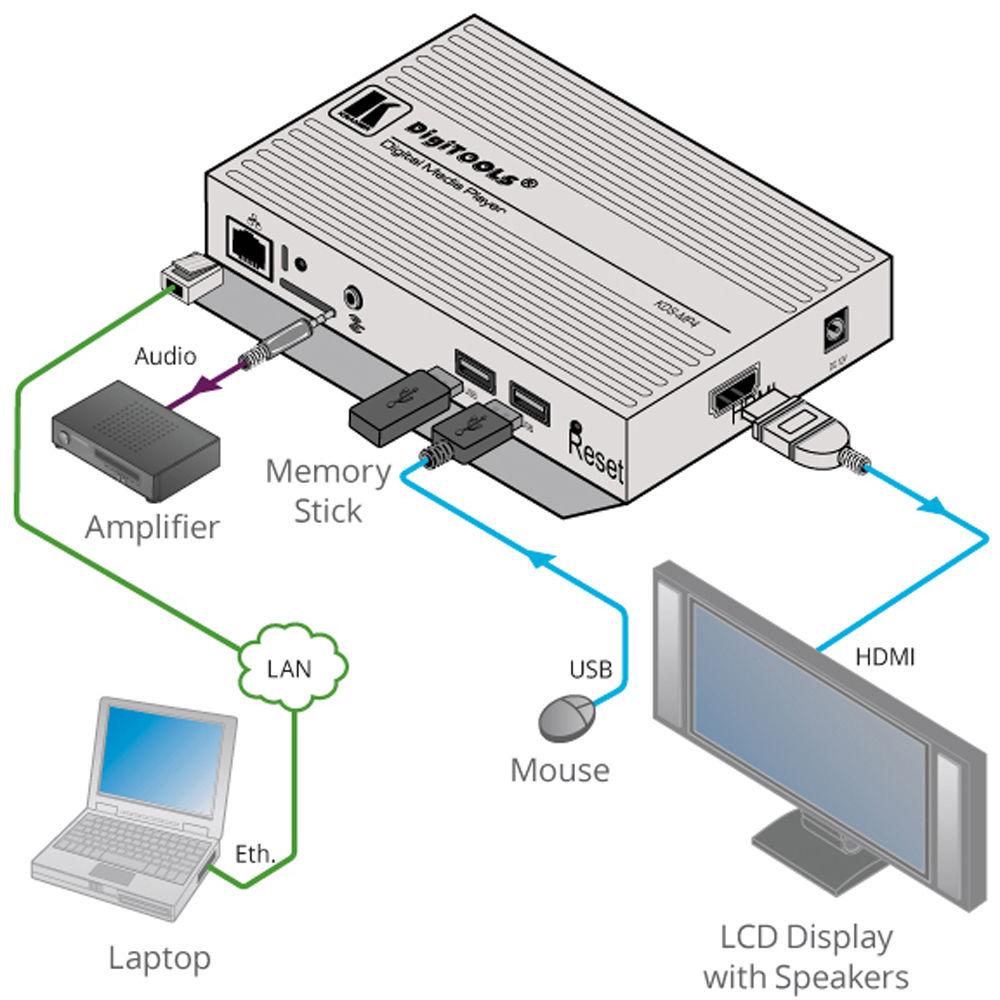

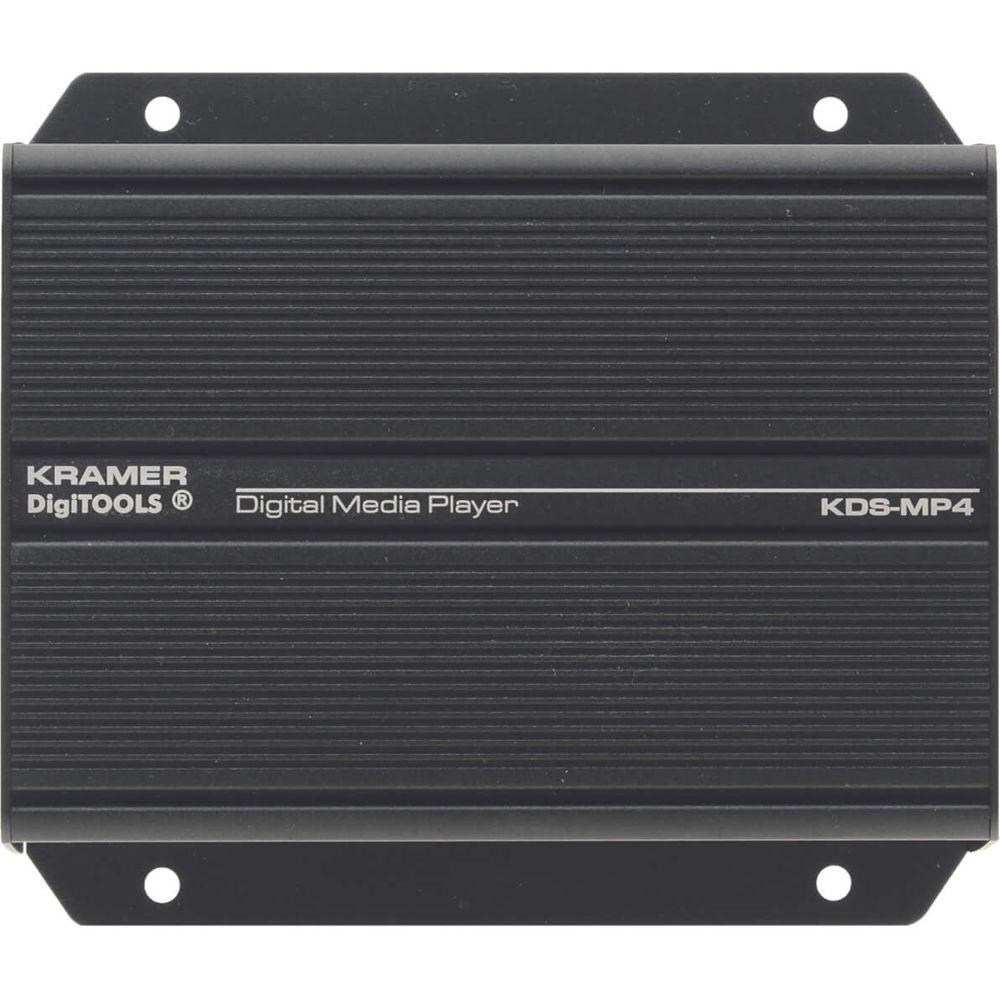

Product description The KDS-MP4 4K UHD Digital Signage Media Player from Kramer is a high-quality LAN-based digital signage media player. The media player receives content from the media manager software installed on the PC, either via LAN or from an external USB memory stick, and loads it into its internal memory before finally displaying it with an image quality of up to 4K UHD via HDMI output. -
- 4K UHD Support
- High-quality HDMI video & audio
- Codec format support for MPEG1, MPEG2, MPEG L2, MP3, H.264/MPEG4, and VC1
- NTP Client for time synchronization
- Integrated SMIL control for CMS device management in LAN environments
- SMIL 3.0 Instruction (subset) support
- CMS Device Management for LAN environments using the integrated SMIL control
- Perforated side panel for efficient heat dissipation
- VESA standard mounting bracket can mount on-wall, inside a cabinet, or to the VESA standard screw holes on the rear panel of a display
- Media manager software for easy, powerful, and versatile management of digital signage content via a PC
- Media-manager multi-language support with readymade templates for screen layouts, logos, tickers and widgets
- Built-in mounting bracket
In the Box Kramer KDS-MP4 4K UHD Digital Signage Media Player AC Adapter HDMI Cable 4 x Velcro Hook & Loop Fastener Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer KDS-MP4 4K UHD Digital Signage Media Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer KDS-MP4 Specs I/O Connectors | 1 x HDMI 2 x USB 2.0 1 x Ethernet on a RJ45 connector 1 x Unbalanced stereo audio on a 3.5 mm jack 1 x microSD card slot | Video Format Support | POPAI Screen Media Standards: S6 (MPEG1 SIF, 3 Mb/s CBR) S7 (MPEG1 480p, 10 Mb/s CBR) S8 (MPEG1 720p, 15 Mb/s CBR) S9 (MPEG2 480p, 6 Mb/s CBR) S10 (MPEG2 720p, 12 Mb/s CBR) S11 (MPEG4 AVC, 480p, 6 Mb/s CBR) S12 (MPEG4 AVC, 720p, 10 Mb/s CBR) E4 (VC1/WMV9, MP@ML, 720p) E7 (MPEG4 ASP, 480p, 10 Mb/s CBR) E8 (MPEG4 AVC, 1080p, 10 Mb/s CBR) | Image Format Support | POPAI Screen Media Standards: S1 (JPEG 480p baseline) S2 (JPEG 720p baseline) S3 (JPEG 1080p baseline) E1 (PNG 24 bpp+alpha, 480p) E2 (PNG 24 bpp+alpha, 720p) E3 (PNG 24 bpp+alpha, 1080p) | Audio Formats Support | POPAI Screen Media Standards S4 (MPEG L2 audio) S5 (MP3 audio, 320 Kb/s) | Dynamics | W3C HTML5 (HTML, CSS, JavaScript) W3C SMIL 3.0 instructions (subset) | Indicators | Power (green), status (orange) | Local Storage | 8 GB onboard flash memory (up to 6 hours of typical 720p video @ 3 Mb/s) Micro SD card expansion slot | Power Requirement | 12 VDC, 1.5 A | Power Consumption | 8.65 W | Operating Temperature | 32 to 113°F / 0 to 45°C | Storage Temperature | -40 to 158°F / 40 to 70°C | Humidity | 10 to 85% @ 40°C, 32° to 104°F non-condensing | Safety | UL/FCC/CE/CCC/CTick/VCCI certified power supplies | Certifications | CE/FCC/VCCI/TELEC/CCC/IC | Dimensions | 5.5 x 5.1 x 1.2" / 13.9 x 12.9 x 3.10 cm | Weight | 1.1 lbs / 0.5 kg approximately |
