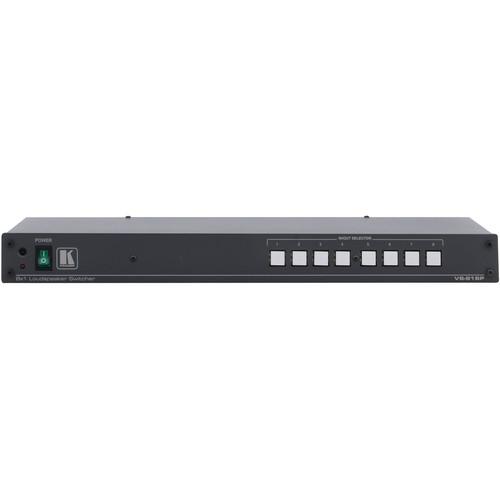

User Manual for Kramer Loudspeaker Switcher Click to enlarge the picture
Contents of the user manual for the Kramer Loudspeaker Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer Loudspeaker Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Loudspeaker Switcher (8 x 1) is a standard 19" rack mount size switcher with bidirectional operation. The unit can switch any one of eight stereo inputs to one stereo output or one stereo input to any one of eight stereo outputs. With a high switching audio power of 400W for each input and output, it utilizes 256W for 4Ω load and 512W for 8Ω load. The switcher handles both high impedance level (100/70V) and low impedance level (8/4 ohm) signals. It can be cascaded up to 7 units for supporting additional stereo outputs. The flexible control options include front panel controls, 2 RS-232, RS-485, Ethernet, contact closure & IR remote. -
- Standard 19" rack mount size, 1 RU - rack ears included
- Bi-directional operation - 8 x 1 input/output connections with bi-directional functionality
- High power switching - 400W of audio power for each input and output
- Handles high impedance (100/70V) and low impedance (8/4Ω) signals
- Expandable - cascades up to 7 units
- Flexible control options - front panel controls, 2 RS-232 (K-Router Windows-based software included), RS-485, Ethernet, contact closure & IR remote (included)
In the Box Kramer Loudspeaker Switcher (8 x 1) Power Cord Remote Control Windows-Based Control Software 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Loudspeaker Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-81SP Specs | Input/Output | 256W switching power for 4Ω load, 512W switching power for 8Ω load. The machine can handle both high impedance (100/70V) and low impendence (8/4 ohm) signals. | | Options | External remote IR receiver cable | | Power Source | 100-240V AC, 3VA | | Dimensions (WxDxH) | 19 x 7 x 1" (48.3 x 17.8 x 2.5cm) - 1 RU | | Weight | 4.4 lbs (2kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
