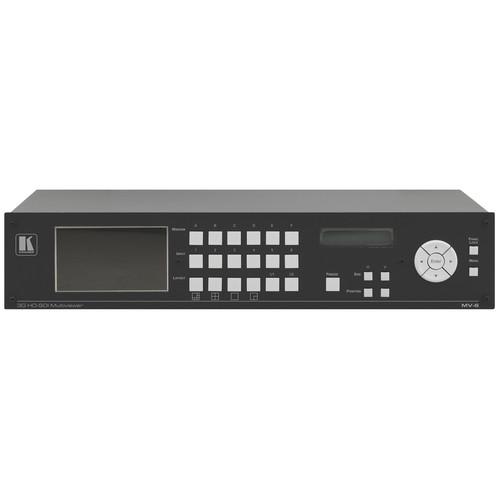

Product description The Kramer MV-6 3G HD-SDI Multiviewer is a versatile, high-performance multi-viewer for 3G HD-SDI video signals. It can display up to 6 inputs in any combination and output the image in SDI, HDMI, and CV formats. Both pre-programmed and customizable screen divisions are supported. - Maximum input data rate of up to 3 Gbps
- Re-clocking looping inputs
- Multi-Standard Operation: SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M)
- Multi-Video Output Formats: 3G HD-SDI (SMPTE 424M), HDMI & composite, scaling, refresh rate, and video standard conversion
- Front Panel Preview Screen: 16:9, 4.3" (10.92 cm) color LCD displaying the output of the unit
- Kramer re-Klocking & Equalization Technology rebuilds the digital signal to travel longer distances
- Flexible Control Options: Front panel with 2-row LCD, OSD, Ethernet, and RS-232 (supplied with PC control software)
- Screen Handling Buttons: Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts
- Worldwide Power Supply: 100 to 240 VAC
- Standard 19" (482.6 mm) rack mount size; 2U rack ears included
In the Box Kramer MV-6 3G HD-SDI Multiviewer Power Cord Rack Ears 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer MV-6 3G HD-SDI Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer MV-6 Specs | Inputs | 6 SD/HD/3G HD-SDI on BNC connectors | | Outputs | 1 HDMI, 1 CV on a BNC connector (for 720p @ 50 Hz and 1920p @ 50 Hz, the output is PAL; for 720p @ 59.94/60 Hz and 1920p @ 59.94/60 Hz, the output is NTSC)
1 SD/HD/3G HD-SDI on a BNC connector | | Maximum Level | Input & Output: 800 mVpp/75 Ω | | Maximum Data Rate | Up to 2.97 Gbps | | Controls | Front panel, RS-232, and Ethernet | | LCD Front Panel Display | 4.3" (10.92 cm) TFT color LCD panel | | Power Consumption | Universal
100 to 240 VAC
50/60 Hz
35 VA | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -49 to 162°F (-45 to 72°C) | | Humidity | 10 to 90% RH (non-condensing) | | Mounting | Rack mountable | | Rack Height | 2U | | Dimensions | W x D: 19 x 7.4" (482.6 x 187.96 mm) | | Weight | 6.83 lb (3.1 kg) | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 21.5 x 11.5 x 6.5" |
