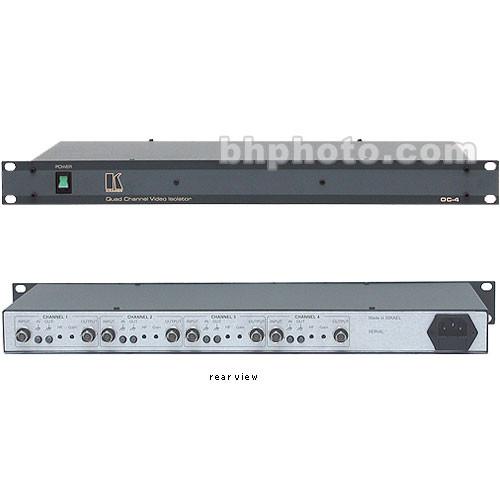

User Manual for Kramer OC-4 Quad Channel Video Optical Line Isolator - 120 VAC, Composite BNC Click to enlarge the picture
Contents of the user manual for the Kramer OC-4 Quad Channel Video Optical
- Product category: Noise Eliminators & Isolators Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Noise Eliminators & Isolators
|
User manual for the Kramer OC-4 Quad Channel Video Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer OC-4 reduces or eliminates hum and herringbone interference resulting from a ground loop. This model offers four channels of video isolation. The inputs and outputs are BNC connections isolated from the power supply ground. - Optical Video Isolation
- This unit offers opto-isolation, therefore offering a linear response and wide frequency range capability.
- Level Control
- Input level, Output level and EQ controls offer the user optimum control of the video signal.
- Quad Channel
- This device offers four separate channels of video line isolation with adjustment for each channel.
In the Box Kramer OC-4 Quad Channel Video Optical Line Isolator - 120 VAC, Composite BNC Power Cord 3-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer OC-4 Quad Channel Video Optical Line Isolator - 120 VAC, Composite BNC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer OC-4 Specs | Input | Composite Video x4, 1 Vpp @ 75 ohms, on BNC connectors | | Output | Composite Video x4, 1 Vpp @ 75 ohms, on BNC connectors | | Bandwidth | 20 MHz | | Hum Rejection | Not Specified by Manufacturer | | Return Loss | Not Specified by Manufacturer | | Dimensions (WxDxH) | 19 x 7 x 1.75"
48.26 x 17.78 x 4.45cm | | Weight | 7.8 lbs
3.5 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 21.5 x 11.0 x 4.5" |
