User Manual for Kramer PA-120Z Power Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer PA-120Z Power Amplifier
- Product category: 70-Volt Amplifiers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer 70-Volt Amplifiers
 |
User manual for the Kramer PA-120Z Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

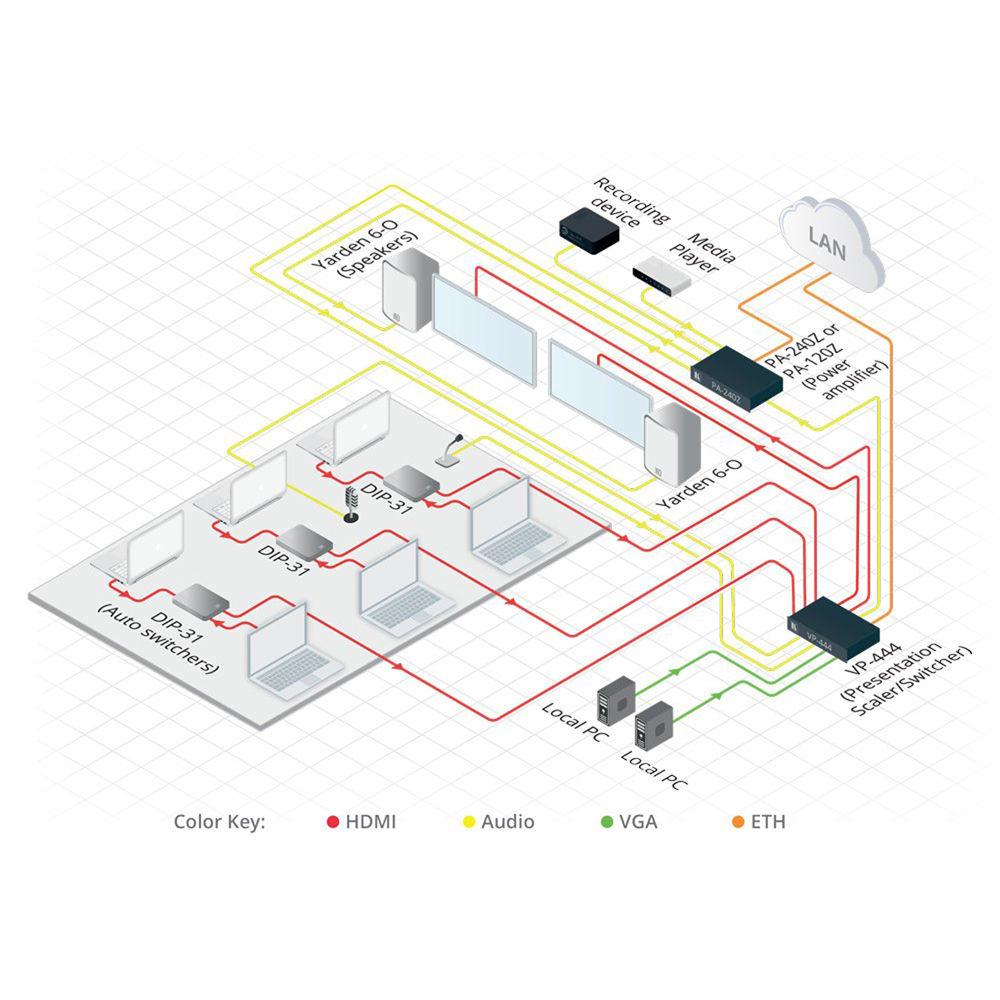

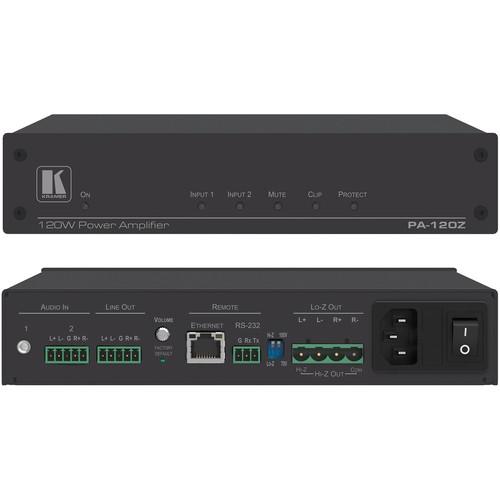

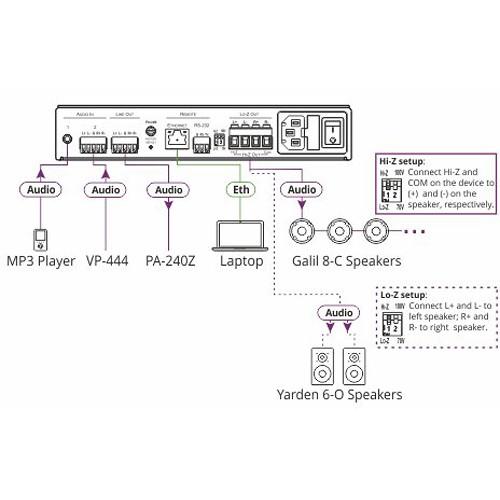

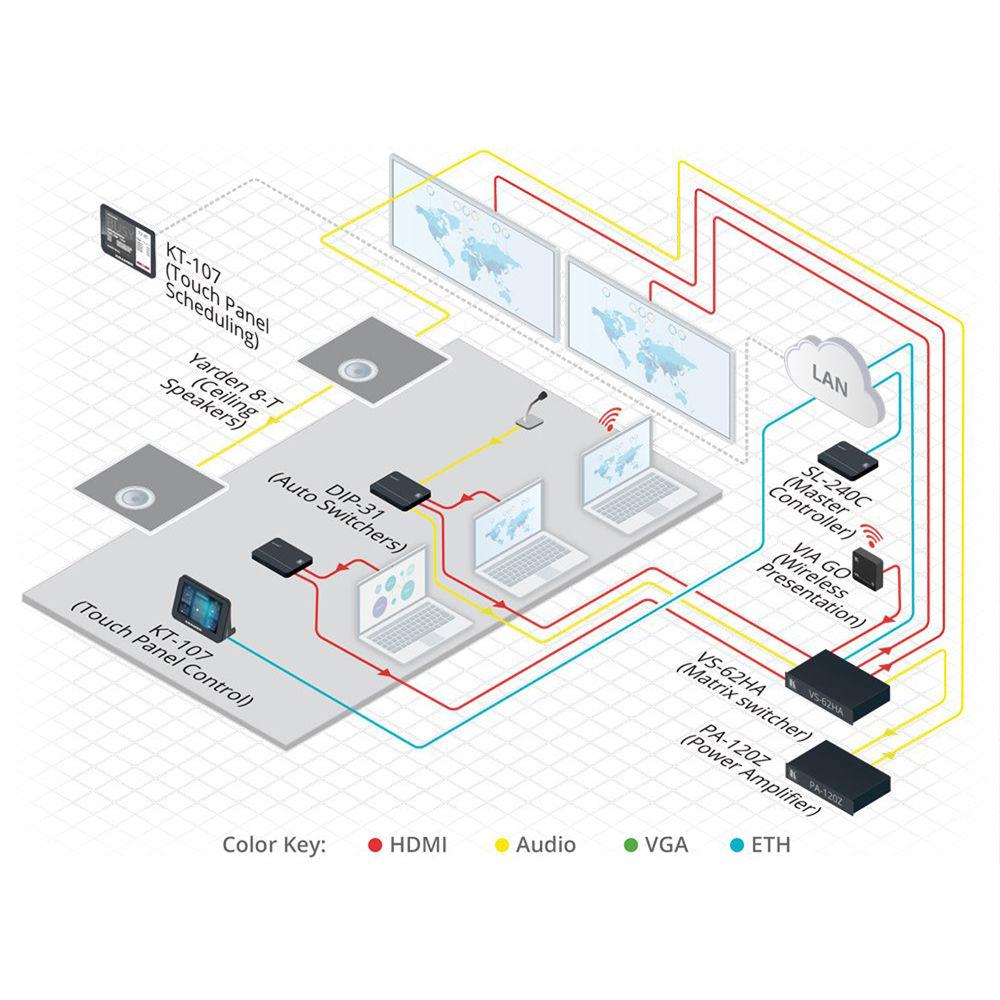

Product description The PA-120Z Power Amplifier from Kramer is a high impedance (70/100V) and low impedance (4/8 Ohms) controllable power amplifier featuring balanced and unbalanced stereo audio inputs and a balanced stereo line-level output. It offers a power output of 120W on single channel at 70/100V and 60W on two channels at 4/8 Ohms. The unit is suitable for applications like medium to large meeting rooms, auditoriums and lecture halls, court rooms, retail stores and shopping centers, hotel lobbies, and transportation hubs. - Single channel of 120W output into a 70/100V high-impedance line
- Two channels of 60W output into a 4/8 Ohms low-impedance line
- Balanced stereo line-level output
- Two stereo inputs with individual gain
- Selectable high-pass filter
- Built-in 3-band parametric equalizer
- Auto-standby with adjustable threshold
- Controllable via RS-232 and Ethernet LAN
- Overcurrent and overheat protections
In the Box Kramer PA-120Z Power Amplifier (1 x 120W at 70/100V & 2 x 60W at 4/8 Ohms) Power Cord 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PA-120Z Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PA-120Z Specs | Inputs | 1 x unbalanced stereo on a 3.5 mm connector
1 x balanced stereo +4 dBu/10 kOhms on a 5-pin terminal block | | Outputs | 1 x balanced stereo line level on a 5-pin terminal block
1 x stereo or 1 mono speaker output on a 4-pin large terminal block | | Input Sensitivity | Attains full power at 0.3 V (-10 dBV) | | Output Power | 2 x 60 W at 4 or 8 Ohms
1 x 120 W at 70 or 100 V | | Amplifier Type | Class D | | Maximum Voltage Gain | 26 dB SE / 32 dB BTL | | Dynamic Range | 119 dB | | Frequency Response | 20 Hz to 20 kHz at
