User Manual for Kramer PA-50HZ Power Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer PA-50HZ Power Amplifier
- Product category: 70-Volt Amplifiers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer 70-Volt Amplifiers
 |
User manual for the Kramer PA-50HZ Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

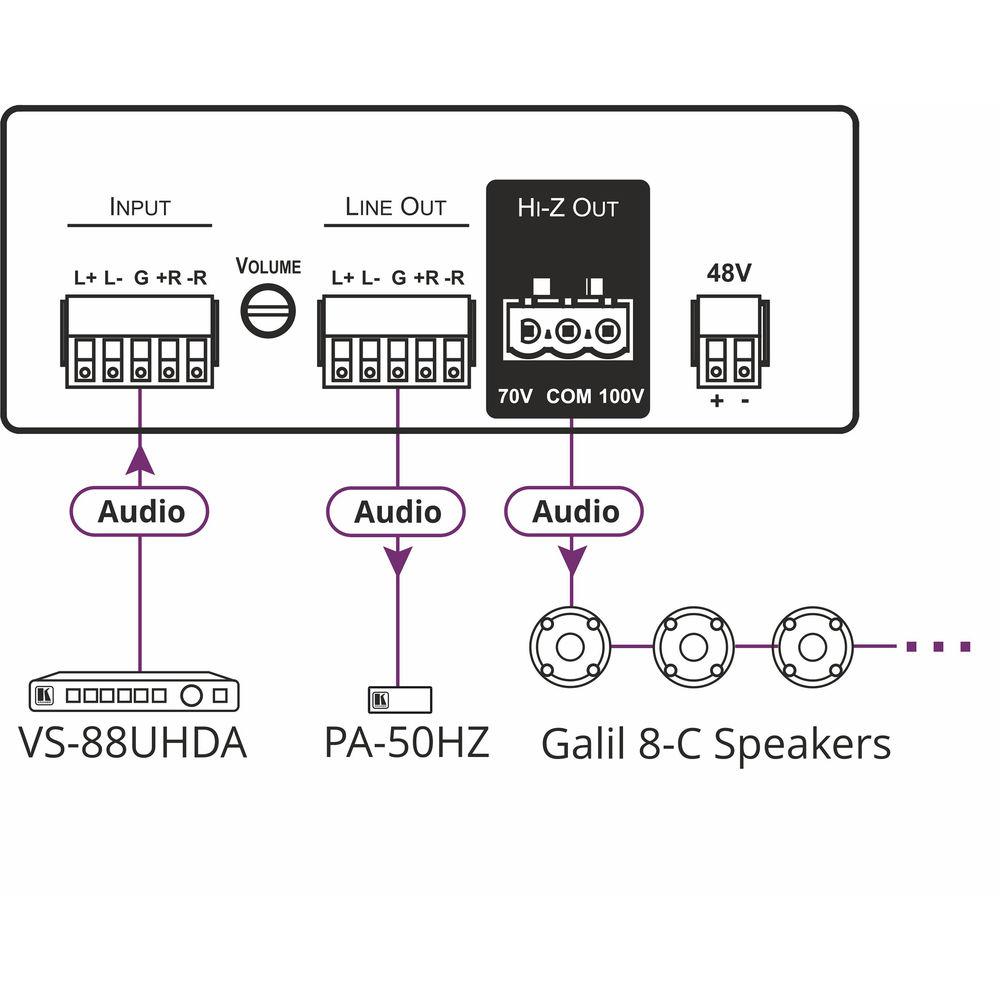

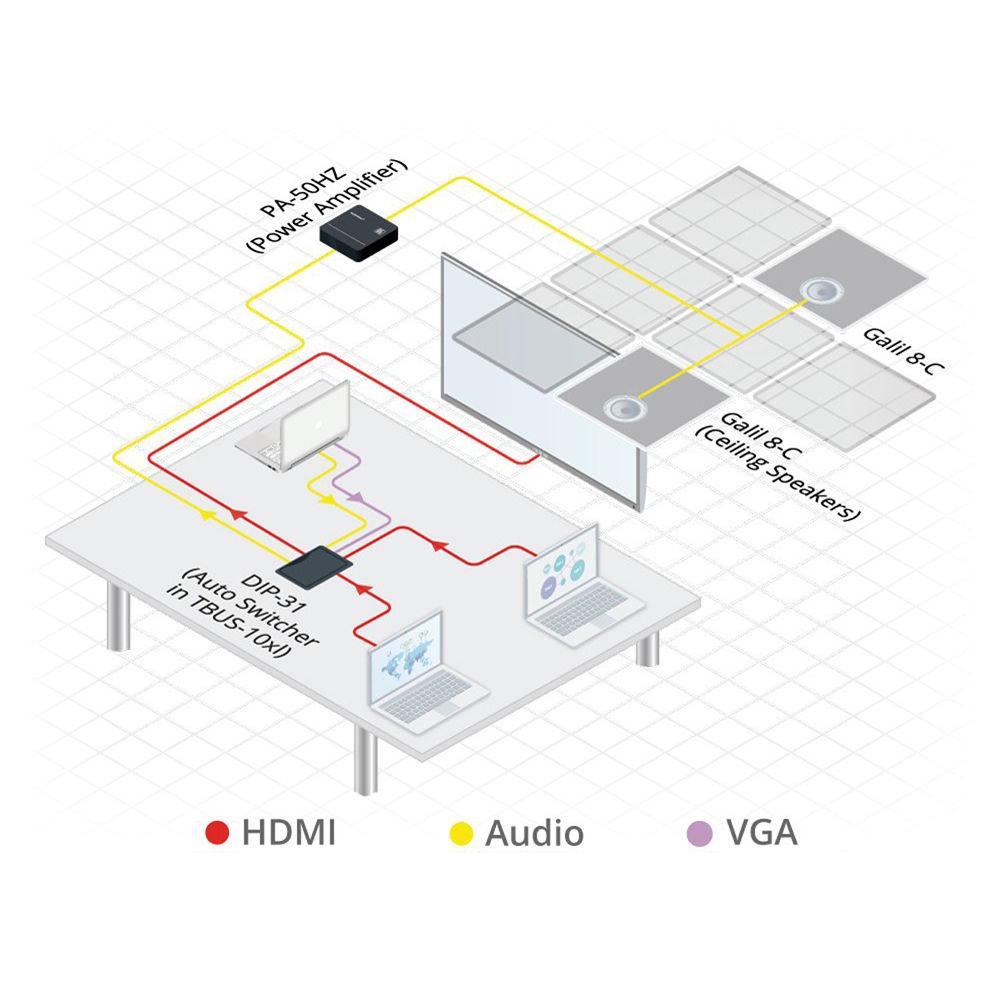

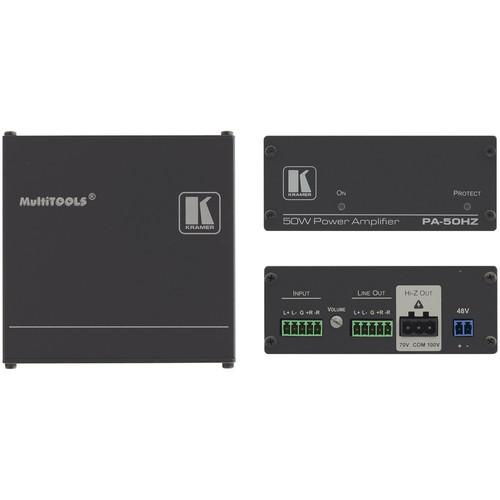

Product description The Kramer PA-50HZ is a compact power amplifier offering 50W of Class-D amplification for 70 or 100V constant-voltage systems in small- to medium-sized spaces such as conference rooms, classrooms, restaurants, and retail stores. Its aluminum enclosure occupies just 1/4 RU of rack space, and incorporates convection cooling for effective temperature regulation. Wire a stereo source from a mixer or matrix switcher to the balanced 5-pin terminal block input then utilize the 3-pin terminal block for connection to mono high-impedance speakers. A dedicated 5-pin terminal block output allows routing of the PA-50HZ's balanced stereo line-level output to a recording device or another PA-50HZ amp.The rear panel features an input level attenuator, while the front panel presents dedicated LEDs for indication of power and protection status. The PA-50HZ is powered via the supplied power adapter and power cable. - Enables simple and flexible speaker array installation
- Line-level output for cascading, recording, or conferencing scenarios
- Small form factor and convection cooling for easy installation
- 50W of Class-D power into a 70 or 100V line
- Balanced stereo I/O via 5-pin terminal block connectors
- Mono speaker output via 3-pin terminal block
- Ideal for small- to medium-sized meeting spaces, classrooms, and educational facilities
- Includes four rubber feet for stable placement
- Rack-mountable via RK-1 rack adapter (available separately)
In the Box Kramer PA-50HZ Power Amplifier (50W at 70/100V) Power Adapter with Power Cable 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PA-50HZ Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PA-50HZ Specs | Inputs | 1 x 5-Pin Terminal Block (Balanced Stereo Input) | | Outputs | 1 x 5-Pin Terminal Block (Balanced Stereo Line Output)
1 x 3-Pin Terminal Block (Mono Speaker Hi-Z Output) | | Amplifier Class | Class-D | | Input Sensitivity | Full Power at 1.5 V (+5 dBV) | | Output Power | 50 W at 70/100 V | | Voltage Gain | Up to 37 dB BTL | | Maximum Input Level | +4 dBu | | Maximum Output Level | +4 dBu | | Input Impedance | 10 kOhms | | Output Impedance | 600 Ohms | | Frequency Response | Line Output: 20 Hz to 20 kHz (
