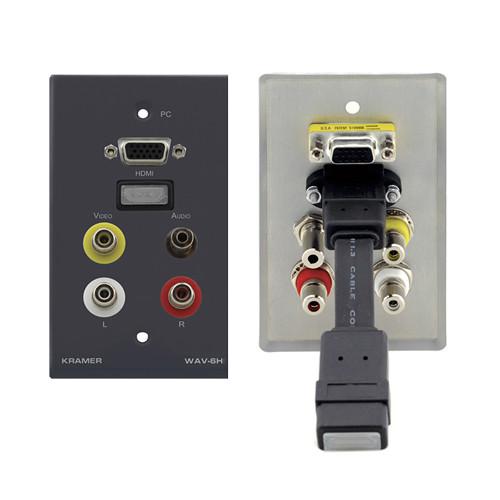

Product description The gray Kramer Passive Wall Plate is a wall plate insert with pass-through connectors for computer monitors, HDMI, composite video, and stereo audio.
Its front panel has 15-pin HD, HDMI, 3.5mm mini jack, and three RCA connectors. Its rear panel has 15-pin HD, a cable with HDMI, 3.5mm mini jack, and three RCA connectors. - 15-pin HD connector for computer monitors.
- Yellow RCA connector for composite or SDI video.
- White and red RCA connectors for unbalanced stereo audio.
- 3.5mm mini jack for analog stereo audio.
In the Box Kramer Passive Wall Plate with 15-Pin VGA HD, HDMI, 3.5mm, and AV RCA Connectors (Gray) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Passive Wall Plate with 15-Pin VGA HD, HDMI, 3.5mm, and AV RCA Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WAV-6H(G) Specs | Connectors | 1 x 15-pin HD Female, VGA/UXGA
1 x HDMI Female, Video
1 x 3.5mm jack Female, Mono/Stereo Audio
1 x RCA Female, Analog Video
2 x RCA Female, Analog Audio | | | | Package Weight | 0.425 lb | | Box Dimensions (LxWxH) | 7.0 x 5.2 x 2.7" |
