User Manual for Kramer PIP-4 Composite Video Picture-in-Picture Inserter Click to enlarge the picture
Contents of the user manual for the Kramer PIP-4 Composite Video Picture-in-Picture Inserter
- Product category: Multiviewer Processors Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Multiviewer Processors
|
User manual for the Kramer PIP-4 Composite Video Picture-in-Picture Inserter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

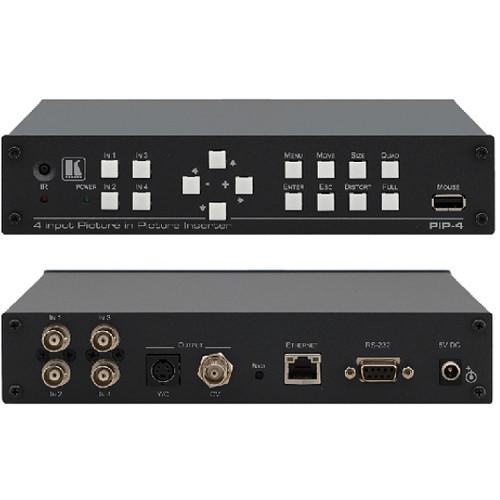

Product description The Kramer PIP-4 Composite Video Picture-In-Picture Inserter is a high-performance Picture-In-Picture (PIP) inserter for composite video signals. The PIP output can display up to 4 images simultaneously, each of which can be sized and positioned individually. - Picture-In-Picture Options
- All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal-sized images
- Multi-Format Operation
- S-Video and composite video outputs
- Multi-Standard Operation
- PAL & NTSC compatible inputs & outputs (no format conversion)
- USB Mouse Connector
- For convenient navigation and control, including OSD
- Built-In ProcAmp
- Brightness, contrast, and saturation for each input
- Flexible Control Options
- Front panel, IR remote, mouse (with OSD), RS-232, & Ethernet
- Desktop Size
- Compact size
In the Box Kramer PIP-4 Composite Video Picture-in-Picture Inserter 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PIP-4 Composite Video Picture-in-Picture Inserter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PIP-4 Specs | Inputs | 4 composite video 1 Vpp @ 75 Ω on BNC connectors | | Outputs | 1 S-Video 1 Vpp, 0.3 Vpp / 75 Ω on a 4-pin S-Video connector
1 composite video 1 Vpp / 75 Ω on a BNC connector | | Digital Resolution | 10 bit | | Video Bandwidth | 5.4 MHz | | K-Factor | 0.9% | | S/N Ratio | 64 dB | | Differential Phase | 0.8° | | Differential Gain | 1.1% | | Luma Non-linearity | 0.9% | | Chroma / Luma Delay | <15 ns | | Separation | Y/C: Adaptive 4-line digital comb filters | | Memory | Non-volatile memory for storage of 2 setups | | Control | Front-panel, OSD, RS-232, and Ethernet
Video pane size and position
Video ProcAmp functions: video zoom, freeze | | Power Consumption | 5 VDC, 560 mA | | Dimensions (W x D x H) | 8.5 x 7 x 1.7" (21.5 x 17.7 x 4.4 cm) | | Weight | 1.76 lb (0.8 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.6 x 8.4 x 2.8" |
