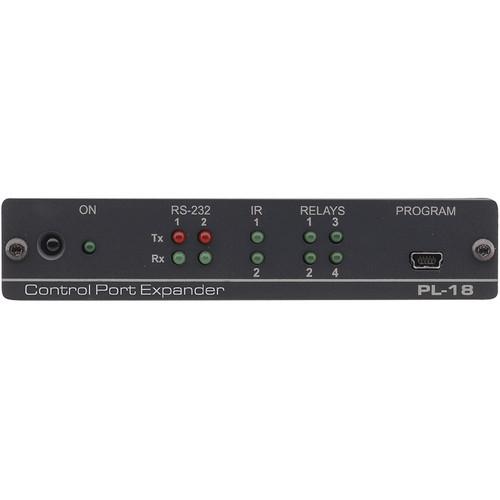

Product description The Kramer Electronics PL-18 Control Port Expander adds RS-232, IR, and relay ports for RS-232 controllers like RC-2, RC-62, and RC-63. It has 2 bi-directional RS-232 serial ports for sending and receiving RS-232 control signals. In addition, the expander includes 4 relay contact closure ports that let you control AV related systems from a distance for performing actions such as raising and lowering drapes, the screen or the projector.

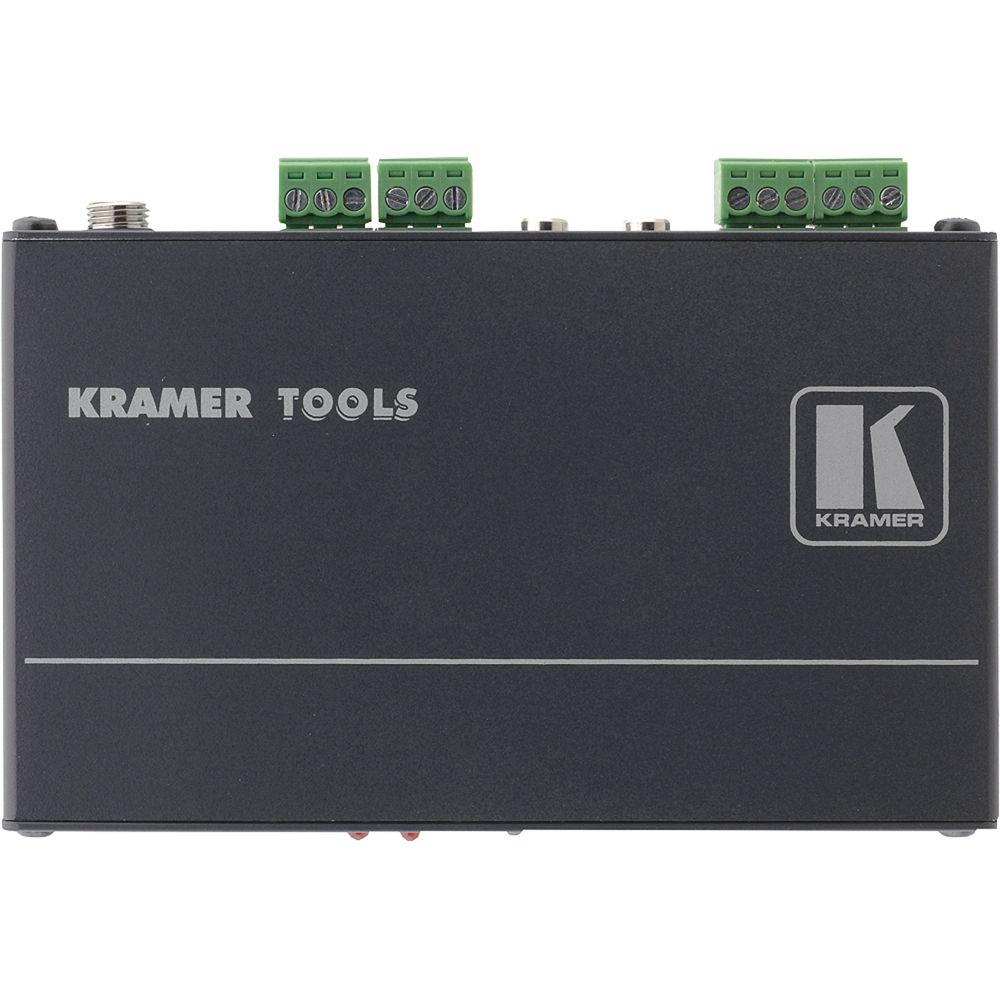

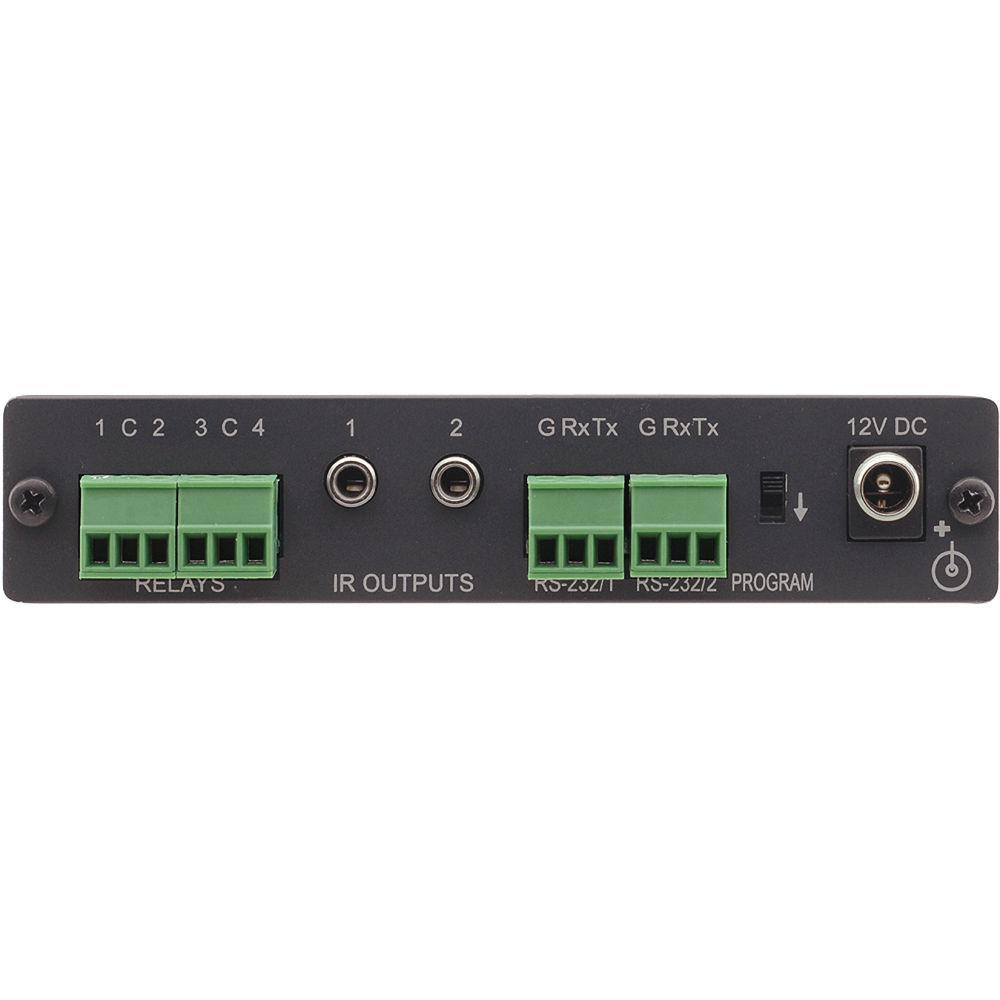

With the 1/3 rack mount space, the port expander can be mounted side by side in 1 RU rack space of the optional RK-3T rack adaptor. It also includes a USB port for firmware upgrade and two 3.5mm jacks, which connect IR emitters for extended reach of IR control. - Adds RS-232, IR, and relay ports for RS-232 controllers like RC-2, RC-62, and RC-63
- 2 bi-directional RS-232 serial ports for sending and receiving RS-232 control signals
- Includes 4 relay contact closure ports that let you control AV related systems from a distance for performing actions such as raising and lowering drapes, the screen or the projector
- USB port for firmware upgrade
- Two 3.5mm jacks - connect IR emitters for extended reach of IR remote controls
In the Box Kramer PL-18 Control Port Expander 7-years Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PL-18 Control Port Expander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PL-18 Specs | Ports | 2 bidirectional RS-232 ports on terminal block connectors
1 USB | | Outputs | 4 relays on terminal block connectors, 36V AC or DC, 1A, 60V AC max on non-inductive load
2 IR outputs on 3.5mm mini jack connector | | LED Indicators | ON (green)
RS-232 (Tx-red and Rx-green)
IR (green)
Relays (green) | | Power Source | 5V DC, 260mA | | Dimensions (WxDxH) | 4.7 x 3.0 x 1.0" (12 x 7.6 x 2.4 cm) | | Weight | 1.41lb (0.6kg) | | Accessories | Power supply | | Options | RK-3T 19" rack adapter
IR emitter extension cables, 15m and 20m |
