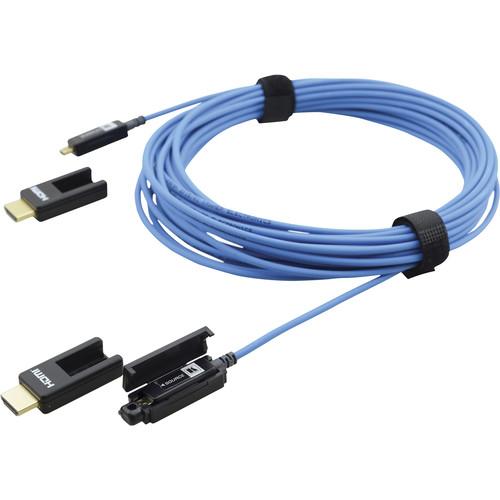

User Manual for Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors Click to enlarge the picture
Contents of the user manual for the Kramer Plenum-Rated High-Speed Fiber Optic HDMI
- Product category: HDMI Cables Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer HDMI Cables
|
User manual for the Kramer Plenum-Rated High-Speed Fiber Optic HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Install in-wall HDMI runs safely with the blue 33' Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable. It features removable connectors so you can pull them through the wall without worrying about breaking the terminals. Its plenum-rated CMP-OF (UL) and LSHF (low smoke, halogen free) jacket will help shield it from EM interference from nearby power cables and other in-wall cabling. This cable supports 4K at 30 Hz (4:4:4) and at 60 Hz (4:2:0) as well as 3D video, Full HD, high-resolution audio, ARC, HDCP 2.2, EDID, and CEC. - Supports 4K resolution at 30 Hz (4:4:4) and 60 Hz (4:2:0), 8-bit, Full HD, and 3D Deep Color
- Supports PCM 8-channel, Dolby TrueHD, and DTS-HD Master Audio
- Data transfer rate up to 10.2 Gbps
- HDCP 2.2, EDID, and CEC compliance
- Hybrid design of four optical fibers and six copper wires
- No external power required
- Small 0.24" bending ratio
- Jacket made of plenum-rated CMP-OF (UL)
- 110 lb cable pull strength, 22 lb connector pull strength
In the Box Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors (33') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer CP-AOCH/XL-33 Specs | Cable Type | Hybrid fiber optic | | Type | Digital audio/video | | Length | 33' (10 m) | | Supported Transfer Speed | Up to 10.2 Gbps | | Video Support | 4K @ 30 Hz (4:4:4) UHD, 4K @ 60 Hz (4:2:0) UHD, 8-bit, Full HD, 3D, Deep Color | | Embedded Audio | PCM 8-channel, Dolby TrueHD, DTS-HD Master Audio | | HDMI Compliance | HDCP 2.2, EDID, CEC | | Connector 1 | HDMI Type-D male | | Connector 2 | HDMI Type-D male | | Construction Material | Cable: 4 x optical fibers, 6 x copper wires
Jacket: Plenum-rated CMP-OF (UL) and LSHF (low smoke halogen free) | | Bend Radius | 0.24" (6 mm) | | Maximum Pull Tension | Cable: 110 lb (50 kg)
Connector: 22 lb (10 kg) | | Operating Conditions | Temperature: 32 to 122°F (0 to 50°C)
Relative Humidity: 5 to 85%, non-condensing | | Storage Temperature | 30 to 122°F (0 to 50°C) | | Maximum Power Consumption | General: 0.25 W | | Cable Diameter | 0.13" (3.4 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.8 x 10.0 x 1.7" |
