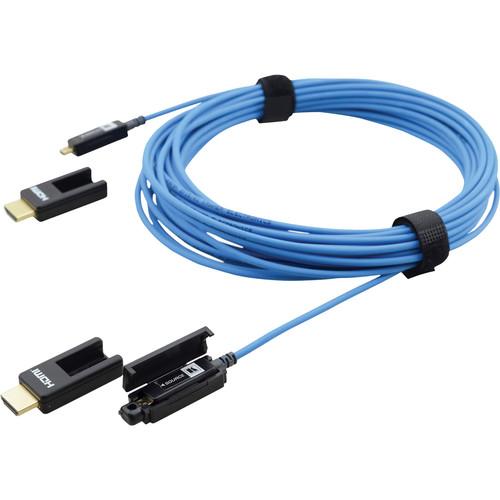

Product description Install in-wall HDMI runs safely with the blue 230' Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable. It features removable connectors so you can pull them through the wall without worrying about breaking the terminals. Its plenum-rated CMP-OF (UL) and LSHF (low smoke, halogen free) jacket will help shield it from EM interference from nearby power cables and other in-wall cabling. This cable supports 4K at 30 Hz (4:4:4) and at 60 Hz (4:2:0) as well as 3D video, Full HD, high-resolution audio, ARC, HDCP 2.2, EDID, and CEC. - Supports 4K resolution at 30 Hz (4:4:4) and 60 Hz (4:2:0), 8-bit, Full HD, and 3D Deep Color
- Supports PCM 8-channel, Dolby TrueHD, and DTS-HD Master Audio
- Data transfer rate up to 10.2 Gbps
- HDCP 2.2, EDID, and CEC compliance
- Hybrid design of four optical fibers and six copper wires
- No external power required
- Small 0.24" bending ratio
- Jacket made of plenum-rated CMP-OF (UL)
- 110 lb cable pull strength, 22 lb connector pull strength
In the Box Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors (230') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer CP-AOCH/XL-230 Specs | Cable Type | Hybrid fiber optic | | Type | Digital audio/video | | Length | 230' (70 m) | | Supported Transfer Speed | Up to 10.2 Gbps | | Video Support | 4K @ 30 Hz (4:4:4) UHD, 4K @ 60 Hz (4:2:0) UHD, 8-bit, Full HD, 3D, Deep Color | | Embedded Audio | PCM 8-channel, Dolby TrueHD, DTS-HD Master Audio | | HDMI Compliance | HDCP 2.2, EDID, CEC | | Connector 1 | HDMI Type-D male | | Connector 2 | HDMI Type-D male | | Construction Material | Cable: 4 x optical fibers, 6 x copper wires
Jacket: Plenum-rated CMP-OF (UL) and LSHF (low smoke halogen free) | | Bend Radius | 0.24" (6 mm) | | Maximum Pull Tension | Cable: 110 lb (50 kg)
Connector: 22 lb (10 kg) | | Operating Conditions | Temperature: 32 to 122°F (0 to 50°C)
Relative Humidity: 5 to 85%, non-condensing | | Storage Temperature | 30 to 122°F (0 to 50°C) | | Maximum Power Consumption | General: 0.25 W | | Cable Diameter | 0.13" (3.4 mm) | | Weight | Not specified by manufacturer |
