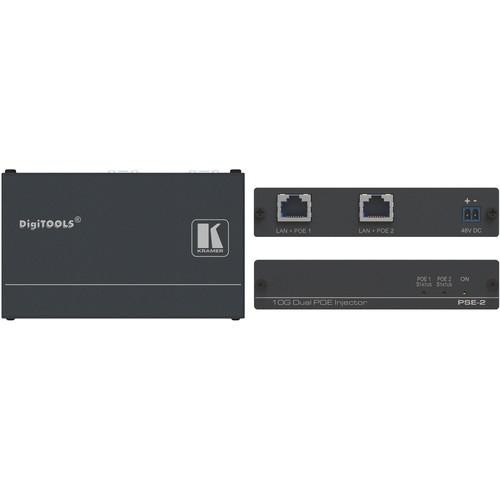

User Manual for Kramer PSE-2 10Gb UHD Power Over Ethernet Injector Click to enlarge the picture
Contents of the user manual for the Kramer PSE-2 10Gb UHD Power Over
- Product category: Power over Ethernet (PoE) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Power over Ethernet (PoE)
|
User manual for the Kramer PSE-2 10Gb UHD Power Over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The PSE−2 10Gb UHD Power Over Ethernet Injector from Kramer provides power remotely over Ethernet to two devices that can act as a PoE acceptor (for example, a wallplate where it may be difficult to connect an external power supply). This allows a single HDBT LAN cable to provide both data and electrical power to compatible devices. - Total Range up to 328' at 4K on shielded BC−DGKat623 or BC−HDKat6a cable (or equivalent)
- Safety Regulatory Compliance: CE, c−UL, UL
- EMI/EMC Regulatory Compliance: CE, C−tick, FCC Class A, ICES, KCC, VCCI
- Complies with appropriate requirements of RoHS and WEEE
In the Box Kramer PSE-2 10Gb UHD Power Over Ethernet Injector Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PSE-2 10Gb UHD Power Over Ethernet Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PSE-2 Specs | Input/Output | 2 x HDBaseT/LAN + PoE on RJ−45 connectors | | Operating Bandwidth | Up to 10.2 Gb/s (3.4 Gb/s per data channel) | | Range | Up to 328' (100 m) @ 4K on shielded BC-DGKat623 or BC-HDKat6a (or equivalent) | | 4K Support | Yes | | HDMI Compliance | Supports HDMI and HDCP | | Indicator LEDs | On, PoE status | | Power Source | 48 VDC, 1.3 A (device plus remote power sink) | | Power | Up to 13 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Cooling | Convection, vents | | Enclosure Type | Aluminum | | Certifications and Compliances | CE, c-UL, UL, C-tick, FCC Class A, ICES, KCC, VCCI, RoHS, WEEE | | Dimensions (W x D x H) | 4.8 x 2.8 x 1.0" (12.1 x 7.0 x 2.5 cm) | | Weight | Approximately 0.51 lb (0.23 kg) |
