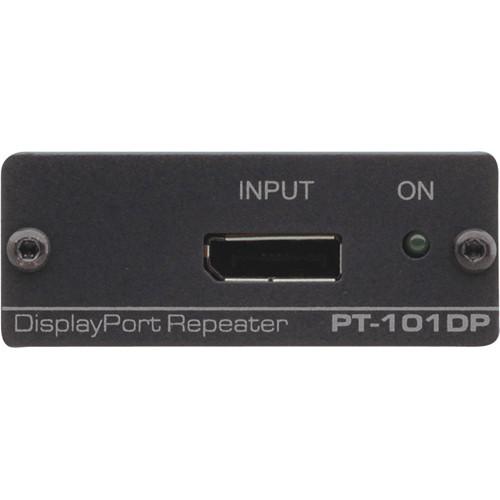

User Manual for Kramer PT-101DP DisplayPort Repeater Click to enlarge the picture
Contents of the user manual for the Kramer PT-101DP DisplayPort Repeater
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer PT-101DP DisplayPort Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics PT-101DP DisplayPort Repeater supports DisplayPort video signals. The unit reclocks and equalizes the signal and can extend the length of a DisplayPort line up to a combined length of 115’ (35m) at resolutions of UXGA/1080p using Kramer cables. Multiple units can be cascaded. - Maximum Data Rate: 2.7 Gb/s per lane
- Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal to travel longer distances
- Total range 115' (35m) for video transmission at a resolution of 1080p/60Hz

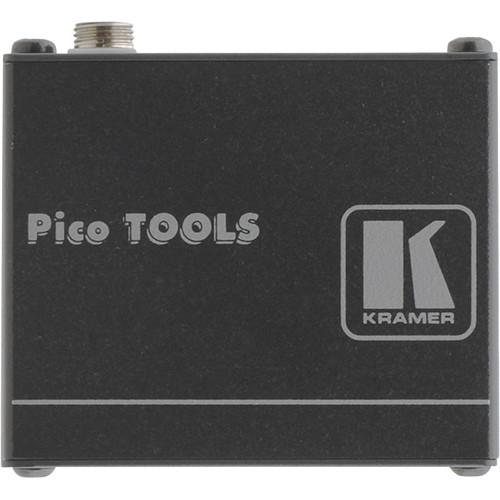

- Ultra-Compact Pico TOOLS: 4 units can be rack mounted side−by−side in a 1RU rack space with the RK−4PT rack adapter (sold separately)
In the Box Kramer PT-101DP DisplayPort Repeater Power Supply Limited 7-Year Warranty Brochure PDF 159.2kbeyduawsuebcauswseuvysrdqfbubcytc Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PT-101DP DisplayPort Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

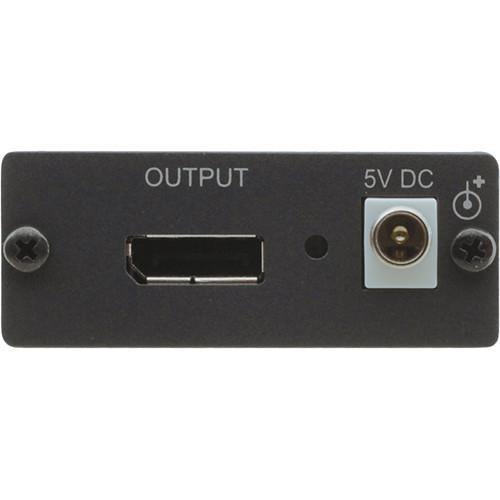

Technical parametersKramer PT-101DP Specs | Inputs | 1 DisplayPort connector | | Outputs | 1 DisplayPort connector | | Bandwidth | Supports up to 1.62 Gbps or 2.7Gbps per lane Transmission range is very limited for resolutions approaching 2560 x 1650 | | Range | 115' (35m) @UXGA/1080p using Kramer cables | | Compliance With HDMI Standard | Supports DisplayPort 1.1a and HDCP 1.3 | | Indicators | ON LED | | Power Consumption | 5 VDC, 1.1A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 5 to 85%, RHL non−condensing | | Dimensions (W x D x H) | 2.5 x 2.1 x 1.3" (6.22 x 5.23 x 3.20 cm) | | Weight | 0.16 lb (0.07 kg) approximately | | | | Box Dimensions (LxWxH) | 6.22 x 5.18 x 2.44" |
