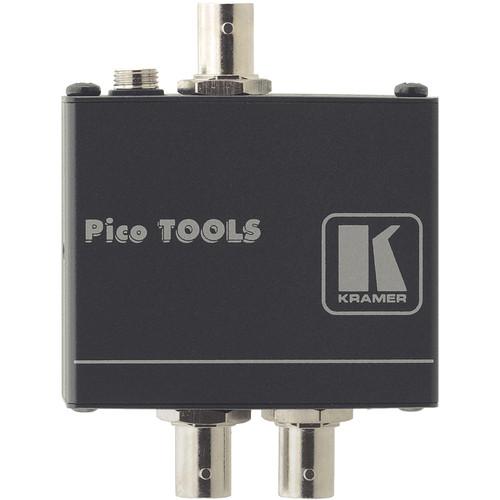

Product description The Kramer PT-102VN 1:2 Composite Video Distribution Amplifier supports composite video or SDI signals. It accepts one video or audio stereo input signal and buffers, isolates, and distributes it to two identical outputs using BNC connectors.
With the help of the trimmers provided on the front panel, the gain of the amplifier can be controlled. The PT-102VN offers gain and equalization control to compensate for cable losses. A high video bandwidth of 430 MHz (-3 dB) ensures a quick response time for most of the applications. You can increase the number of inputs by connecting a high-resolution video switcher. Using an optional RK-13 rack adapter, you can mount four units side-by-side in a 1 RU rack space. The PT-102VN amplifier is suitable for use with display systems that require the same images to be displayed on several monitors. It is also ideal for use with CCTV, home theater systems, and in video duplication systems. - Accepts one video input and supports two video outputs
- Offers a high bandwidth of 430 MHz
- Provides level and EQ control
- Number of inputs can be increased by connecting a high-resolution video switcher to the system
- Optional RK-13 rack adapter for mounting four units side-by-side in a 1 RU space
- Suitable for use with display systems that require the same image to be displayed on several monitors
- Ideal for use with CCTV, home theater systems, and video duplication
In the Box Kramer PT-102VN 1:2 Composite Video Distribution Amplifier Power Adapter (12 VDC Input) Mounting Bracket Limited 7-Year Warranty User Manual PDF 518.7kbbwryadxtufxcbsaqyazxcxefd Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PT-102VN 1:2 Composite Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PT-102VN Specs | Inputs | 1 x SDI or composite BNC, 1 Vpp/75 Ohms | | Outputs | 2 x SDI or composite BNC, 1 Vpp/75 Ohms | | Maximum Video Output | 2 Vpp | | Video Bandwidth | 430 MHz | | Differential Gain | 0.05% | | Differential Phase | 0.05° | | K-Factor | <0.05% | | S/N Ratio | 76.1 dB | | Control | Gain: -1.2 to +6 dB
EQ: 0 to +7.5 dB @ 50 MHz via trimmers, accessible from front panel | | Power Source | 12 VDC, 30 mAh | | Dimensions (WxDxH) | 2.4 x 2.6 x 1.0" (6.0 x 6.5 x 2.5 cm) | | Weight | 0.3 lb (0.1 kg) | | Adapter | RK-4PT 19" rack adapter (optional) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.1 x 5.4 x 3.8" |
