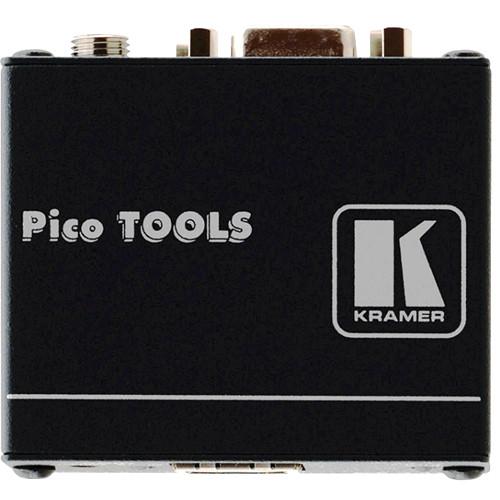

Product description The PT-110XL Pico Tools Computer Graphics Video over Twisted Pair Transmitter with EDID from Kramer Electronics is an extended range UXGA line transmitter designed for sending computer graphics video signals over twisted-pair cabling. This unit receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120XL or TP-120 receiver (sold separately).
The PT-110XL is HDTV compatible and has a system range of up to 820'. It can be used for presentation and multimedia applications, as well as long-range graphics distribution for schools, hospitals, security, stores and similar venues. - Resolution of up to WUXGA and 1080p
- Power Connect system allows a single connection to the transmitter or the receiver to power both units when the devices are within 150' from each other
- Up to 820' transmission range 1
Please Note: When used with Kramer's twisted pair xl receivers (such as PT−120xl, TP−122xl or TP−126xl) close - EDID capture - copies and stores the EDID from a display device
- Increased noise immunity - an increased level of protection against noise, spikes and interference in adverse environments
- Compact and rackmountable
- Use for presentations & multimedia applications as well as for long-range graphics distribution for schools, hospitals, security, and stores
In the Box Kramer PT-110XL Pico Tools Computer Graphics Video over Twisted Pair Transmitter with EDID 4 x Rubber Feet Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PT-110XL Pico Tools Computer Graphics Video over Twisted Pair Transmitter with EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

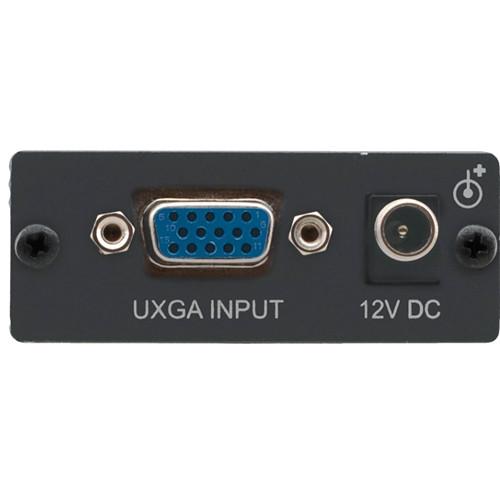

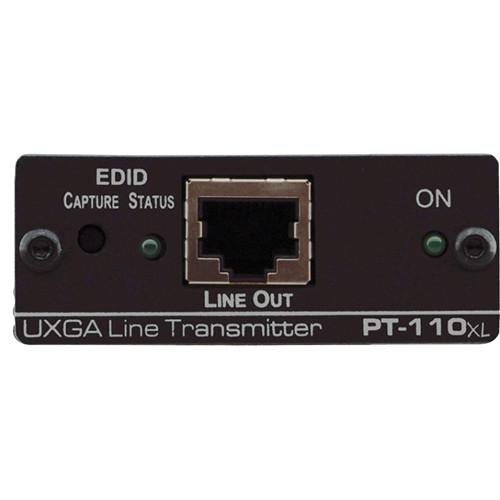

Technical parametersKramer PT-110XL Specs | Connectors | 1 x 15-pin HD VGA/UXGA
1 x RJ-45 Line output
1 x 12 VDC power | | Indicators and Controls | 1 x Capture button
1 x Status LED
1 x ON LED | | Resolution | Up to WUXGA, 1080p | | Transmission Range | Up to 820' (250 m) | | Power Consumption | 12 VDC, 285 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 - 90%, RHL non-condensing | | Power Supply | 12 VDC (external) | | Dimensions (W x D x H) | 2.4 x 2.6 x 1.0" (6.0 x 6.5 x 2.5 cm) | | Weight | Approx 0.31 lb (0.14 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.9 x 4.9 x 3.5" |
