User Manual for Kramer PT-1C Pico TOOLS EDID Processor Click to enlarge the picture
Contents of the user manual for the Kramer PT-1C Pico TOOLS EDID Processor
- Product category: EDID Emulators Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer EDID Emulators
 |
User manual for the Kramer PT-1C Pico TOOLS EDID Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

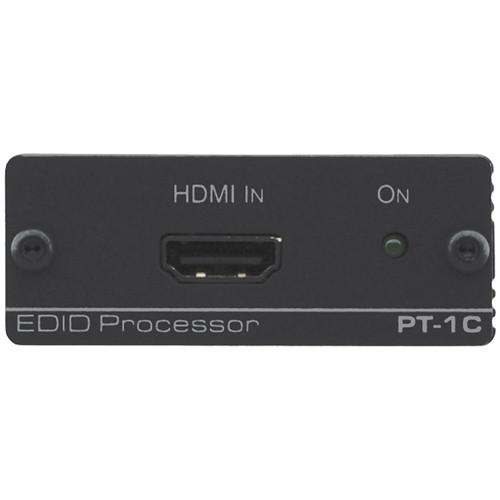

Product description The Kramer PT-1C is an EDID processor unit for HDMI signals. It allows you to lock EDID signals, and to choose to support or not support HDCP, multi-channel audio, or deep color signals that may or may not be compatible with the display. It features one HDMI input and one output and is powered via the HDMI signal so no power adapter is required.
The unit is compact, and 4 units can be rack-mounted side−by−side in a 1U rack using the optional Kramer RK−4PT rack adapter. - Key Features
-
- EDID processor unit for HDMI signals
- Lock EDID signals and choose to support or not support HDCP, multi-channel audio, or deep color
- 1 HDMI input / 1 output
- Line powered via HDMI - no power adapter required
- 10.2 Gbps max data rate
- HDMI compatible
- HDCP compliant

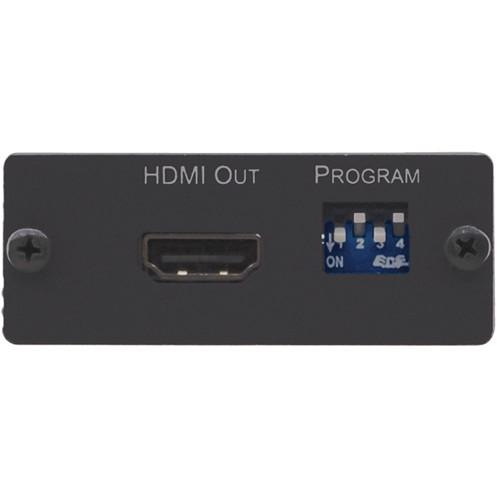

- Four program DIP−switches
- LED power indicator
In the Box Kramer PT-1C Pico TOOLS EDID Processor Limited 7-Year Warranty Guides & Manuals ttuxxvadwraaxasctbcttxv Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PT-1C Pico TOOLS EDID Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer PT-1C Pico TOOLS EDID Processor can be downloaded in PDF format at the link stated below.
Technical parametersKramer PT-1C Specs | Connectors | 1 x HDMI input
1 x HDMI output | | Maximum Data Rate | 10.2 Gbps (3.4 Gbps per data channel), 4K compatible | | Supported Standards | HDMI and HDCP | | Control | 1 x 4-position DIP switch | | Power Requirements | Takes power from the HDMI line | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -40 to 158°F (-40 to 70°C)
Humidity: 10 - 90%, RHL non−condensing | | Dimensions | 2.45 x 0.95 x 2.06" (6.2 x 2.4 x 5.2 cm) | | Weight | 3.2 oz (90.7 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.9 x 4.8 x 3.5" |
