User Manual for Kramer PT-4IREX Infrared Repeater Click to enlarge the picture
Contents of the user manual for the Kramer PT-4IREX Infrared Repeater
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer PT-4IREX Infrared Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

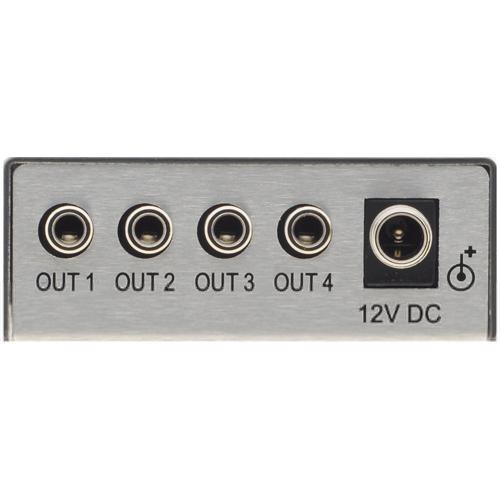

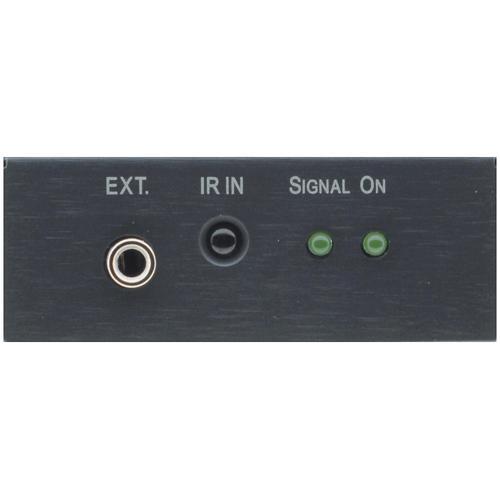

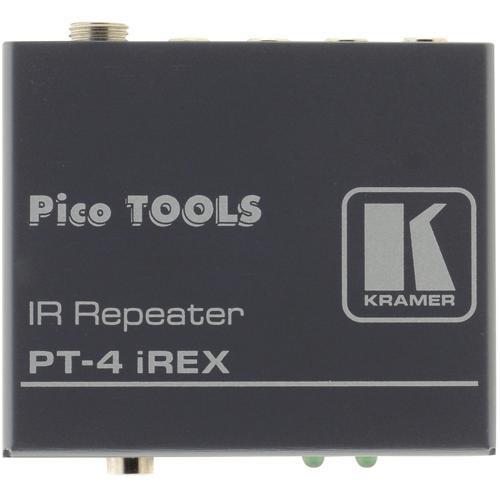

Product description With its built-in IR receiver and external sensor input, Kramer's PT-4IREX Infrared Repeater offers the ability to extend IR signals and control up to (8) out-of-sight components, with your IR remote control, throughout your home, studio, or office. Installations of up to 240' (75 m) are possible with the use of optional IR remote cables connected from your device (IR input required) to the PT-4IREX. It features an IR receiver (3.5mm) input connector, (4) IR emitters on 3.5mm mini connectors, and it connects to single or dual IR emitter cables. This unit is powered by the included 12VDC power supply, and its ultra compact PicoTOOLS design is rackmountable with optional rack adapter. With Kramer's PT-4IREX you can finally close your entertainment doors, conceal your system components and their messy wires, and still maintain full control. - External IR Sensor Input
- Use the built-in IR sensor (3.5mm mini-jack) input for connectivity to an optional external remote IR receiver cable at distances up to approximately 100' (30 m).
- 4-IR Repeater Outputs
- With its built-in IR receiver you can easily control up to (8) IR devices at cable distances up to approximately 240' (75 m).
- Optional IR Emitter Cables
- C-A35/IRE-10 single emitter (1 included) and C-A35/2IRE-10 dual emitter cables.
- Optional IR Receiver Cables
- C-A35M/IRR-3 (1 included) and C-A35M/IRR-50 receiver cables.
- Rackmountable
- Its part of the Ultra Compact PicoTOOLS family; up to (4) units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter
- Long Distance Remote Solution
- Use the PT-4IR in high quality home cinema installations, studios, airports, offices, hospitals, security and military applications.
In the Box Kramer PT-4IREX Infrared Repeater Power Supply Emitter Control Cable (C-A35/IRE-10) External Remote IR Receiver Cable (3') 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer PT-4IREX Infrared Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PT-4IREX Specs | Type | IR Repeater | | Supports | Up to 8 IR Devices | | Input | 1x IR Receiver (eye), 1x IR Receiver (3.mm Mini-Jack) | | Output | 4x IR Emitters (3.5mm Mini-Jack) | | Range | Up to 240' (75 m) Emitter Output
Up to 100' (30 m) Receiver Input | | Compatibility | RK-4PT Rack Adapter | | Requirements | Devices with IR Input | | | | Power Requirements | 12VDC, 95mA (supplied by power supply) | | Dimensions (WxHxD) | 2.4 x 0.95 x 2.1" (60.9 x 24.1 x 52.3mm) | | Weight | 0.55 lb (0.24kg) | | Color | Black | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.3 x 5.5 x 3.9" |
