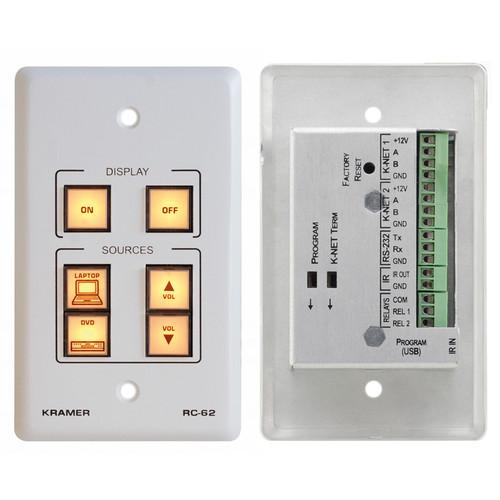

User Manual for Kramer RC-62 Room Controller with Printed Group Labels Click to enlarge the picture
Contents of the user manual for the Kramer RC-62 Room Controller with Printed
- Product category: Installation Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installation
|
User manual for the Kramer RC-62 Room Controller with Printed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics RC-62 Room Controller with Printed Group Labels (US Model) can be used to control audio components, video components, lights, and screens. It can be used standalone unit or as a part of SummitView system.With 6-progammable buttons, you can easily access any function of the controller. Using a single button, the macro function allows execution of multiple commands. Each button comes with multiple layers of commands for handling alternate behavior and toggle functionality. Built-in clock can schedule recurring tasks, and define system shutdown timer for efficient operation. The RC-62 Room Controller features 1 USB port for programming and 1 bi-directional RS-232 port for controlling audio/video equipments such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers. In addition, the controller also features 1 IR out for controlling AV equipment. With an IR learning function, it can handle commands from IR remotes. Using 2 K-NET connectors, the control panel can be connected to other control panels or a central control processor. The K-NET control channel offers control data and power to the wall plate connectors using a single cable. Featured 2 relay contact closure ports can control other room items such as drapes (adjustment), the screen, or the projector. In addition, the controller comes with a wall plate (1 gang US). - Can be used to control audio components, video components, lights, and screens
- Can be used standalone unit or as a part of SummitView system
- 6-progammable buttons allow you to access any function of the controller
- 6 programmable buttons - color, back-lit, and label capable
- Macro function allows execution of multiple commands using a single button
- Each button comes with multiple layers of commands for handling alternate behavior and toggle functionality
- Built-in clock can schedule recurring tasks and define system shutdown timer for efficient operation
- Features 1 USB port for programming and 1 bi-directional RS-232 port for controlling audio/video equipments such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
- Features 1 IR out for controlling AV equipments
- IR learning function can handle commands from IR remotes
- Can be connected to other control panels or central control processor
- K-NET control channel offers control data and power to the wall plate connectors using a single cable
- Features 2 relay contact closure ports can control other room items such as drapes (adjustment), the screen, or the projector
- Comes with a wall plate (1 gang US)
In the Box Kramer RC-62 Room Controller with Printed Group Labels (US Model) USB cable - 3' (0.9m) Screwdriver Kramer Configuration Software 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer RC-62 Room Controller with Printed Group Labels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer RC-62 Specs | Ports | 1 RS-232 on terminal block connectors; 2 K-NET on terminal block connectors; 1 USB port | | Outputs | 2 relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load); 1 IR emitter on terminal block connectors | | Power Source | 12V DC, 100mA | | Fuse | 500mA, FSMD 2920 | | Adapter | SummitView kits: 12V, 5A; independent: 12V/500mA | | Dimensions | 2.72 x 1.02 x 4.49" (6.9 x 2.6 x 11.4 cm) | | Weight | 0.31 lb (0.14 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.2 x 5.6 x 3.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
