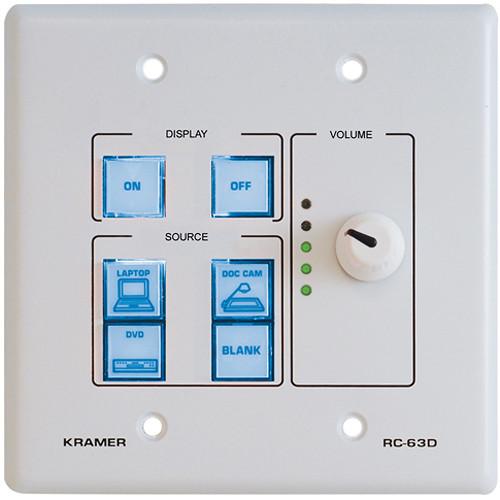

User Manual for Kramer RC-63D Room Controller with Printed Group Labels Click to enlarge the picture
Contents of the user manual for the Kramer RC-63D Room Controller with Printed
- Product category: Event Controllers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Event Controllers
|
User manual for the Kramer RC-63D Room Controller with Printed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer RC-63D Room Controller with Printed Group Labels (US Model) enables control of audio components, video components, lights, and screens. In addition, it can be used standalone unit or as a part of SummitView system.
With Digital Volume Control Knob, you can adjust volume, bass, middle, treble, and balance. Using a single button, the macro function allows execution of multiple commands. Each button comes with multiple layers of commands for handling alternate behavior, and toggle functionality.
Built-in clock can schedule recurring tasks, and define system shutdown timer for efficient operation. The RC-63D room controller features 1 USB port for programming and 1 bi-directional RS-232 port for controlling audio/video equipments such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers. In addition, it also features 1 IR output for controlling AV equipment. With an IR learning function, the controller can handle commands from IR remotes.
With the help of 2 K-NET connectors, the control panel can be connected to other control panels or a central control processor. The K-NET control channel offers control data and power to the wall plate connectors using a single cable. Featured 2 relay contact closure ports can control other room items such as drapes (adjustment), the screen or the projector. In addition, the controller comes with a wall plate (US 2 gang). - Enables control of audio components, video components, lights, and screens
- Can be used standalone unit or as a part of a SummitView system
- Can adjust volume, bass, middle, treble, and balance with the digital volume control knob
- 6 programmable buttons - color, back-lit, and label capable
- Macro function allows execution of multiple commands using a single button
- Each button comes with multiple layers of commands for handling alternate behavior and toggle functionality
- Built-in clock can schedule recurring tasks and define system shutdown timer for efficient operation
- Features 1 USB port for programming and 1 bi-directional RS-232 port for controlling audio/video equipments such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
- Features 1 IR output for controlling AV equipment
- IR learning function - can handle commands from IR remotes
- Can be connected to other control panels or central control processor
- K-NET control channel offers control data and power to the wall plate connectors using a single cable
- 2 relay contact closure ports can control other room items such as drapes (adjustment), the screen, or the projector
- Comes with a wall plate (US 2 gang)
In the Box Kramer RC-63D Room Controller with Printed Group Labels (US Model) USB Cable 3' (0.91 m) Screwdriver Kramer Configuration Software 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer RC-63D Room Controller with Printed Group Labels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer RC-63D Specs | Ports | 1 RS-232 on terminal block connectors; 2 K-NET on terminal block connectors;1 USB port | | Outputs | 2 relays on terminal block connectors (36V AC or DC, 2A, 60VAC maximum onnon-inductive load); 1 IR emitter on terminal block connectors | | Power Source | 12V DC, 140mA | | Fuse | 500mA, FSMD 2920 | | Adapter | SummitView kits: 12V, 5A; independent: 12V/500mA | | Plate Size (WxH) | US 2 gang | | Dimensions | 4.49 x 1.02 x 4.49" (11.4 x 2.6 x 11.4 cm) | | Weight | 0.31 lb (0.14 kg) |
