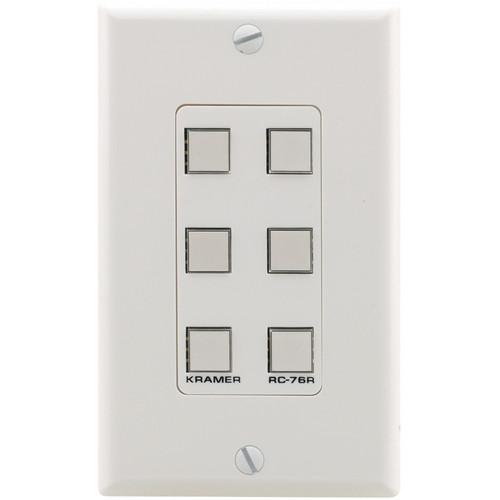

Product description The Kramer RC-76R Configurable 6-Button Wall Plate is suitable for use in a variety of room control applications. It features six LED-backlit buttons that are assigned functionality using the Kramer K-Config configuration software. Properly configured, the RC-76R can control a wide range of A/V devices including projectors, flat panel displays, power amplifiers, switchers, and scalers.
It features black and white front plates and black and white Decora frames to best match the room you will use it in. - Six Configurable Buttons
- RGB backlit, front panel buttons, that are configured using the K-Config configuration software for control over a variety of audio and video devices including projectors, TVs and displays, switchers, power amplifiers, scalers
- Serial and Ethernet Interface
- Two RS-232 connections, one RS-485 connection, and an Ethernet port together allow the RC-76R to interface with a wide range of A/V components
- Two IR Control Ports
- IR learning allows you to program commands from just about any IR remote control
- General Purpose Input/Output Port (GPI/O)
- Can be configured using K-Config software as a digital input, digital output, or analog input for interfacing with a variety of devices such as sensors, switches, LEDs, or relays
- Two Relay Contact Closure Ports
- Control AV related items such as raising/lower motorized projection screens and opening/closing motorized drapes
- Wall Plate Size
- 1 gang US, Decora compatible - suitable for installation in TBUS−1Axl
In the Box Kramer RC-76R Configurable 6-Button Wall Plate Power Supply Black Front Plate White Front Plate Back Decora Frame White Decora Frame Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer RC-76R Configurable 6-Button Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer RC-76R Specs | Input Connectors | 2x RS-232
1x RS-485
1x GPI/O on terminal block connector
1x Ethernet on RJ-45 connector
1x USB for programming | | Output Connectors | 2x IR
2x Relays - 36 VAC or DC, 2A, 60 VAC maximum on non−inductive load
1x GPI/O on terminal block connector | | Power Consumption | 12 VDC, 260 mA | | Operating Temperature | 32 - 104°F / 0 - 40°C | | Storage Temperature | -40 - 158°F / -40 - 70°C | | Humidity | 10 - 90% RHL, non-condensing | | Dimensions | 3.1 x 1.1 x 4.9" / 7.9 x 2.8 x 12.4 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.1 x 5.5 x 4.0" |
