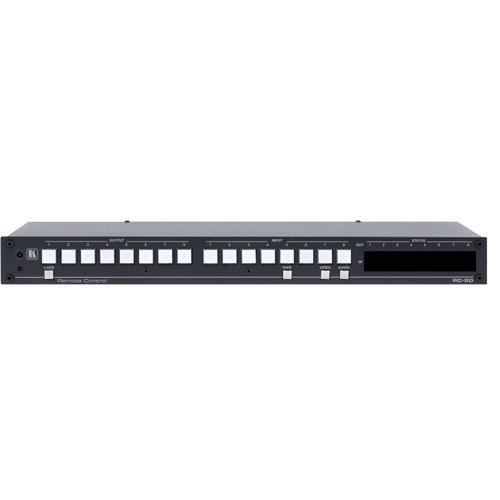

User Manual for Kramer RC-80 8x8 Master Remote Control Panel Click to enlarge the picture
Contents of the user manual for the Kramer RC-80 8x8 Master Remote Control
- Product category: Router, Switcher & Patchbay Accessories Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Router, Switcher & Patchbay Accessories
|
User manual for the Kramer RC-80 8x8 Master Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The RC-80 8x8 Master Remote Control Panel from Kramer is designed for use with switchers that use RS-232 and RS-485 interfaces. It can be used with any Kramer switcher that uses Kramer's Protocol 2000 RS-232 command setup with configurations up to 8x8 in size. - The unit's take button can be used to execute multiple switches at the same time
- A front-panel lockout feature ensures no unwanted tampering occurs
- Control options include: front panel, Ethernet, (2) RS-232 (1 input & 1 output) with K-Router Windows-based software, RS-485, and IR remote
- LEDs provide a visual indication of input/output status
- It can be used as a standalone solution or mounted in a rack using the included set of rack ears
In the Box Kramer RC-80 8x8 Master Remote Control Panel Null-Modem Adapter Windows-Based Kramer Control Software Windows-Based Configuration Manager IR Remote Control Transmitter Set of Rack Ears Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer RC-80 8x8 Master Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer RC-80 Specs | Inputs/Outputs | (2) RS-232 IN/OUT on 9-pin D-sub connectors
(1) RS-485 connector on detachable terminal blocks
(1) Ethernet CAT-5 port | | Controls | Front-panel buttons
RS-232
RS-485
Ethernet
IR
LCD contrast trimmer | | Power | 12VDC, 200mA | | Dimensions (HxWxD) | 1.75 x 19 x 7" | | Weight | 6 lbs (2.7kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 49.0 x 14.0 x 13.0" |
