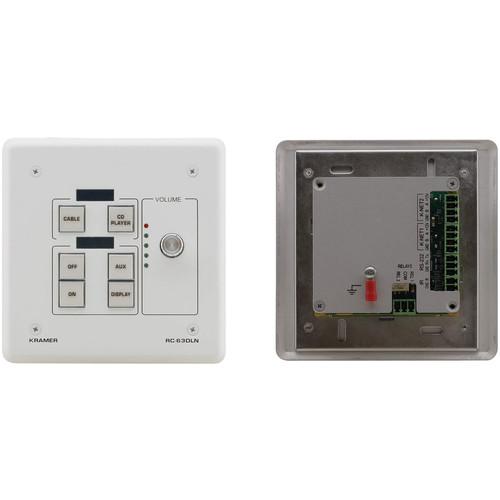

User Manual for Kramer RC63DLNG 6-Button KNET Control Keypad with Knob and Displays Click to enlarge the picture
Contents of the user manual for the Kramer RC63DLNG 6-Button KNET Control Keypad
- Product category: Switchers & Controllers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Switchers & Controllers
|
User manual for the Kramer RC63DLNG 6-Button KNET Control Keypad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The gray RC−63DLNG 6-Button KNET Control Keypad with Knob and Displays from Kramer is a master room controller and auxiliary keypad for remote keypad control when connected over KNET. It can serve as a standalone room controller or part of a multi-unit KNET system. The RC-63DLNG is suitable for classrooms and meeting rooms and offers control of multimedia devices in addition to screens and shades or other room facilities. - 6 RGB-color, tactile feedback, backlit buttons grouped in 2 groups; 4 buttons in Sources Group and 2 buttons in Display Group
- Custom labeled, removable button caps
- Bidirectional rotary dialed digital knob for volume control with 5-LED bar for visual volume level feedback
- K-NET connect to master room controller and auxiliary keypads for remote keypad control
- The K-NET single-link connection provides a single, keypad link cable-connectivity carrying both power and keypad control communication information
- The RS-232 port controls a device via serial protocols
- The IR emitter port controls a device via IR protocols
- The relay port controls a device via relay contact closure
- IR sensor learns commands from IR remotes
- Program control configuration with Kramer K-Config software
- Keypad lock-out option is for tampering prevention by locking and unlocking of the keypad buttons
- Mini-USB port uploads configuration files, sets the K-NET ID number, and powers the device during configuration
- Mounts in standard 2-gang US wall junction boxes
- Easy installation to standard in-wall boxes for simple and cost-reducing installation
In the Box Kramer RC63DLNG 6-Button KNET Control Keypad with Knob and Displays (US Version, Gray) Design Frame PSU and Power Cord Label Set Screwdriver Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer RC63DLNG 6-Button KNET Control Keypad with Knob and Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer RC-63DLN(G) Specs | Type | US version only | | Ports | 1 x RS-232 on terminal block connectors
2 x K-NET on terminal block connectors
1 x mini-USB for programming | | Output | 2 x Relays on terminal block connectors (36 VAC or DC, 2 A, 60 VAC maximum on non-inductive load)
1 x IR emitter on terminal block connectors | | Power Consumption | 12 VDC, 100 mA | | Fuse | 500 mA, FSMD 2920 | | Adapter | 12 V, 500 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 4.50 x 0.98 x 4.50" / 11.43 x 2.49 x 11.43 cm | | Weight | 0.2 lb / 0.1 kg |
