User Manual for Kramer RS-232 Port Extender Converter Click to enlarge the picture
Contents of the user manual for the Kramer RS-232 Port Extender Converter
- Product category: Accessories for Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Accessories for Converters
 |
User manual for the Kramer RS-232 Port Extender Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

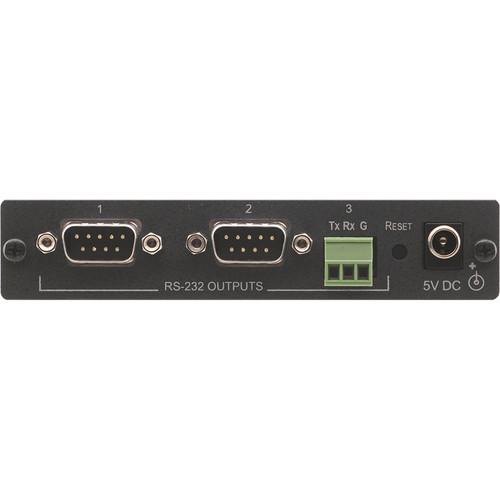

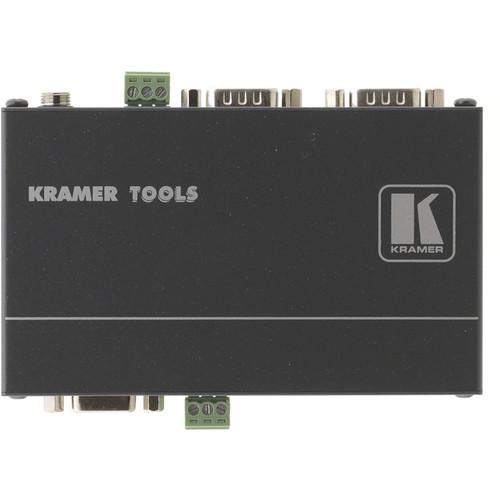

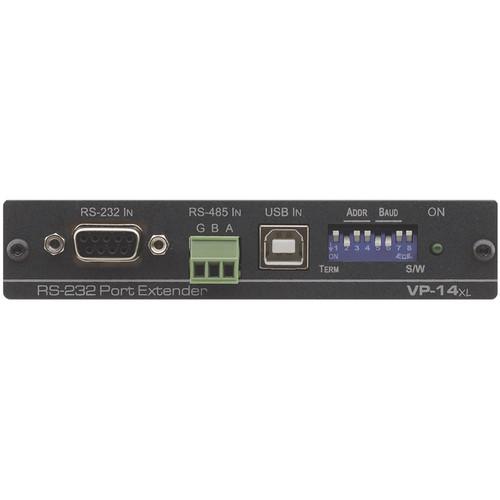

Product description The Kramer RS-232 Port Extender/Converter provides RS-232 control signals across 3 outputs (two 9-pin subs & one 3-pin terminal block). In addition to accepting RS-232 incoming signals, the extender supports RS-485 and USB command signals, and converts them to RS-232 signals before transmission. It features 2 hardware or software modes of operation. Using DIP-switches, the extender/converter provides control for selecting HW source, SW addressing, and baud rate. In addition, 3 units can be stacked together in 1U rack space using the optional RK-3T rack adaptor. - Provides RS-232 control signals across 3 outputs (two 9-pin subs & one 3-pin terminal block)
- Accepts RS-232, RS-485, and USB command signals
- Converts RS-485 and USB signals to RS-232 signals before transmission
- Hardware or software mode of operation
- Provides control for selecting HW source, SW addressing, and baud rate
- 3 units can be stacked together in 1U rack space using the optional RK-3T rack adaptor
In the Box Kramer RS-232 Port Extender/Converter Power Supply Mounting Bracket Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer RS-232 Port Extender Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-14XL Specs | Input | 1 RS-232 on 9-pin D-sub (F) connector
1 RS-485 on 3-pin removable terminal block
1 USB type B connector | | Output | 2 RS-232 on 9-pin D-sub (M) connectors, 1 RS-232 on 3-pin removable terminal block | | Baud Rate | 1200 to 115200bps | | Operating Modes | Hardware and software | | USB Connector | 1.1 | | Controls | DIP-switches | | Power Source | 5V DC, 130mA | | Dimensions (WxDxH) | 4.72 x 2.72 x 0.96" (12 x 6.9 x 2.44 cm) | | Weight | 0.67 lb (0.3 kg) |
