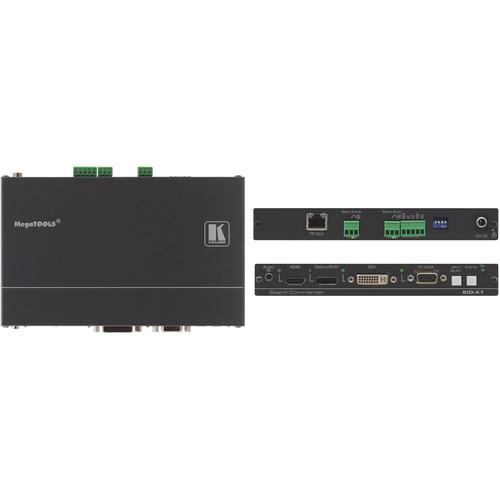

User Manual for Kramer SID-X1N 4-Input Multi-Format Video over DGKat Transmitter & Step-In Commander Click to enlarge the picture
Contents of the user manual for the Kramer SID-X1N 4-Input Multi-Format Video over
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer SID-X1N 4-Input Multi-Format Video over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The SID-X1N 4-Input Multi-Format Video over DGKat Transmitter & Step-In Commander from Kramer transmits computer graphics video, HDMI, DVI, DisplayPort, and unbalanced stereo audio signals over a shielded twisted pair cable (not included). This transmitter includes a "step-in" button that allows the local source to be routed as the active source on the main display through the main switcher. The SID-X1N uses the Power Connect system to remotely power the receiver when the devices are within 150' of each other. - Supports x.v. Color, and 3D HDMI
- Data equalization and reclocking
- Intelligent EDID handling & processing algorithm ensures plug and play operation for HDMI systems
- Input signal detection based on video clock presence
- Automatic input selection based on manual selection or last connected input
- Automatic analog audio detection and embedding
- Local balanced audio de-embedding
- Supports digital audio formats
- Two MegaTOOLS units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter
- For use in boardrooms, presentation rooms, and more
In the Box Kramer SID-X1N 4-Input Multi-Format Video over DGKat Transmitter & Step-In Commander Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer SID-X1N 4-Input Multi-Format Video over DGKat Transmitter & Step-In Commander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer SID-X1N Specs | Compatibility | VP−81SIDN Switcher | | Inputs | 1 x HDMI
1 x DVI-I, DVI-D
1 x DisplayPort
1 x 15-pin HD, VGA
1 x 3.5 mm mini stereo unbalanced audio jack | | Outputs | 1 x RJ-45, DGKat
1 x 3.5 mm mini stereo unbalanced audio jack | | Supported Standards | HDMI with x.v. Color, 3D
HDCP (works with sources that support HDCP repeater mode) | | Maximum Data Rate | 4.95 Gbps (1.65 Gbps per graphics channel) | | Transmission Range | 164' (50 m) up to 1080p @ 60 Hz | | Maximum Video Resolution | WUXGA | | Input Voltage | 12 VDC | | Power Consumption | 950 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90% RH non-condensing | | Dimensions | 7.4 x 4.5 x 1.0" (18.8 x 11.3 x 2.5 cm) | | Weight | Approx. 1.1 lb (0.48 kg) | | | | Box Dimensions (LxWxH) | 18.75 x 11.5 x 2.54" |
