User Manual for Kramer SL-10 Master Room Controller Click to enlarge the picture
Contents of the user manual for the Kramer SL-10 Master Room Controller
- Product category: Event Controllers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Event Controllers
 |
User manual for the Kramer SL-10 Master Room Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics SL-10 Master Room Controller controls audio components, video components, and other room facilities such as lights and screens. - Two general purpose Input / Output ports can be configured as analog inputs, digital inputs, or digital outputs for interfacing with a variety of devices such as sensors, switches, LEDs, and relays
- Two bidirectional RS-232 ports control AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
- Five relay contact closure ports conveniently control other room items related to the AV system such as raising and lowering drapes, the screen or the projector.
- IR control 1 input (3.5mm) & 3 outputs (terminal blocks)
- IR learning function can learn commands from any IR remote for customized control of external sources.
- Kramer Site-CTRL compatible for network remote control and management using Kramer Site−CTRL software over the Ethernet port
- K-NET control channel for connecting compatible user interfaces and supplying power and control data over a single cable
- USB port for uploading configuration file

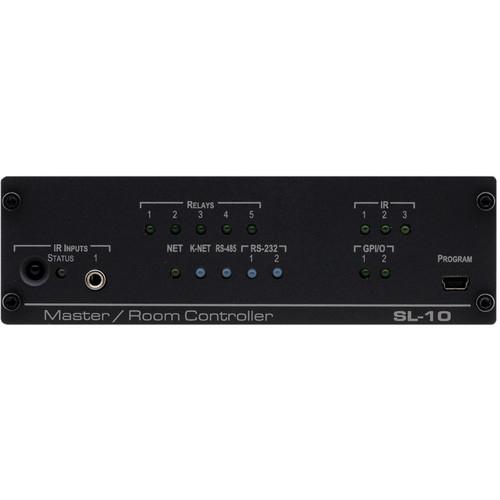

- Status LEDs featuring 5 relay, 4 IR, 2 general purposes
- Ethernet, K−NET, RS−485, and RS−232

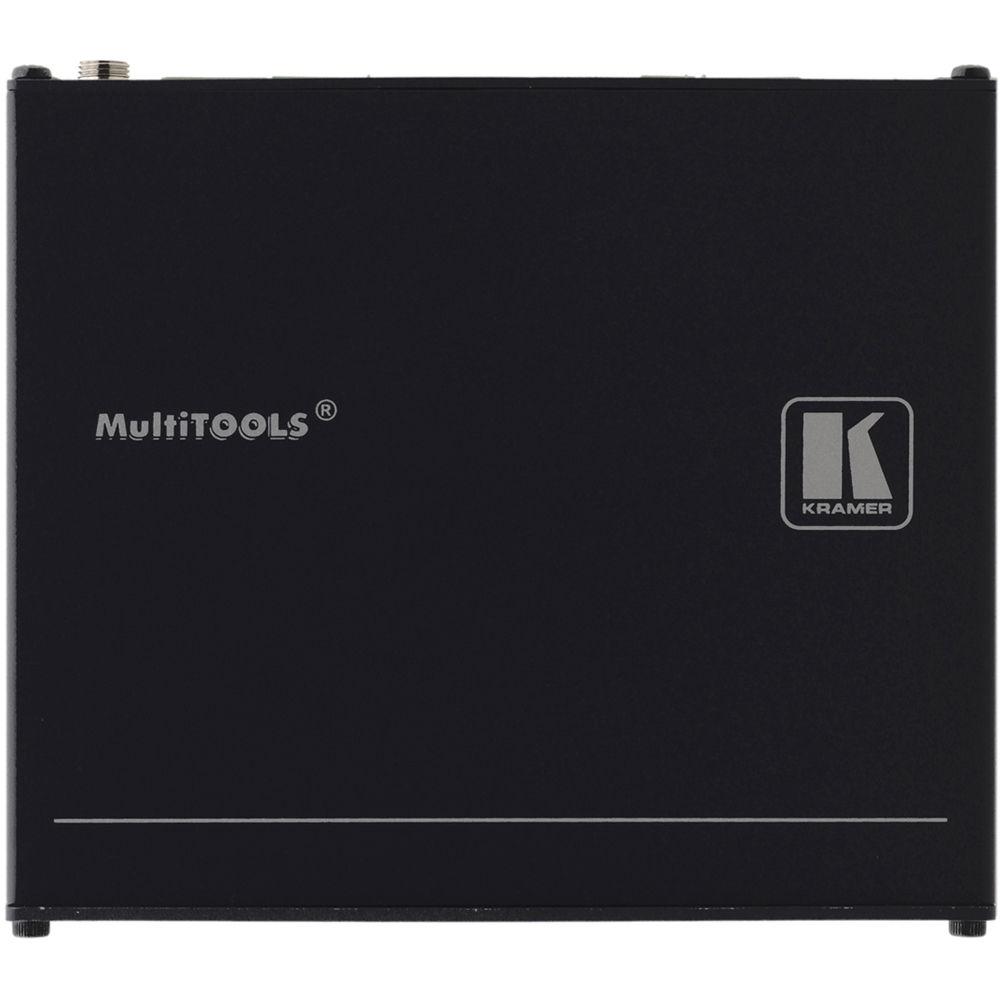

- Compact MultiTOOLS 3 units can be rack mounted side−by−side in a 1U rack space with the RK−13 Universal Rack Adapter (sold separately).
In the Box Kramer SL-10 Master Room Controller Power Supply Screwdriver Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer SL-10 Master Room Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

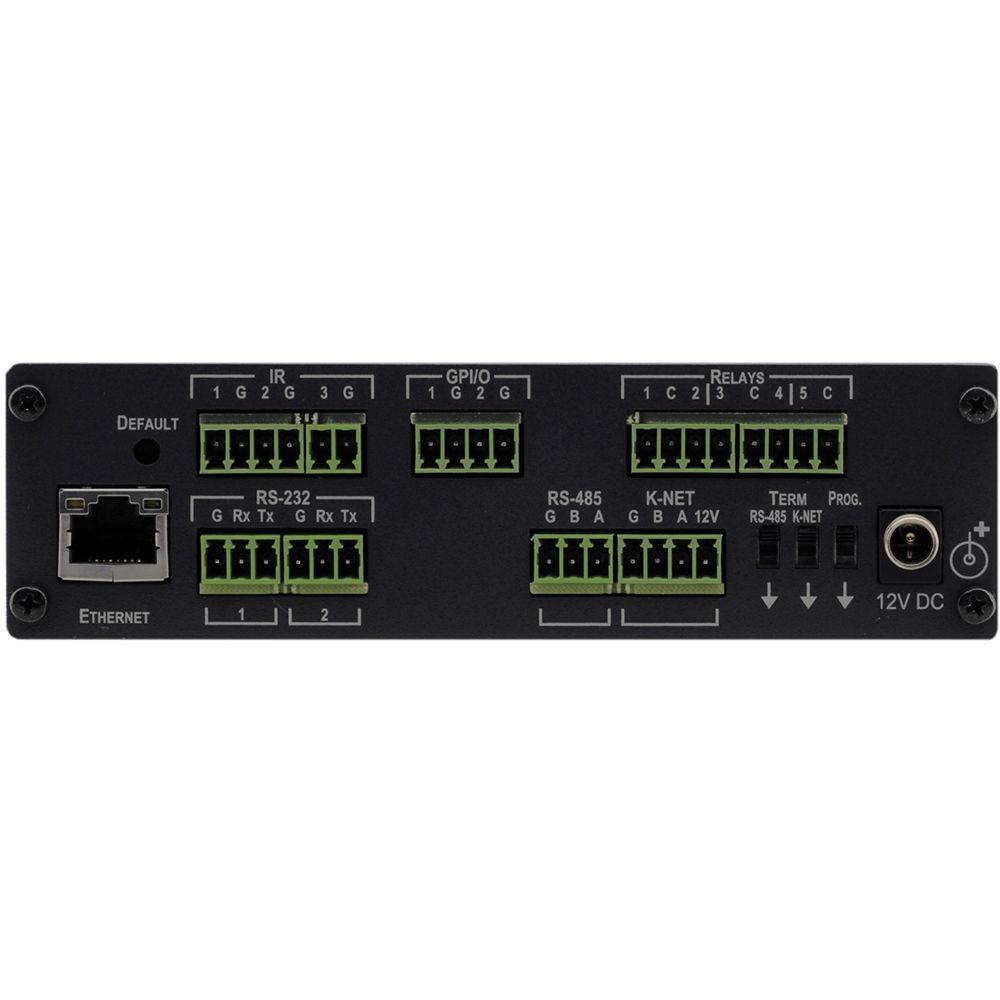

Technical parametersKramer SL-10 Specs | Ports | 2 RS−232, RS−485, 2 general purpose Input / Output and K−NET on terminal block connectors; 1 Ethernet on an RJ−45 connector; 1 infrared sensor, 1 infrared on a 3.5 mm mini jack; 1 USB for programming. | | Output | 3 infrared, 5 relays (36 VAC or VDC, 2 A, 60 VAC maximum on non−inductive load) | | IP | Default Settings: IP number 192.168.1.39; Mask 255.255.0.0; Gateway 0.0.0.0. | | Indicators | LED indicator for each function | | Power Consumption | 12 VDC, 2 A (from power supply) or 12 VDC over K−NET connection | | Dimensions (W x D x H) | 5.6 x 4.8 x 1.7" (14.3 x 12.2 x 4.4 cm) | | Weight | 1.4 lb (0.6 kg) |
