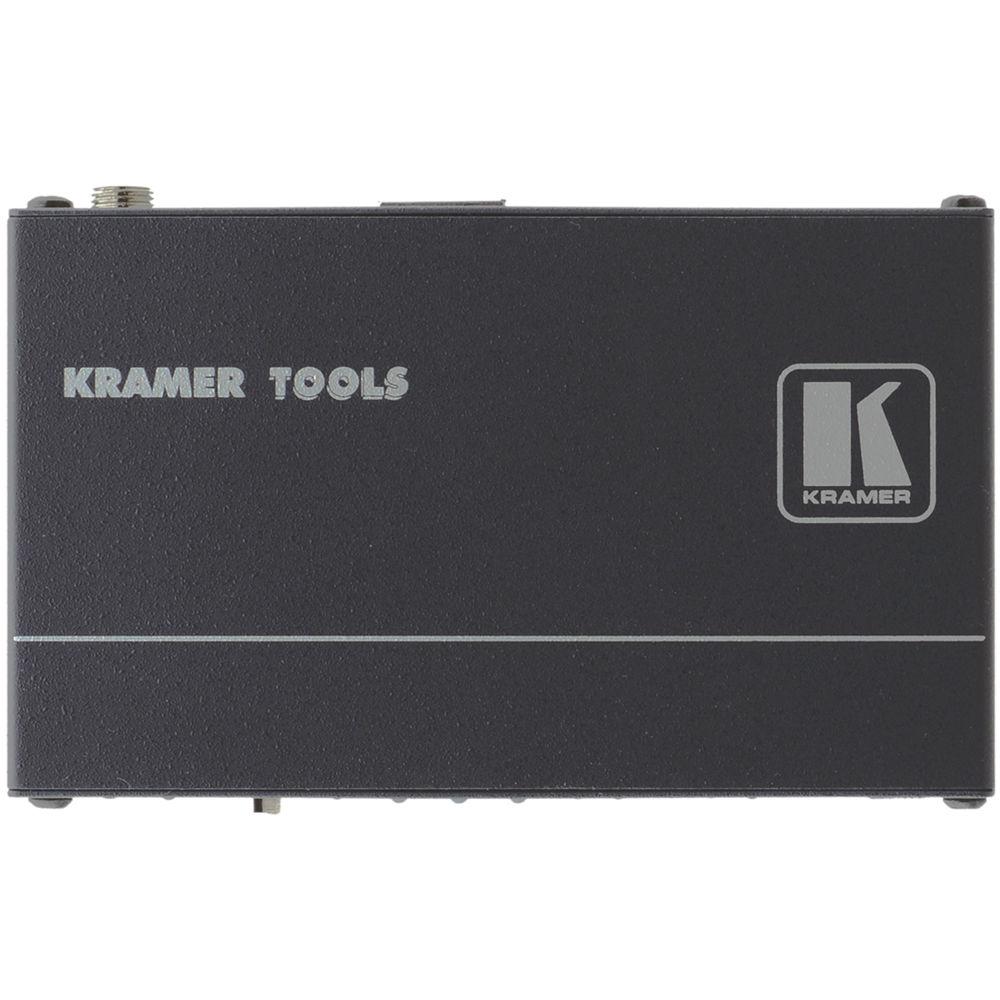

User Manual for Kramer SL-1N Master Room Controller Click to enlarge the picture
Contents of the user manual for the Kramer SL-1N Master Room Controller
- Product category: Installation Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installation
 |
User manual for the Kramer SL-1N Master Room Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The SL-1N Master Room Controller from Kramer is a master room controller that facilitates control of audio components, video components, lights, and screens. Three relay contact closure ports can control other room items such as drapes (adjustment), the screen, or the projector, while 2 bi-directional RS-232 ports can control audio/video equipment such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers. The SL-1N also features a USB port for file upload, and an IR control (1 input, 2 outputs) for controlling AV equipment. With an IR learning function, the controller can handle commands from IR remotes. The K-NET control channel allows you to connect compatible user interfaces to the controller. It offers control data and power to the wall plate connectors using a single cable.
Using the Site-CTRL software, the SL-1N Room Controller can be remotely controlled and managed over a network via an Ethernet port. Featuring Ethernet, K-NET, IR sensor, and external IR commands, the room controller offers flexibility. With the help of an optional RK-3T rack adapter, up to 3 room controllers can be mounted side-by-side in a 1U rack space. - Facilitates control of audio components, video components, lights, and screens
- Three relay contact closure ports can control other room items such as drapes (adjustment), the screen, or the projector
- USB port for file upload and 2 bi-directional RS-232 ports for controlling audio/video equipments such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
- IR control (1 input, 2 outputs) for controlling AV equipment
- IR learning function can handle commands from IR remotes
- K-NET control channel allows you to connect compatible user interfaces to the controller
- Control channel offers control data and power to the wall plate connectors using a single cable
- Uses the Site-CTRL software
- Can be remotely controlled and managed over a network via the ethernet port
- Ethernet, K-NET, IR sensor, and external IR commands
- Up to 3 room controllers can be mounted side-by-side in a 1U rack space using an optional RK-3T rack adapter
In the Box Kramer SL-1N Master Room Controller RC-IR3 Infrared Remote Controller eqqduyatrsswwbfacwszacxysduybvwxbwz 4 x Rubber Feet Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer SL-1N Master Room Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

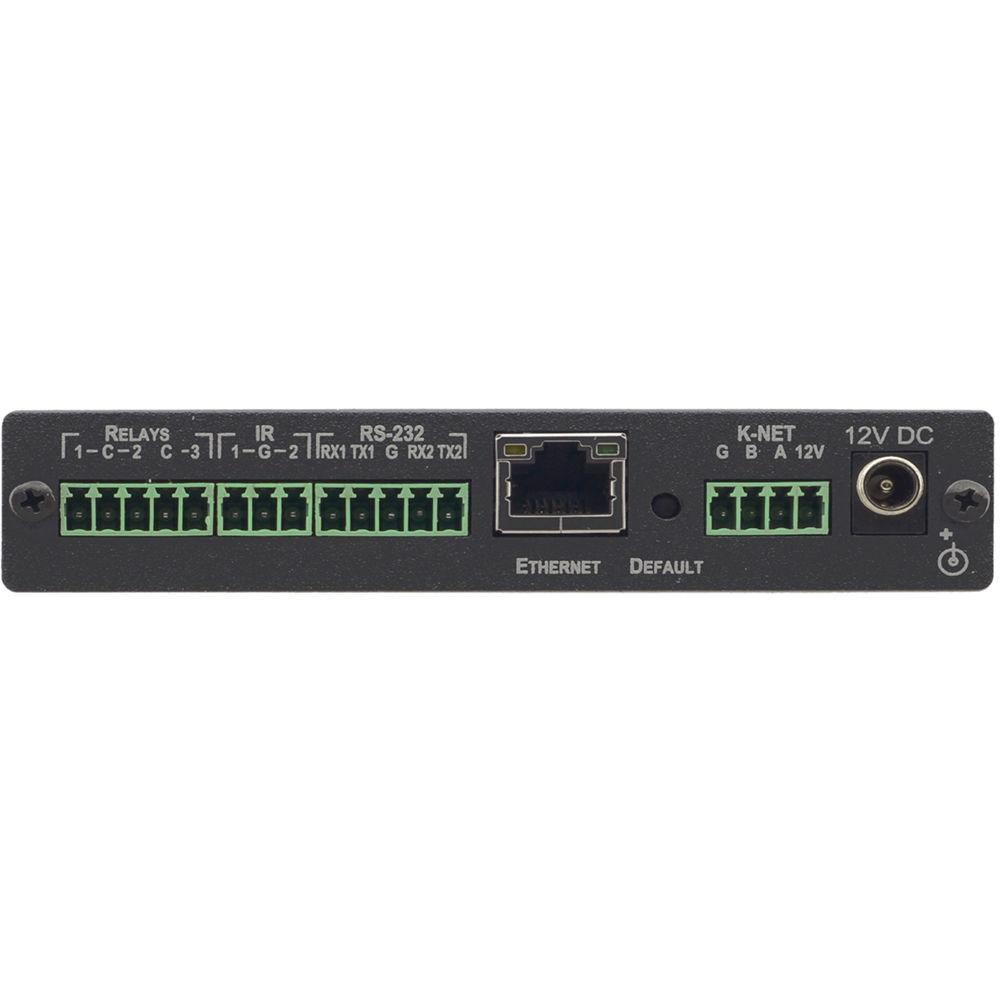

Technical parametersKramer SL-1N Specs | Inputs | 2 x RS-232 on terminal block connector
1 x K-NET on terminal block connector
1 x RJ45, Ethernet
1 x 1/8" (3.5 mm) mini phone jack, infrared
1 x USB, file upload port | | Outputs | 2 x infrared on terminal block connector
3 x relays on terminal block connector (36 VAC or DC, 2A, 60 VAC maximum on non-inductive load) | | Indicators | LED indicator for each function | | Sensor | 1 x IR | | Temperature | Operating: 32° to 104°F (0° to 40°C)
Storage: -40° to 158°F (-40° to 70°C) | | Humidity | 10 - 90%, RHL non-condensing | | Power Consumption | 12 VDC, 2A from power supply, or 12 VDC over K-NET connection | | Dimensions | 4.7 x 2.8 x 1.0" (12 x 7.2 x 2.4 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 7.15 x 2.44" |
