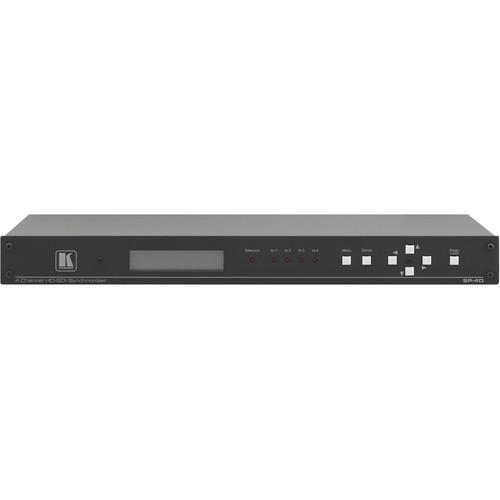

User Manual for Kramer SP-4D 4-Channel Synchronizer Click to enlarge the picture
Contents of the user manual for the Kramer SP-4D 4-Channel Synchronizer
- Product category: Video & Audio Signal Generators Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video & Audio Signal Generators
|
User manual for the Kramer SP-4D 4-Channel Synchronizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer SP-4D 4-Channel Synchronizer is used for serial digital signals up to HD-SDI. The unit synchronizes up to 4 channels from the dedicated genlock input or any other specified channel. - Multi-Standard Operation
- SDI (SMPTE 259M and SMPTE 344M) & HD-SDI (SMPTE 292M)
- Inputs
- SD, ED, and all HD (up to 1080i/60 and 1080p/30) with automatic standard detection
- Frame Rate Conversion
- Does not change video resolution
- Genlock
- 1 dedicated SDI genlock input with an active loop output common to all 4 channels or taken from any specific channel
- Audio Embedder / De-Embedder
- Handles 16 audio channels per input
- Flexible Control Options
- Front panel buttons & RS-232 (K-Router Windows-based software is included)
- Indicators
- 40-character LCD display, signal and genlock loss LEDs, worldwide power supply from 100 to 240 VAC
In the Box Kramer SP-4D 4-Channel Synchronizer K-Router Windows-Based Control Software 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer SP-4D 4-Channel Synchronizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer SP-4D Specs | Input | 4 SD / HD-SDI, 1 genlock 75 Ω on BNC connectors | | Outputs | 4 SD / HD-SDI, 1 genlock 75 Ω on BNC connectors, 1 VGA / UXGA port on a 15-pin HD connector(YUV / RGB selectable); stereo audio on 2 RCA connectors | | Controls | 7 front panel buttons, RS-232 | | Indicators | LCD display, 5 input and genlock LEDs | | Power Consumption | 220 VAC, 27 VA | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -49 to 162°F (-45 to 72°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (WxDxH) | 19 x 7 x 1" (48.26 x 17.78 x 2.54 cm) | | Weight | Approximately 4 lb (1.81 kg) |
