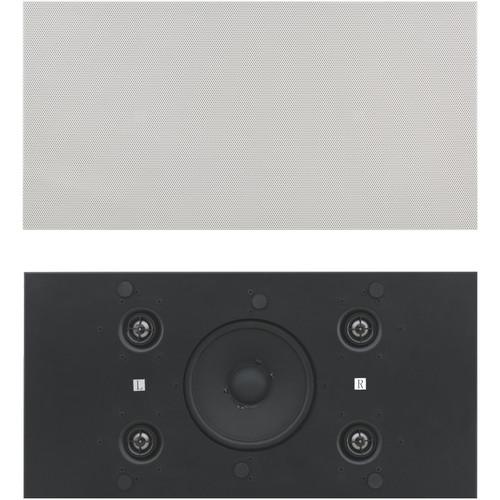

User Manual for Kramer SPK-C816 Complete K-overage ESD Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Kramer SPK-C816 Complete K-overage ESD Ceiling
- Product category: In-Ceiling Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer In-Ceiling Speakers
|
User manual for the Kramer SPK-C816 Complete K-overage ESD Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The SPK-C816 Complete K-overage ESD Ceiling Speaker (Full-Tile Stereo) from Kramer Electronics is designed to be mounted on the ceiling, where it will appear as a suspended ceiling tile. Once mounted, this stereo speaker delivers exceptional overhead audio across a wide range of frequencies. Designed for educational environments, this speaker is ideal for use in university lecture halls, classrooms, presentation venues, and anywhere else effective voice distribution is needed.
The Kramer Complete K-overage ESD Ceiling Speaker is constructed with a central driver and four pivoting tweeters and is housed in an enclosed shallow (4" depth) enclosure. This high performance loudspeaker affords superior sound response in a suspended ceiling device for educational markets. This means you get the sound you need but with a reduced number of speakers. Another feature of the educational models is a bass port for bass reflex effect. - For Educational Applications
- This speaker is ideal for university lecture halls, classroom, and presentation venues where voice distribution is needed
- 2-Way Stereo Speaker
- The two-way design incorporates an 8" paper cone with rubber surround and four pivoting 1" titanium dome tweeters
- Mounts on Ceiling
- This speaker is designed to be mounted on the ceiling for a very discreet presence, and is the size of a full tile. It has a shallow depth of 4-inches
- Complete K-overage ESD
- Patent pending design with four pivoting tweeters that direct the sound based on the room environment for equal sound dispersion (ESD). This speaker features a wide 180-degree sound dispersion
- Wide Frequency Response
- This speaker is able to reproduce a wide range of frequencies from 150 Hz to 20 kHz (nominal) and 100 Hz - 20 kHz (max)
- Optimized for Voice
- The excellent bass response of this speaker is optimized for high-quality voice reproduction
- Bass Reflex Port
- All educational models have a bass port to provide a bass reflex effect during playback
In the Box Kramer SPK-C816 Complete K-overage ESD Ceiling Speaker (Full-Tile Stereo) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer SPK-C816 Complete K-overage ESD Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer SPK-C816 Specs | Input Power | 40W RMS
Maximum 80W
Continuous load 40W (24 hr) | | Nominal Sensitivity | 90 dB SPL @1m | | Crossover Frequency | 2 kHz | | Frequency Response | Nominal: 150 Hz - 20 kHz
Max: 100 Hz - 20 kHz | | Speaker Type | 2-way bass reflex closed ceiling speaker | | Woofer | 8" (203 mm) paper cone with rubber surround | | Tweeter | 4 x 1" (25 mm) titanium dome pivoting tweeters (2 left and 2 right) | | Impedance | Woofer: 8 ohms
Tweeter: 6 ohms | | RoHS Compliant | Yes | | Dimensions | 24.0 x 24.0 x 3.9" (60 x 60 x 10 cm) (approximate) | | Weight | 14.3 lb (6.5 kg) (approximate) |
