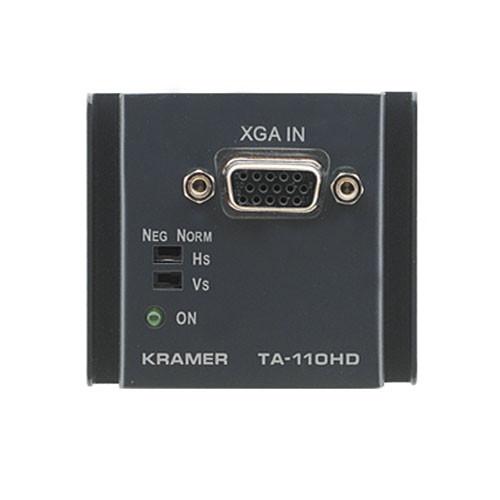

User Manual for Kramer TA-110HD Computer Graphics Video Line Transmitter Click to enlarge the picture
Contents of the user manual for the Kramer TA-110HD Computer Graphics Video Line
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer TA-110HD Computer Graphics Video Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The TA-110HD Computer Graphics Video Line Transmitter from Comprehensive/Kramer is a twisted-pair transmitter designed for use with computer graphics video signals sent to PT-120 or TP-120 receivers. This is a modular unit designed for installation in the TC-PTP01-B PowerTower. It is ideally suited for use in presentation & multimedia applications, long-range graphics distribution, and other similar uses.
This unit supports resolutions up to UXGA. Other features include horizontal and vertical polarity selection. It also includes Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must have Power Connect to use this feature). Note: This unit must be paired with a PT-120 or TP-120 transmitter unit in order to achieve a complete solution. - Transmitter
- Use this transmitter to send computer graphics signals over twisted-pair cabling.
- Resolution
- This unit will support resolutions up to UXGA.
- Polarity
- The transmitter features horizontal and vertical polarity selection.
- Power Connect
- It features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units.
In the Box Kramer TA-110HD Computer Graphics Video Line Transmitter Transmitter Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TA-110HD Computer Graphics Video Line Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TA-110HD Specs | | | Ports | Transmitter:
1 x RJ45 Ethernet (Output)
10 x HD15 VGA (Input) | | Supported Resolutions | 1600 x 1200 | | | | Signal-to-Noise Ratio | 69 dB | | | | DC Input Power | 12 VDC at 0.06 A | | | | Material of Construction | Metal | | Dimensions | 1.7 x 2.2 x 2.0" / 5.7 x 5.0 x 4.3 cm | | Weight | 0.3 lb / 0.1 kg |
