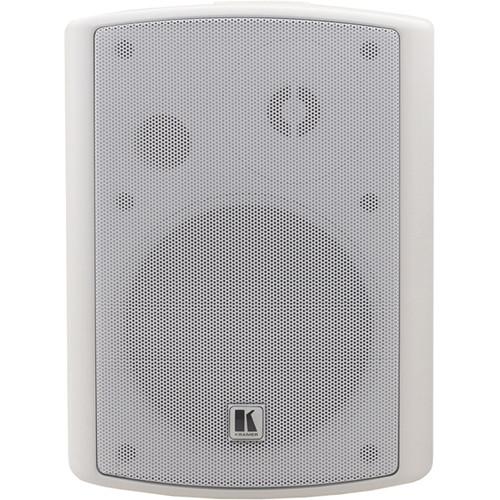

User Manual for Kramer Tavor 5−O 5.25" Two-Way, On-Wall Powered Speakers Click to enlarge the picture
Contents of the user manual for the Kramer Tavor 5−O 5.25" Two-Way, On-Wall
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
|
User manual for the Kramer Tavor 5−O 5.25" Two-Way, On-Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The set of black Tavor 5−O 5.25" Two-Way On-Wall Powered Speakers from Kramer is comprised of two speakers, one housing the 2 x 30 W RMS amplifier and one unamplified speaker. The active loudspeaker contains the volume, treble and bass controls for the system and accepts a line−level stereo input. That speaker cabinet outputs an amplified signal to the passive speaker. Each 5-O cabinet includes a 5.25" polypropylene rubber edge woofer, which is complimented by the 0.5" Mylar dome tweeter. The system has a frequency response of 45 Hz to 20,000 cycles.
The speakers are magnetically shielded and utilize an enhanced bass reflex cabinet structure. The Tavor 5-O amplifier features auto-power shut-off circuitry and shuts the system down when it is not in use, as well as an automatic input voltage selector for 90 to 240V AC, 50 to 60Hz electricity usage.The set is designed for indoor wall mounting. - Active loudspeaker - stereo 2 x 30 W RMS, 2 x 80 W continuous program amplifier and volume control
- Audio level controls - volume, treble and bass
- Auto Power - Shuts off when system is not in use, indicated by a LED
- Automatic input voltage selector - 90 to 240 V AC, 50 to 60 Hz
- Suitable for: home theater, conference rooms, boardrooms, classrooms, presentation venues
In the Box Kramer Tavor 5−O 5.25" Two-Way, On-Wall Powered Speakers (Speaker Set, Black) Pair U-Shaped Rotating Mounting Brackets 4 x Mounting Knobs Power Cord, 13.1' (4 m ) Speaker Cable RCA Splitter Cable, 2-RCA to 1/8"(3.5 mm), 6.6' (2 m) Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Tavor 5−O 5.25" Two-Way, On-Wall Powered Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Tavor 5−O 5.25" Two-Way, On-Wall Powered Speakers can be downloaded in PDF format at the link stated below.
Technical parametersKramer TAVOR 5-O(B) Specs | Description | 2−Way powered speakers | | Built-in Amplifier | 2 x 30 W RMS, 2 x 80 W continuous program | | Frequency Response | 75 Hz to 20 kHz @−10 dB, 100 Hz to 20 kHz @±3 dB | | Woofer | 5.25" (13.3 CM) polypropylene cone with rubber edge woofer | | Tweeter | 0.5" (1.3 CM) Mylar dome tweeter | | Sensitivity | 85 dB SPL, 1 W @ 1 m | | Maximum SPL | Continuous: 105 dB, peak: 110 dB | | Power Source | Variable: 90 to 240 V AC, 50/60 Hz | | Crossover Frequency | 8 kHz | | Directivity Factor | 5.8 averaged 1 kHz to 10 kHz | | Directivity Index | 7.6 dB averaged 1 kHz to 10 kHz | | Input Connectors | Line level unbalanced stereo audio on a 1/8" (3.5 mm) mini jack
Line level balanced stereo audio on a terminal block connector
Line level unbalanced stereo audio on left and right RCA connectors | | Output Connectors | Speaker (to connect to the external passive speaker)
1/8" (3.5mm) mini jack lineout for optional sub−woofer
1/8" (3.5mm) mini jack loop output | | Damping Factor (8 Ω) | >100 @ 400 Hz | | S/N Ratio | >83 dB | | THD | <0.2% | | Controls | Volume, bass and treble | | Standby Power Consumption | 0.7 W | | Input Signal Detection Threshold | +8 mV to +11 mV | | Material of Construction | Aluminum grill, steel brackets, ABS cabinet | | Installation Clearance | Front panel to wall (with mounting bracket): 8.7" (22 cm)
Back panel to wall (with mounting bracket): 1.8"(4.5 cm) | | Dimensions (W x D x H) | 7.2 x 6.7 x 9.6" (18.3 x 17 x 24.4 cm)
7.2 x 6.8 x 10.4" (18.3 x 17.2 x 26.5 cm) with mounting bracket | | Weight (Approximate) | Active speaker: 5.95 lb (2.7 kg)
Passive Speaker: 4.85 lb (2.2 kg)
Total: 10.8 lb (4.9 kg)
With Mounting Kit
Active Speaker: 6.83 lb (3.1 kg)
Passive Speaker: 5.73 lb (2.6 kg)
Total: 12.56 lb (5.7 kg) |
